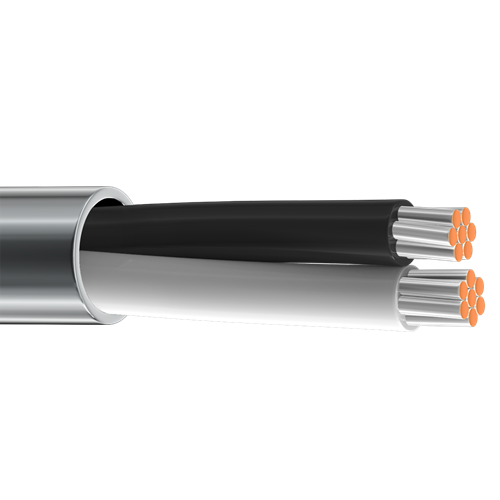

Description:
• 18 AWG stranded (7x26) tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.

Insulation:
• Material: PVC - Polyvinyl Chloride
• Wall Thickness (mm): 0.5588

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.686

Pair Lay Length and Direction:
• Lay Length (mm): 50.800
• Twists (twist/m): 19.686 (Left Hand Direction)

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +80°C
• Bulk Cable Weight: 35.717 Kg/Km
• Max. Recommended Pulling Tension: 200.169 N
• Min. Bend Radius/Minor Axis: 63.500 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL3, CMG
• NEC Articles: 800, 725
• CEC/C(UL) Specification: CMG
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 72.182
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 19.2267
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 4.8 Amps/Conductor @ 20°C ambient (10C Temp. Rise)

Flame Test:
• UL Flame Test: UL1685 FT4 Loading
• CSA Flame Test: FT4

Suitability:
• Suitability - Indoor: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): No
