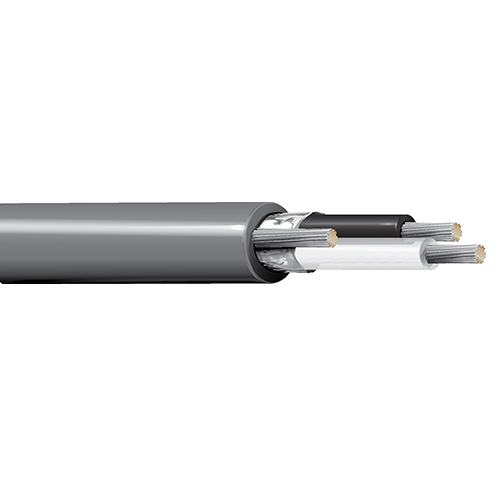

Description:
• 12 AWG stranded (19x25) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 14 AWG stranded TC drain wire, PVC jacket.

Insulation:
• Material: PE - Polyethylene
• Wall Thickness (mm): 0.9398

Outer Shield Drain Wire AWG:
• AWG: 14
• Stranding: Stranded
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.8636

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +80°C
• UL Temperature Rating: 80°C (UL AWM Style 20253)
• Bulk Cable Weight: 89 lbs/1000 ft.
• Max. Recommended Pulling Tension: 225 lbs.
• Min. Bend Radius/Minor Axis: 4 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL2
• AWM Specification: UL Style 20253 (600 V 80°C)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: AWM II A

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 55
• Nom. Inductance (μH/ft): 0.2
• Nom. Capacitance Conductor to Conductor (pF/ft): 25
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 49
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 1.6
• Max. Operating Voltage - UL: 600 V RMS (UL AWM)
• Max. Operating Voltage - UL: 300 V RMS (CSA AWM)
• Max. Recommended Current: 12.5 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: UL1685 UL Loading
• CSA Flame Test: FT1

Plenum/Non-Plenum:
• Plenum (Y/N): No
