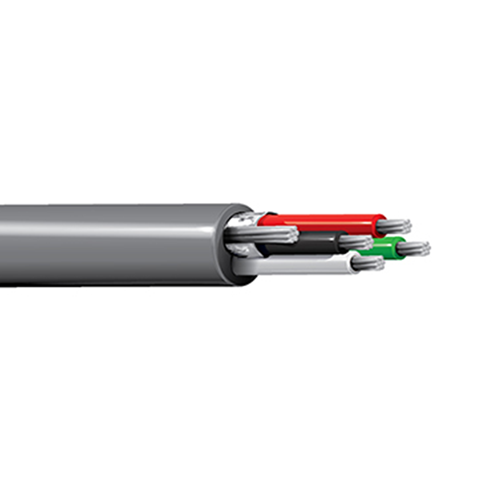

Description:
• 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, one pair Beldfoil® shielded (100% coverage), stranded tinned copper drain wire, PVC jacket.

Insulation:
• Material: PP - Polypropylene
• Wall Thickness (mm): 1.1684

Inner Shield Drain Wire AWG:
• AWG: 24
• Stranding: 7x32
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.4826

Mechanical Charactertistics (Overall):
• UL Temperature Rating: 60°C
• Non-UL Temperature Rating: 80°C
• Bulk Cable Weight: 20 lbs/1000 ft.
• Max. Recommended Pulling Tension: 36.400 lbs.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• CEC/C(UL) Specification: CM

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 48
• Nom. Inductance (μH/ft): 0.17
• Nominal Velocity of Propagation (VP %): 67
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 17 Ohm/1000 ft
