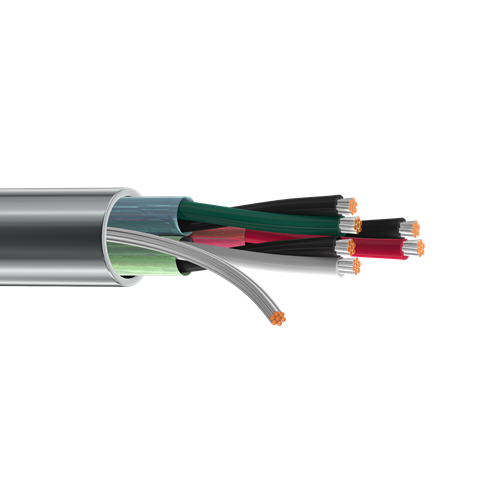

Description:
• 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs individually Beldfoil® Shielded (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:
• Material: PP - Polypropylene
• Wall Thickness (mm): 0.2794

Inner Shield:
• Trade Name: Beldfoil®
• Type: Tape
• Material: Aluminum-Polyester

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.8636

Mechanical Charactertistics (Overall):
• Storage Temperature Range: -40°C To +80°C
• Operating Temperature Range: -20°C To +80°C
• Bulk Cable Weight: 39 lbs/1000 ft.
• Max. Recommended Pulling Tension: 79 lbs.
• Min. Bend Radius/Minor Axis: 2.750 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CM
• NEC Articles: 800
• CEC/C(UL) Specification: CM
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/ft): 30
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 55
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 15.0
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 10.600 Ohm/1000 ft
• Max. Operating Voltage - UL: 300 V RMS (Listed type CM)
• Max. Operating Voltage - UL: 30 V RMS (AWM 2919)
• Max. Recommended Current: 2 Amps/Conductor @ 25°C ambient (10C Temp. Rise)

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Plenum Number: 88777, 87777, 82777
