Description:

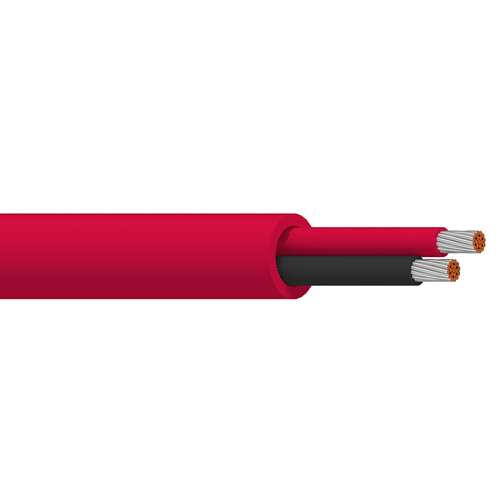

• 18 AWG stranded (19x30) tinned copper conductors, plenum, FEP insulation, twisted pair, FEP jacket.

Insulation:
• Material: FEP - Fluorinated Ethylene Propylene
• Wall Thickness (mm): 0.178

Outer Jacket:
• Trade Name: Teflon®
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Wall Thickness (mm): 0.229

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -70°C To +200°C
• Bulk Cable Weight: 15 lbs/1000 ft.
• Max. Recommended Pulling Tension: 49 lbs.
• Min. Bend Radius/Minor Axis: 1.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL3, CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 72
• Nom. Inductance (μH/ft): 0.14
• Nom. Capacitance Conductor to Conductor (pF/ft): 20
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 5.5
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 5.4 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: NFPA 262
• CSA Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 9740
