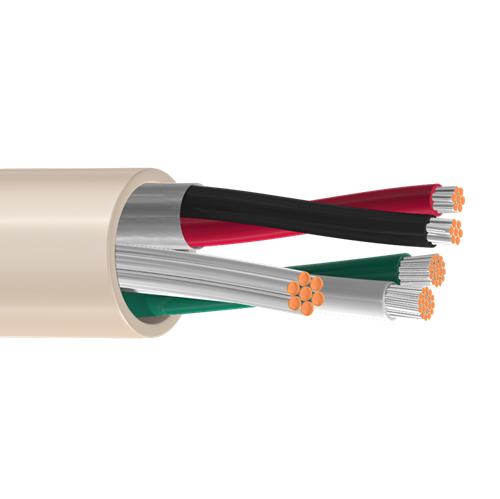

Description:
• 20 and 18 AWG stranded (7x28 and 16x30) TC conductors, polyethylene insulation, Beldfoil® shield (100% coverage) over 20 AWG pair, 22 AWG stranded TC drain wire, PVC jacket.

Insulation:
• Material: PE - Polyethylene
• Wall Thickness (mm): 0.508

Inner Shield:
• Trade Name: Beldfoil® (Z-Fold®)
• Type: Tape
• Material: Aluminum Foil-Polyester Tape

Inner Shield Drain Wire AWG:
• AWG: 22
• Stranding: 7x30
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Wall Thickness (mm): 0.7874

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +60°C
• UL Temperature Rating: 60°C (UL AWM Style 2094)
• Bulk Cable Weight: 66.969 Kg/Km
• Max. Recommended Pulling Tension: 309.595 N
• Min. Bend Radius/Minor Axis: 69.850 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CM
• NEC Articles: 800
• CEC/C(UL) Specification: CM
• AWM Specification: UL Style 2094 (300 V 60°C)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 66
• Nom. Inductance (μH/m): 0.639795 (20 AWG)
• Nom. Inductance (μH/m): 0.567613 (18 AWG)
• Nom. Capacitance Conductor to Conductor (pF/m): 78.744 (20 AWG)
• Nom. Capacitance Conductor to Conductor (pF/m): 72.182 (18 AWG)
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 150.926
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 34.4505 (20 AWG)
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 21.6546 (18 AWG)
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 37.732 Ohm/km
• Max. Operating Voltage - UL: 300 V RMS (UL AWM Style 2094)
• Max. Recommended Current: 7 Amps/Conductor @ 25°C (20 AWG)
• Max. Recommended Current: 9 Amps/Conductor @ 25°C (18 AWG)

Flame Test:
• UL Flame Test: UL1685 UL Loading

Plenum/Non-Plenum:
• Plenum (Y/N): No
