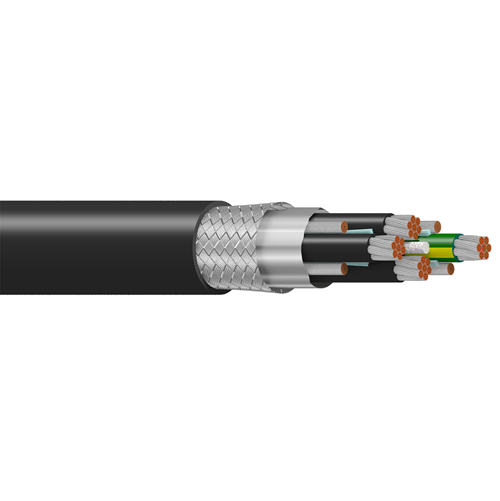

Classic Foil/Braid Designs Features:
• High-strand conductors ease installation; enable better vibration resistance
• Full-sized insulated ground allows lower resistance path to ground
• Tinned copper conductors to prevent against corrosion
• Low capacitance and low impedance of the cables closely matches the drive and electrical values
• Round configuration for reliable sealing
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors
Technical Data:
• Type: Premium 300% ground four conductor
• Shielding: Foil + Braid
• Grounding: Full Size Insulated
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Tinned Copper
• Rating: 1000V UL Flexible Motor Supply
• 600V UL 1277 Type TC-ER
• 1000V UL 2277 Type WTTC
• 1000V CSA AWM I/II A/B FT4
• IEEE 1202
• UL Direct Burial
• XHHW-2, RHW-2 rated circuit conductors -14 AWG and larger
• 90°C Wet/Dry
• Suitable for Class I, II & III, Division 2 hazardous locations
• MSHA
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved
Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments
| technical specifications: | |
| awg | 4 |
| cond. stranding | 7 x 19 x 25 |
| standard lengths(ft) | 1000 |
| standard lengths(m) | 304.8 |
| standard unit wt(lbs.) | 1248.0 |
| standard unit wt(kg) | 566.1 |
| nominal od(inch) | 1.16 |
| nominal od(mm) | 29.46 |
| maximum pull tension(lbs.) | 1940 |
| maximum pull tension(n) | 8633 |
| minimum bend radius(inch) | 9.3 |
| minimum bend radius(mm) | 236.2 |
| belden cable part number | 29506T |
