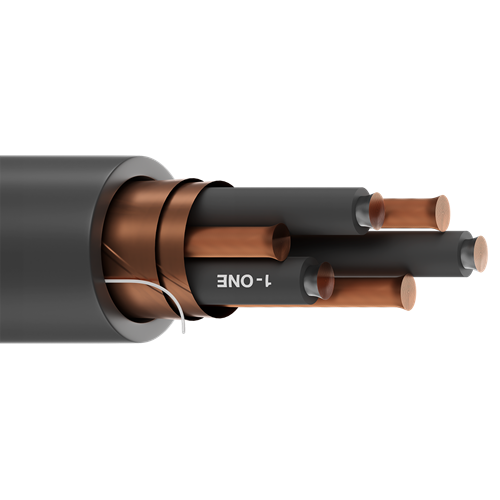

Classic Symmetrical Designs Features:
• Available with high-strand conductors in
large AWG sizes
• Design features a copper tape shield
with segmented ground
• Smaller OD than the Classic Designs
with Foil/Braid
• Industrial-grade PVC jackets provide sunlight-
and oil-resistance; Haloarrest jackets are
halogen-free and provide sunlight-resistance in
LSZH versions
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors
Technical Data:
• Type: Premium 100% ground three conductor
• Shielding: Dual Copper Tape
• Grounding: Bare 3x Segmented
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Tinned Copper
• Rating: 1000V UL Flexible Motor Supply
• 600V UL 1277 Type TC-ER
• 1000V UL 2277 Type WTTC
• 1000V CSA AWM I/II A/B FT4
• IEEE 1202
• UL Direct Burial
• XHHW-2 rated circuit conductors
• 90°C Wet/Dry
• Suitable for Class I, II & III, Division
2 hazardous locations
• MSHA
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved
Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments
| technical specification | |
| awg | 1/0 |
| cond. stranding | 7 x 19 x 21 |
| standard lengths ft. | 1000 |
| standard lengths m | 304.8 |
| standard unit wt. lbs. | 2025 |
| standard unit wt. kg | 918.5 |
| nominal od inch | 1.29 |
| nominal od mm | 32.77 |
| maximum pull tension lbs. | 3537 |
| maximum pull tensionn | 15733 |
| minimum bend radius inch | 12.9 |
| minimum bend radius mm | 327.7 |
| belden cable part number | 29529T |
