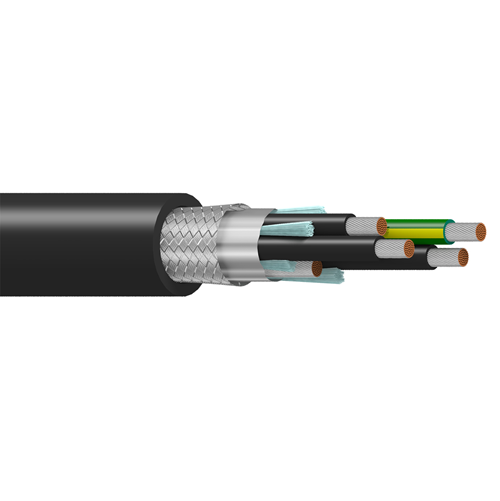

Continuous Flex & Extra Flexible Designs Features:
• Increased range of flexibility, with up to 10M flex cycles for on-machine applications (8AWG and smaller)
• Extreme high-strand conductors ease installation, enable best-in-class vibration resistance with over 2,000 strands on large gauge sizes
• Tinned copper circuit conductors and grounds, TPE jackets for added flexibility
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors
Technical Data:
• Type: Premium 300% ground four conductor
• Shielding: Foil + Braid
• Grounding: Full Size Insulated
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Tinned Copper
• Rating: 1000V UL Flexible Motor Supply
• 600V UL 1277 Type TC-ER
• 1000V UL 2277 Type WTTC
• IEEE 1202
• UL Direct Burial
• XHHW-2, RHW-2 rated circuit conductors -14 AWG and larger
• 90°C Wet/Dry
• C(UL) 600V Type CIC TC
• Oil Res I & II
• -40° C cold bend, IEC 60332-3-22 Cat A (flame test)
• Sunlight resistant
• Suitable for Class I, II & III, Division 2 hazardous locations
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved
• 10 million flexes – 16 through 8 SWG only
• NFPA79 Compliant for Continuous Flex
Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments
| Technical Specification: | |
| awg | 10 |
| cond. stranding | 7 x 37 x 34 |
| standard lengths*(ft.) | 1000 |
| standard lengths*(m) | 305 |
| standard unit wt.(lbs.) | 350 / 1000ft |
| standard unit wt.(kg) | 159 / 305m |
| nominal od(inch) | 0.72 |
| nominal od(mm) | 18.19 |
| maximum pull tension(lbs.) | 592 |
| maximum pull tension(n) | 2634 |
| minimum bend radius(inch) | 3.60 |
| minimum bend radius(mm) | 91.44 |
| minimum bend radius cont. flex(inch) | 5.40 |
| minimum bend radius cont. flex(mm) | 137.16 |
| belden cable part number | 29503F |
