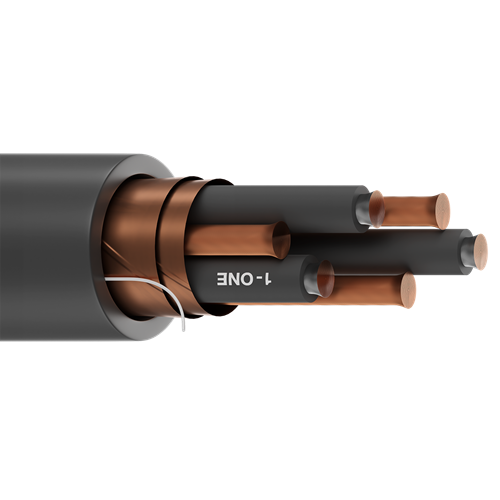

Belden 29530F Cable 2/0 AWG 3 Conductors Classic Premium Ground Symmetrical Design Extra Flexible VFD Cable
Select gauge from drop-down menu for prices:
- Belden Cable Classic Premium Ground Symmetrical Design Extra Flexible VFD Cable
- Belden 29528F Cable 1 AWG 3 Conductors Classic Premium Ground Symmetrical Design Extra Flexible VFD Cable
- Belden 29529F Cable 1/0 AWG 3 Conductors Classic Premium Ground Symmetrical Design Extra Flexible VFD Cable
- Belden 29531F Cable 3/0 AWG 3 Conductors Classic Premium Ground Symmetrical Design Extra Flexible VFD Cable
- Belden 29532F Cable 4/0 AWG 3 Conductors Classic Premium Ground Symmetrical Design Extra Flexible VFD Cable
Continuous Flex & Extra Flexible Designs Features:
• Increased range of flexibility, with up to 10M flex
cycles for on-machine applications (8AWG and
smaller)
• Extreme high-strand conductors ease installation,
enable best-in-class vibration resistance with
over 2,000 strands on large gauge sizes
• Tinned copper circuit conductors and grounds,
TPE jackets for added flexibility
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors
Technical Data:
• Type: Premium 100% ground three conductor
• Shielding: Dual Copper Tape
• Grounding: Bare 3x Segmented
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Tinned Copper
• Rating: 1000V UL Flexible Motor Supply
• 600V UL 1277 Type TC-ER
• 1000V UL 2277 Type WTTC
• 1000V CSA AWM I/II A/B FT4
• IEEE 1202
• UL Direct Burial
• XHHW-2 rated circuit conductors (14 AWG & larger)
• 90°C Wet/Dry
• C(UL) 600V Type CIC TC
• Oil Res I & II
• -40° C cold bend, IEC 60332-3-22 Cat A (flame test)
• Sunlight resistant
• Suitable for Class I & II, Division 2 hazardous locations
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved
Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments
technical specification | |
awg | 2/0 |
cond. stranding | 7 x 7 x 27 x 30 |
standard lengths ft. | 2000 |
standard lengths m | 610 |
standard unit wt. lbs. | 2148 / 1000ft |
standard unit wt. kg | 974 / 305m |
nominal od inch | 1.50 |
nominal od mm | 38.18 |
maximum pull tension lbs. | 4200 |
maximum pull tension n | 18682 |
minimum bend radius inch | 7.50 |
minimum bend radius mm | 190.5 |
belden cable part number | 29530F |
