Description:

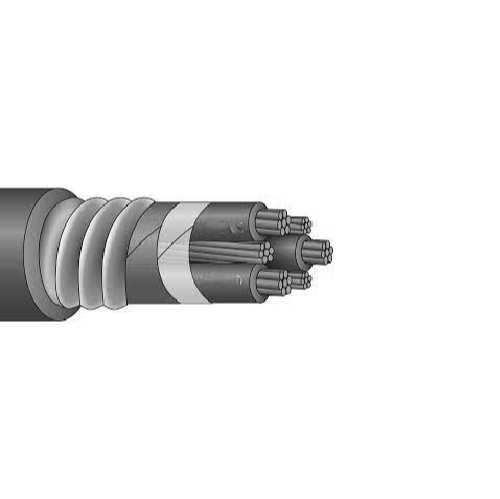

3 tinned conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers and 3 symmetrical tinned bare copper ground conductors. Cable core covered with binder tape, 5-mil helical copper tape shield, aluminum or galvanized steel interlocked armor with overall black zero halogen, limited smoke, zero lead jacket.
Application:
For use in ASD/VFD applications.
Suitable for use in hazardous locations:
• Class I - Div 2
• Class II - Div 2
• Class III - Div 1 and 2
Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70
Flame Rated:
• IEEE 383 (70,000 BTU)
• IEEE 1202/CSA FT-4
• UL 1685
• Two-hour Firewall
• Temperature Rated at 90°C Wet/Dry Cold Temperature Rated at -40ºC Sunlight Resistant Direct Burial
• Color Code: Method 4
• Zero Halogen, Limited Smoke Jacket
• RoHS Compliant
| technical specification: | |
| size awg or kcmil | 8 |
| strand(no.) | 7 |
| insulation thickness(mils) | 45 |
| grounding conductors(awg) | 3-#14 |
| diameter over armor(inch) | 0.73 |
| jacket thickness(mils) | 50 |
| approx. diameter overall(inch) | 0.83 |
| approx. net weight(lb/1000') | 562 |
| ampacity*(30°c ambient) 90°c wet/dry | 55 |
| service wire part number | ASDGAE8/3T |
