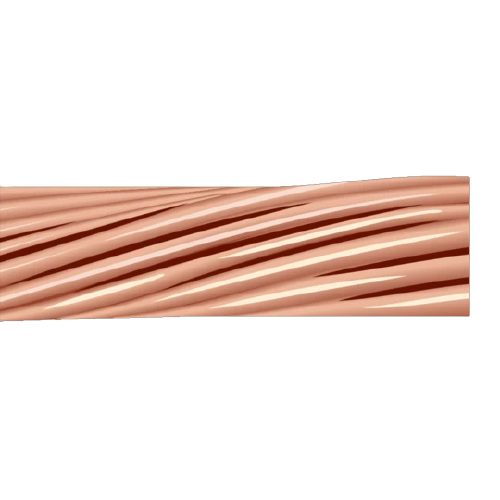

Product Details
| Technical Specifications: | |
| Name: | BCW 350 MCM |
| Size AWG: | 350 |
| Stranding: | 19 |
| Stranding Class: | A |
| Diameter Single Phase Conductor (Mils): | 136 |
| Diameter Complete Cable (O.D.) (Mils): | 679 |
| Weight Per 1000ft Total (Lbs.): | 1080.6 |
| Allowable Ampacity 90C (Amps): | 650 |
| Circular Mil Area (cmils): | -- |
| Hard-Drawn Rated Strength (lbs.): | 15590 |
| Medium-Drawn Rated Strength (lbs.): | 12200 |
Applications:
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
Specifications:
Bare copper wire and cable meets or exceeds the following ASTM specifications:
- B-1 Hard-Drawn Copper Wire.
- B-2 Medium-Hard Copper Wire.
- B-3 Soft or Annealed Copper Wire.
- B-787 19 Wire Combination Unilay-Stranded Soft copper wire.
- B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.
Construction:
Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.
