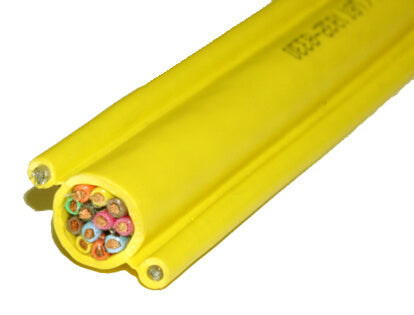

16 AWG Multi Conductor Dual and No Steel UL Pendant Cable

16 AWG Multi Conductor Dual and No Steel UL Pendant Cable

Select gauge from drop-down menu for prices:

16 AWG Multi Conductor Dual and No Steel UL Pendant Cable

Product Details

Features:
• Flexible Control Cable for use in Hoist and Pendant applications
• Premium PVC/Nylon Insulation
• Premium Oil Resistant & Flame Retardant Yellow PVC Jacket
• Two 1/16” (7x7) External Insulated Galvanized Steel Messengers
• Flexible Stranded Bare Copper Conductors

Cable Construction:
• Flexible Stranded Bare Copper Conductors
• Premium PVC Insulation with Nylon Coating
• Premium Oil Resistant & Flame Retardant Yellow PVC Jacket
• Two 1/16” (7x7) External Jacketed Galvanized Steel Messengers
• Color Code: ICEA Method 1, Table E-2 with one Green/Yellow ground conductor

Standards and Approvals:
• UL Pendant 600V 90°C
• UL Type MTW
• CSA AWM 600V 90°C

Round Pendant With Dual Steel Messengers
JM Part Number AWG No. of Cond Conductor Stranding Insulation Thickness Inch(mm) Jacket Thickness Inch(mm) Dimensions Inch(mm) Cable wt lbs/mft(kg/km)
JMC7611608 16 8 65/34 0.021 (0.53) 0.053 (1.35) 0.490 (12.45) 216 (321)
JMC7611612 16 12 65/34 0.021 (0.53) 0.063 (1.60) 0.566 (14.38) 260 (387)
JMC7611616 16 16 65/34 0.021 (0.53) 0.063 (1.60) 0.624 (15.85) 315 (469)
JMC7611624 16 24 65/34 0.021 (0.53) 0.080 (2.03) 0.789 (20.04) 475 (707)
Round Pendant - No Steel Messengers
JMC7611608 16 8 65/34 0.021 (0.53) 0.048 (1.22) 0.479 (12.17) 158
JMC7611612 16 12 65/34 0.021 (0.53) 0.063 (1.60) 0.566 (14.38) 218 (324)
JMC7611616 16 16 65/34 0.021 (0.53) 0.063 (1.60) 0.624 (15.85) 276 (411)
JMC7631624 16 24 65/34 0.021 (0.53) 0.063 (1.60) 0.755 (19.18 410 (610)
