Product Details
Description:

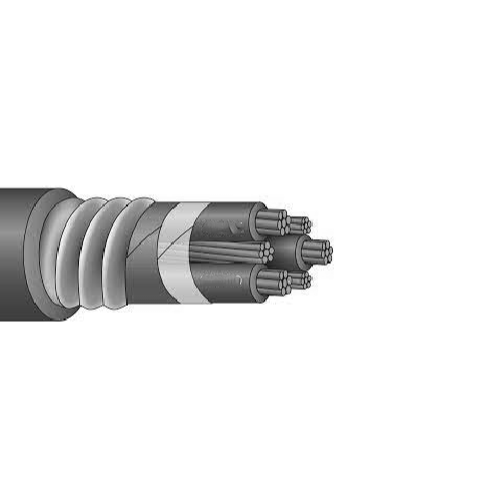

3 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers and 3 symmetrical copper ground conductors. Cable core covered with binder tape, 5-mil helical copper tape shield and galvanized steel interlocked armor with overall PVC jacket. Jacket available in colors.
Application:
For use in ASD/VFD applications.
Suitable for use in hazardous locations:
• Class I - Div 2
• Class II - Div 2
• Class III - Div 1 and 2
Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70
Flame Rated:
• IEEE 383 (70,000 BTU)
• ICEA T-29-520 (210,000 BTU)
• IEEE 1202/CSA FT-4
• Two-hour Firewall
• Temperature Rated at 90°C Wet/Dry Sunlight and Oil Resistant II Jacket Direct Burial
• Color Code: Method 4
• RoHS Compliant
| size awg or kcmil | strand (no.) | ampacity* (30°c ambient) 90°c wet/dry |
service wire part number |
Action |
| 14 | 7 | 25† | ASDGAP14/3 | Request A Quote |
| 12 | 7 | 30† | ASDGAP12/3 | Request A Quote |
| 10 | 7 | 40† | ASDGAP10/3 | Request A Quote |
| 8 | 7 | 55 | ASDGAP8/3 | Request A Quote |
| 6 | 7 | 75 | ASDGAP6/3 | Request A Quote |
| 4 | 7 | 95 | ASDGAP4/3 | Request A Quote |
| 3 | 7 | 115 | ASDGAP3/3 | Request A Quote |
| 2 | 7 | 130 | ASDGAP2/3 | Request A Quote |
| 1 | 19 | 145 | ASDGAP1/3 | Request A Quote |
| 1/0 | 19 | 170 | ASDGAP1/03 | Request A Quote |
| 2/0 | 19 | 195 | ASDGAP2/03 | Request A Quote |
| 3/0 | 19 | 225 | ASDGAP3/03 | Request A Quote |
| 4/0 | 19 | 260 | ASDGAP4/03 | Request A Quote |
| 250 | 37 | 290 | ASDGAP250/3 | Request A Quote |
| 350 | 37 | 350 | ASDGAP350/3 | Request A Quote |
| 500 | 37 | 430 | ASDGAP500/3 | Request A Quote |
| 600 | 61 | 475 | ASDGAP600/3 | Request A Quote |
| 750 | 61 | 535 | ASDGAP750/3 | Request A Quote |
