Service Wire 250 MCM Jacketed MC Service Drive ASD/VFD XHHW-2 600 Volt Copper Cable ASDGAP250/3

Service Wire 250 MCM Jacketed MC Service Drive ASD/VFD XHHW-2 600 Volt Copper Cable ASDGAP250/3

Select gauge from drop-down menu for prices:

Service Wire 250 MCM Jacketed MC Service Drive ASD/VFD XHHW-2 600 Volt Copper Cable ASDGAP250/3
Service Wire 250 MCM Jacketed MC Service Drive ASD/VFD XHHW-2 600 Volt Copper Cable ASDGAP250/3

Description:

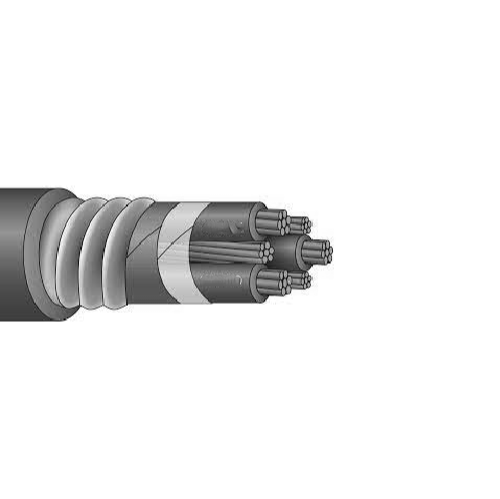

3 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers and 3 symmetrical copper ground conductors. Cable core covered with binder tape, 5-mil helical copper tape shield and galvanized steel interlocked armor with overall PVC jacket. Jacket available in colors.

Application:
For use in ASD/VFD applications.
Suitable for use in hazardous locations:
• Class I - Div 2
• Class II - Div 2
• Class III - Div 1 and 2

Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70
Flame Rated:
• IEEE 383 (70,000 BTU)
• ICEA T-29-520 (210,000 BTU)
• IEEE 1202/CSA FT-4
• Two-hour Firewall
• Temperature Rated at 90°C Wet/Dry Sunlight and Oil Resistant II Jacket Direct Burial
• Color Code: Method 4
• RoHS Compliant

technical specification:
size awg or kcmil 250
strand(no.) 37
insulation thickness(mils) 65
grounding conductors(awg) 3-#4
diameter over armor(inch) 1.81
pvc jacket thickness(mils) 60
approx. diameter overall(inch) 1.93
approx. net weight(lb/1000') 4,072
ampacity*(30°c ambient) 90°c wet/dry 290
service wire part number ASDGAP250/3
