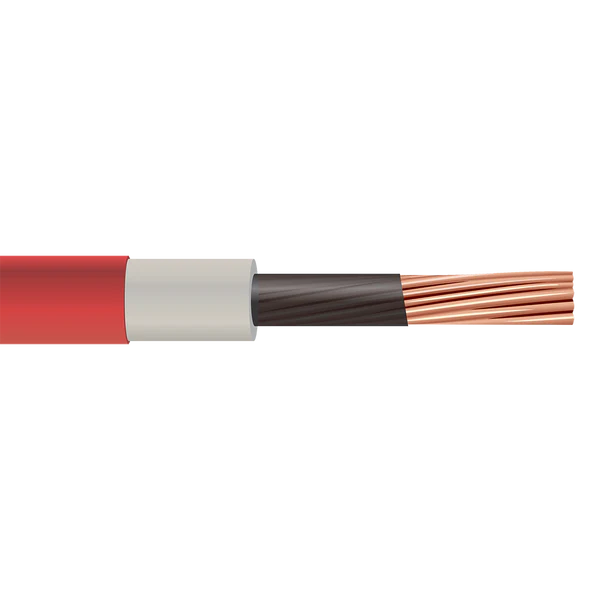

JUMPER CABLE SINGLE CONDUCTOR 5KV/15KV PORTABLE POWER RED CABLE

JUMPER CABLE SINGLE CONDUCTOR 5KV/15KV PORTABLE POWER RED CABLE

SKU:   Download PDF

Select a gauge:
  • JUMPER CABLE SINGLE CONDUCTOR 5KV/15KV PORTABLE POWER RED CABLE
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Shipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details

More gauges options

Product Information
Length
Price (Per FT.)
Action
Product Name
2 AWG Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable
Length
/FT
Price (Per FT.)

$5.12

Action
Product Name
1/0 AWG Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable
Length
/FT
Price (Per FT.)

$6.83

Action
Product Name
2/0 AWG Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable
Length
/FT
Price (Per FT.)

$7.12

Action
Product Name
4/0 AWG Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable
Length
/FT
Price (Per FT.)

$9.02

Action
Product Name
350 MCM Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable
Length
/FT
Price (Per FT.)

$16.62

Action
Product Name
500 MCM Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable
Length
/FT
Price (Per FT.)

$18.52

Action
Product Information Resources Applications Features Reviews
Product Information

Also Known As:

5kv/15kv Booster Cable, 5kv/15kv Jumper Lead, 5kv/15kv Battery Cable, 5kv/15kv Battery Jumper Cable, 5kv/15kv Battery Booster Cable.

Conductor:

Flexible strand tin-coated copper, ASTM B-172 and ICEA S-75-381

Separator:

Synthetic semi-conducting tape separator between the conductor and insulation

Insulation:

Ethylene-propylene rubber (EPR), UL 1072

Jacket:

Red heavy duty CPE thermoset compound, ICEA S-75-381 sec 3.22

Resources
Applications
Jumper Cable Single Conductor 5kv/15kv Portable Power Red Cable is Suitable as a flexible power lead for temporary connections and other industrial applications. They are also used in by-pass portions of aerial power lines and in equipment where a non- shielded flexible cable is required.

The electrical cables are highly flexible and are resistant to oil, weather, water, and sunlight. The temperature range of the cable is between 40ºC and +90ºC. The electrical cable is available in 5kv and 15kv varieties.
Features
Standards:

•ICEA S-97-682
•ICEA S-75-381/NEMA WC-58
•ASTM B172
•ASTM B 33
•UL 1072
