Product Details

Description:

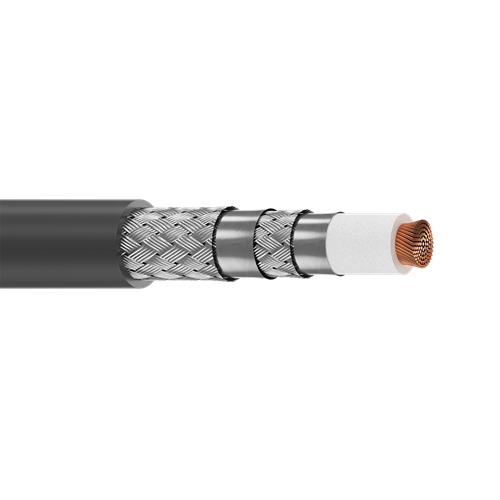

• 20 AWG stranded (105x40) bare copper conductor, foam polyethylene insulation, Duobond IV® quad shield (100% coverage), PVC Jacket.

Insulation:
• Material: Foam Polyethylene
• Diameter (in.): 0.183

Outer Jacket:
• Material: PVC - Polyvinyl Chloride

Mechanical Characteristics (Overall):
• Operating Temperature Range: -40°C To +75°C
• Bulk Cable Weight: 40 lbs/1000 ft.
• Max. Recommended Pulling Tension: 35 lbs.
• Min. Bend Radius/Minor Axis: 3 in.
• Min. Flexing Radius: 6 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL2R, CMR
• CEC/C(UL) Specification: CMG
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 6/U

Electrical Characteristics (Overall):
• Nom. Charactertistic Impedance: (ohm): 75
• Nom. Inductance (μH/ft): 0.108
• Nom. Capacitance Conductor to Shield (pF/100 m): 17.0
• Nominal Velocity of Propagation: VP (%): 79
• Nominal Delay (ns/ft): 1.29
• Nom. Conductor DC Resistance @ 20°C (Ohm/100 ft): 10.5
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/100 ft): 3.6

Flame Test:
• UL Flame Test: UL1666 Riser
• CSA Flame Test: FT4
