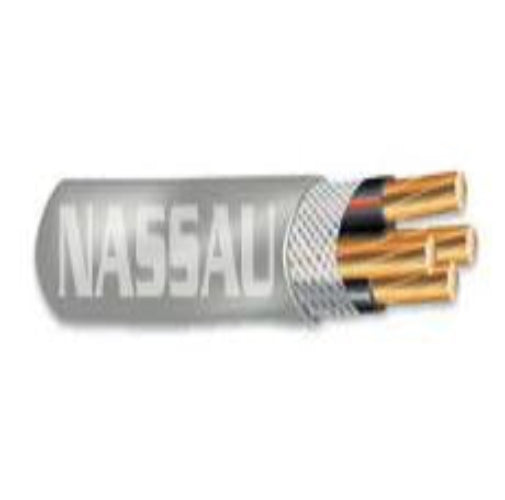

4/0-4/0-4/0-2/0 Copper SER Service Entrance Cable

4/0-4/0-4/0-2/0 Copper SER Service Entrance Cable

SKU:   Download PDF

Select a gauge:
  • 4/0-4/0-4/0-2/0 Copper SER Service Entrance Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $26.25 /FT   Web pricing policy
BEFORE   Now $26.25 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

4/0-4/0-4/0/-2/0 Copper SER Service Entrance Cable, 4/0-4/0-4/0/-2/0 Reinforcement Tape Service Entrance Cable, 4/0-4/0-4/0/-2/0 SER Cable, 4/0-4/0-4/0/-2/0 SER Service Cable, 4/0-4/0-4/0/-2/0 Copper Service Cable, 4/0-4/0-4/0/-2/0 Round Service Entrance Cable.

Conductor:

The cable is equipped with annealed soft copper conductors. It typically has three-phase conductors with a bare neutral.

Insulation:

The cable has cross-linked polyethylene type XHHW-2 insulation.

Jacket:

SE cable is jacketed with gray sunlight-resistant polyvinyl chloride (PVC). This dielectrically strong insulation is resistant to corrosion, abrasion, chemicals, and mechanical impact.



Compatible with Manufacturer
Priority Wire Cable : 4/0-03CUG-R-SER
Omni Cable : 4/0-03GSERCU
Resources
Applications
SER is a service entrance cable with a reinforcement tape used in all instances where service entrance cables are allowed. The electrical cable is most often used to connect the service drop to the meter base and from the meter base to the distribution panelboard. SER is suitable for dry locations, with temperatures not exceeding 90°C. The voltage rating the electrical cable is 600 volts.
Features
Standards:

•ASTM- All applicable standards
•UL Standard 44 for XHHW-2 conductors
•UL Standard 83 for THHN/THWN conductors
•UL Standard 854
•Federal Specification A-A-59544
•National Electrical Code, NFPA 70. 2011 Edition
•RoHS/ REACH

•Allowable Ampacity at 60° C: 195

•Allowable Ampacity at 75° C: 230

•Allowable Ampacity at 90° C: 260

•Allowable Ampacity (Dwelling): 250
Specifications
•Size AWG: 4/0-4/0-4/0/-2/0
•Weight per 1,000 ft: 2650 lbs
•Outside Diameter: 1598 mils
•Conductors: Annealed Soft Copper
•Stranding: Phase Neutral Conductors: 19
•Stranding: Equipment Ground Conductor: 19
•Insulation: XLPE
•Jacket: PVC
