Service Wire Feeder 3 Conductor MC XHHW-2 600 Volt Copper Wire
Select gauge from drop-down menu for prices:
- Service Wire Feeder 8 AWG 2 Conductor MC XHHW-2 600 Volt Copper Wire MC8/2
- Service Wire Feeder 6 AWG 2 Conductor MC XHHW-2 600 Volt Copper Wire MC6/2
- Service Wire Feeder 8 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC8/3
- Service Wire Feeder 6 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC6/3
- Service Wire Feeder 4 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC4/3
- Service Wire Feeder 3 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC3/3
- Service Wire Feeder 2 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC2/3
- Service Wire Feeder 1 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC1/3
- Service Wire Feeder 1/0 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC1/03
- Service Wire Feeder 2/0 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC2/03
- Service Wire Feeder 3/0 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC3/03
- Service Wire Feeder 4/0 AWG 3 Conductor MC XHHW-2 600 Volt Copper Wire MC4/03
- Service Wire Feeder 250 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC250/3
- Service Wire Feeder 300 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC300/3
- Service Wire Feeder 350 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC350/3
- Service Wire Feeder 400 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC400/3
- Service Wire Feeder 500 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC500/3
- Service Wire Feeder 600 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC600/3
- Service Wire Feeder 750 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC750/3
Product Details

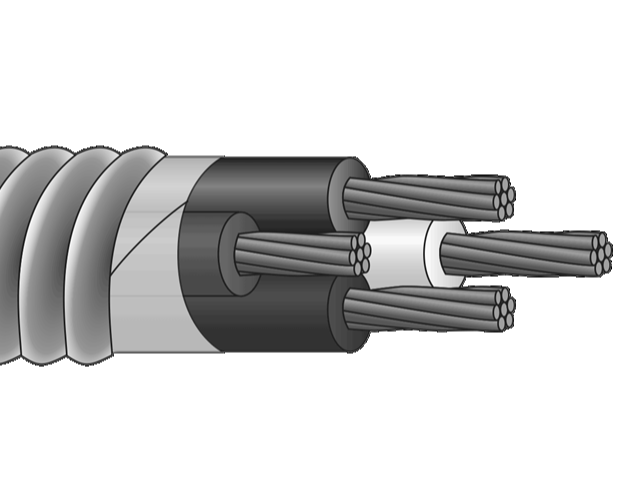

Description: 3 or 4 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers** and green or bare ground conductor. Cable core covered with binder tape and aluminum or galvanized steel interlocked armor. Jacket available upon request.
Application: Cost effective replacement for conduit and wire; for service, branch and feeder circuits; and commercial, industrial & utility applications. For use in theatres (article 520), motion picture and TV studios (article 530) and places of assembly with more than 100 people.
Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70 Cable
• Tray Rated NEC Article 330 (can be messenger supported)
• Flame Rated: Two-hour Firewall Temperature Rated at 90°C Wet/Dry
• Color Code: 3 Conductor - Black, Red and White (#8 AWG - #1 AWG)
• Method 4 (1/0 AWG and larger) Green Ground (#8 AWG - #1 AWG)
• Bare Ground (1/0 AWG and larger)
• RoHS Compliant
size awg or kcmil | strand (no.) | ampacity* (30°c ambient) 90°c wet/dry |
service wire part number |
Action |
two conductor | ||||
8 | 7 | 55 | MC8/2 | Request A Quote |
6 | 7 | 75 | MC6/2 | Request A Quote |
three conductor | ||||
8 | 7 | 55 | MC8/3 | Request A Quote |
6 | 7 | 75 | MC6/3 | Request A Quote |
4 | 7 | 95 | MC4/3 | Request A Quote |
3 | 7 | 115 | MC3/3 | Request A Quote |
2 | 7 | 130 | MC2/3 | Request A Quote |
1 | 19 | 145 | MC1/3 | Request A Quote |
1/0 | 19 | 170 | MC1/03 | Request A Quote |
2/0 | 19 | 195 | MC2/03 | Request A Quote |
3/0 | 19 | 225 | MC3/03 | Request A Quote |
4/0 | 19 | 260 | MC4/03 | Request A Quote |
250 | 37 | 290 | MC250/3 | Request A Quote |
300 | 37 | 320 | MC300/3 | Request A Quote |
350 | 37 | 350 | MC350/3 | Request A Quote |
400 | 37 | 380 | MC400/3 | Request A Quote |
500 | 61 | 430 | MC500/3 | Request A Quote |
600 | 61 | 475 | MC600/3 | Request A Quote |
750 | 61 | 535 | MC750/3 | Request A Quote |
