Vertical Cable 065-488/A/P/WH 23 AWG CAT6A 10G UTP Solid BC Plenum Bulk Ethernet Cable 1000ft White
Select gauge from drop-down menu for prices:
Description

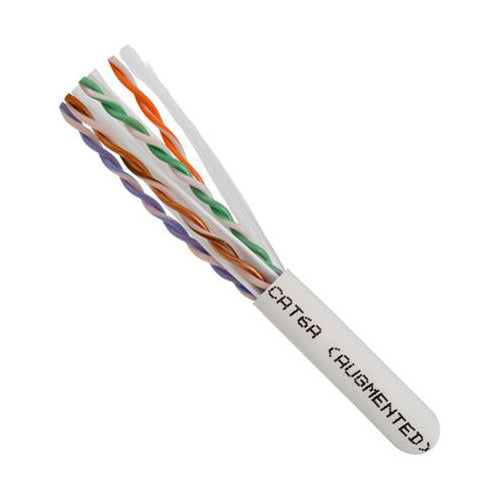

• Vertical Cable 065-488/A/P/WH 23 AWG CAT6A 10G UTP Solid BC Plenum Bulk Ethernet Cable 1000ft White.

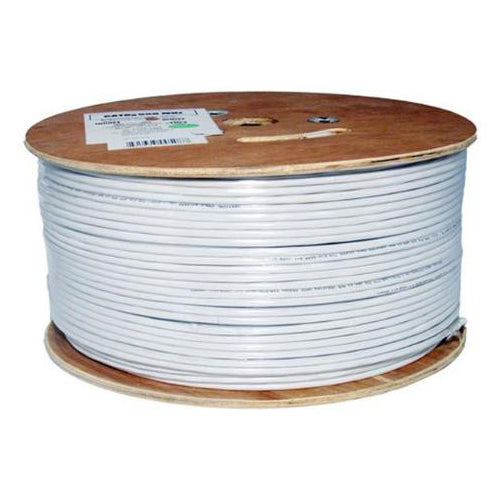

• This Cat 6A utp plenum cable is a high performance data communication cable suitable for 10Gbit high speed applications. This cable is approved by ETL to be type CMP and can be installed in air plenums and roof ducts in accordance with NEC Article 800. The wires are 23 awg in size and are made of solid bare copper conductors. All 4 pairs are easily identified by color stripes. This cable is supplied in 1000 ft wooden spool and sequential length markings are printed on the jacket.

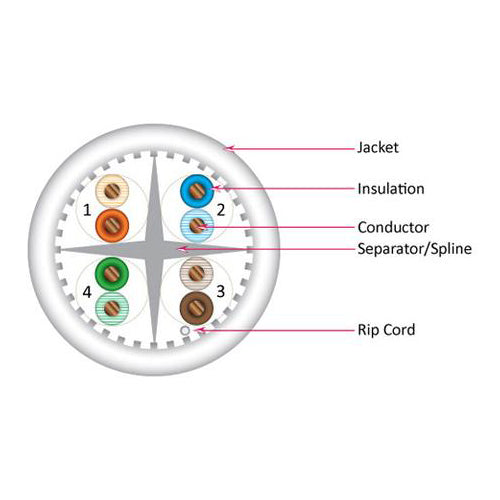

Construction
• Conductor: Solid Bare Copper
• Size: 23 AWG
• Separator: Yes
• Jacket: Low-Smoke Flame Redtardant Plenum Polymer
• Outer Diameter: 8.38mm
• Rip Cord: Yes
Features
• Cat6A 10G utp plenum 1000 feet cable tested to 500 MHz
• 23 awg wires made of solid bare copper conductors
• ETL type CMP for fire resistant plenum installations
• NEC Article 800, ANSI/TIA/EIA 568C.2 Category 6A, 11801:2002 Category 6A
• UL 910:CMP Rating, RoHS Compliant
Color | Part Number |
White | 065-488/A/P/WH |
