Description

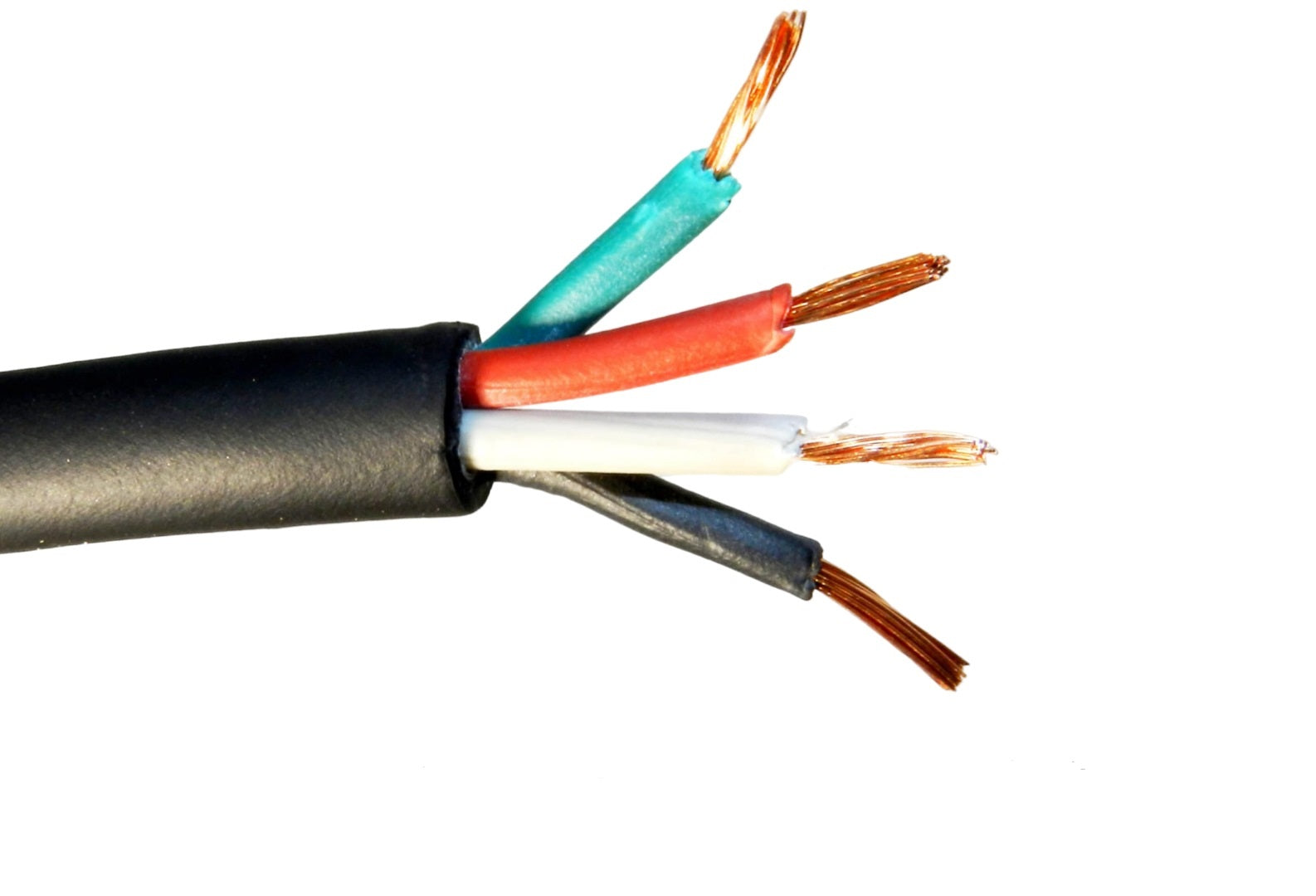

• 14/4 SOOW Cable Highlights 14 AWG 4 Conductors. This 14/4 SO Cord is a UL CSA Certified cable it can transmit 15 Amps of Current and its rated for 600 volts. It has UL Listed and CSA Certified for indoor and outdoor use.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
| 14/4 SOOW Specifications: | |
| Number of Conductors in Cable: | 4 |
| Nominal Insulation Thickness (Inches): | 0.045 |
| Size AWG: | 14 |
| Stranding: | 41/30 |
| Diameter Complete Cable (O.D.) (Inches): | 0.575 |
| Weight Per 1000ft Total (Lbs.): | 205 |
| Allowable Ampacity 90C (Amps): | 15 |
| Coleman Cable Part # | 822427 |
| General Cable Part # | 2768 |
| HWC Part # | HW25001404 |
| Omni Cable Part # | B11404 |
| Southwire item Part # | 55810299 |
| Priority Wire Part # | SOOW-14/4 |
| Wire Express Cable Part # | 4A-1404 |
