Description

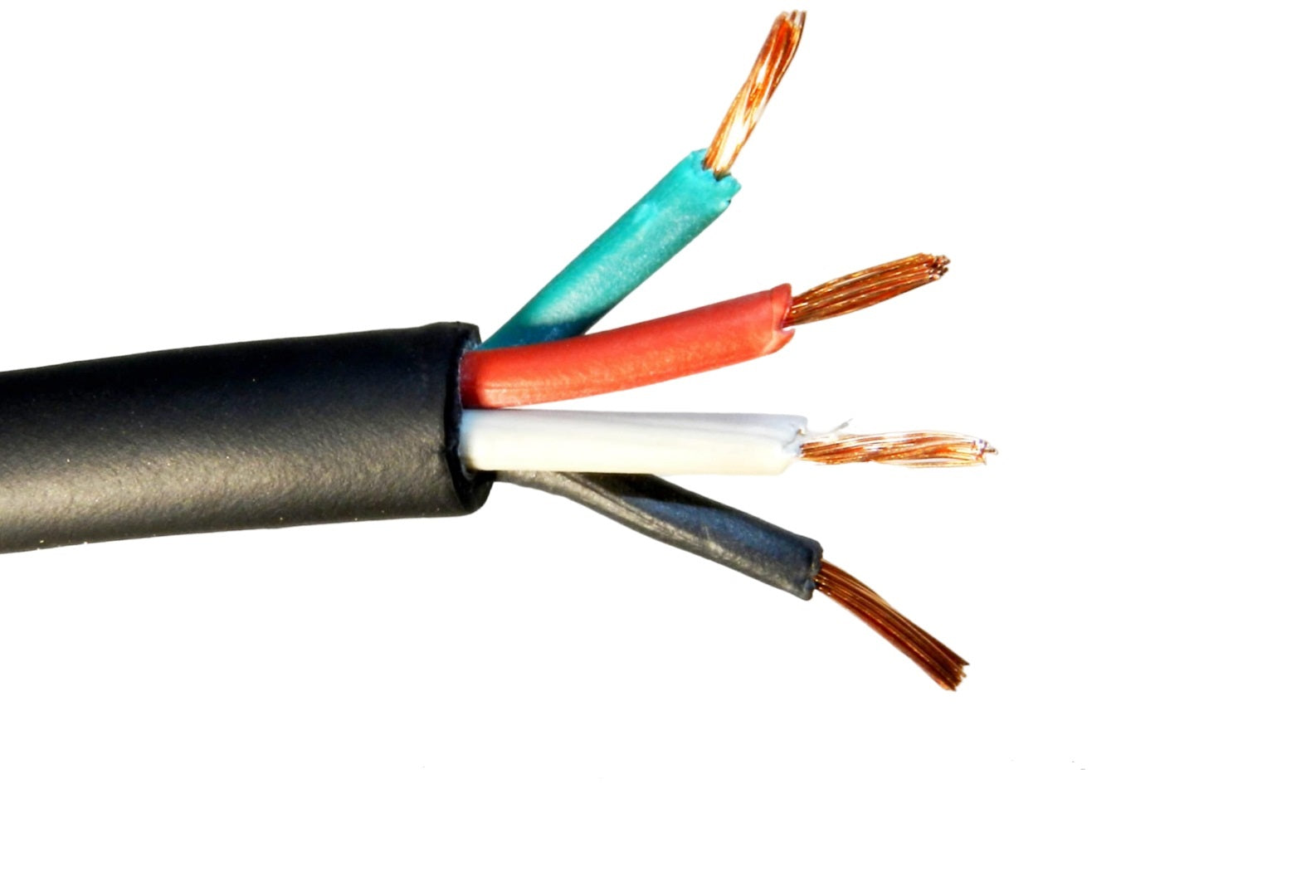

• 10/4 SOOW Cable Highlights 10 AWG 4 Conductors. This 10/4 SO Cord is a UL CSA Certified cable can transmit 25 Amps of Current and its rated for 600 volts. It has CPE jacket that is resistant to sunlight, ozone, water, oil, and abrasion.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
Manufacturers Part Numbers:
• Priority Wire: SOOW-10/4, Wire Express: 4A-1004
| 10/4 SOOW Specifications: | |
| Number of Conductors in Cable: | 4 |
| Nominal Insulation Thickness (Inches): | 0.045 |
| Size AWG: | 10 |
| Stranding: | 104/30 |
| Diameter Complete Cable (O.D.) (Inches): | 0.710 |
| Weight Per 1000ft Total (Lbs.): | 350 |
| Allowable Ampacity 90C (Amps): | 25 |
| Coleman Cable Part # | 822429 |
| General Cable Part # | 2727 |
| HWC Part # | HW25001004 |
| Omni Cable Part # | B11004 |
| Southwire item Part # | 55809699 |
