Description
• 6/4 SOOW Cable is a medium duty multipurpose electrical cord. 6/4 SO cord means, it’s a 6 Gauge cord with four multicolored conductors. It has a maximum voltage of 600V that enables it to heavy-duty power machinery among other tasks.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
Manufacturers Part Numbers:
• Coleman Cable: 822421, General Cable: 01824.46.01, Southwire: 55809199, Omni Cable: B10604, Houston Wire: HW250 00604, Priority Wire: SOOW-6/4
| 6/4 SOOW Specifications: | |
| Number of Conductors in Cable: | 4 |
| Nominal Insulation Thickness (Inches): | 0.050 |
| Size AWG: | 6 |
| Stranding: | 101/26 |
| Diameter Complete Cable (O.D.) (Inches): | 0.865 |
| Weight Per 1000ft Total (Lbs.): | 615 |
| Allowable Ampacity 90C (Amps): | 45 |
QUESTIONS & ANSWERS
Ask a Question-
Where is the 6/4 SOO Cord Applicable?
If at all you’re wondering on which projects should you use 6/4 SOOW Cord? I have the answer for you. This type of so cable powers different tools, control circuits, construction equipment, and portable tools. Because of its unrivaled flexibility, it can be used in extension cords.
If you want an excellent wiring cable for portable appliances, workshop tools, small motors, and medium voltage electrical equipment, then 6/4 SOOW Portable Cable 600V is the best choice for you. The SO Cord is fit for use at home, business environs, industries, and even wet outdoor environment. This is because this SOO cord is an all-weather cable that can thrive in any environment irrespective of the weather.
As if that is not enough, 6/4 SOOW Portable Cable 600V is also very efficient for use in other harsh environments like mining sites, welding, and marine dockside. This could be your best pick if you're working in such harsh environmental conditions. -
Does 6/4 SO Cord Have Good Electric Conduction?
The 6/4 SOO Cord is fitted with a fully annealed and stranded copper wire. Copper wire is among the best in electrical conductivity giving the 6/4 SO Cord maximum performance. The copper wire is stranded for two significant reasons. First, stranding increases the flexibility of the 6/4 SO Cord making it easy to fold and fit into cable trays for transportation. High flexibility also increases the durability of the SOOW cable, because it can be folded and unfolded many times without breaking. Second, stranding reduces resistance to the flow of currents making transmission of electricity faster.
Annealing is a special heat treatment done to the SO conductors making them less hard and more ductile. This property increases the workability of the 6/4 SOO Cord. They can, therefore, be easily folded to fit in ducts without breaking.
The 6/4 SOO Cord conducts electricity of up to 600V, and this gives it high efficiency in performance. -
What is the makeup of 6/4 SOOW cable? Is it three conductors and a ground?

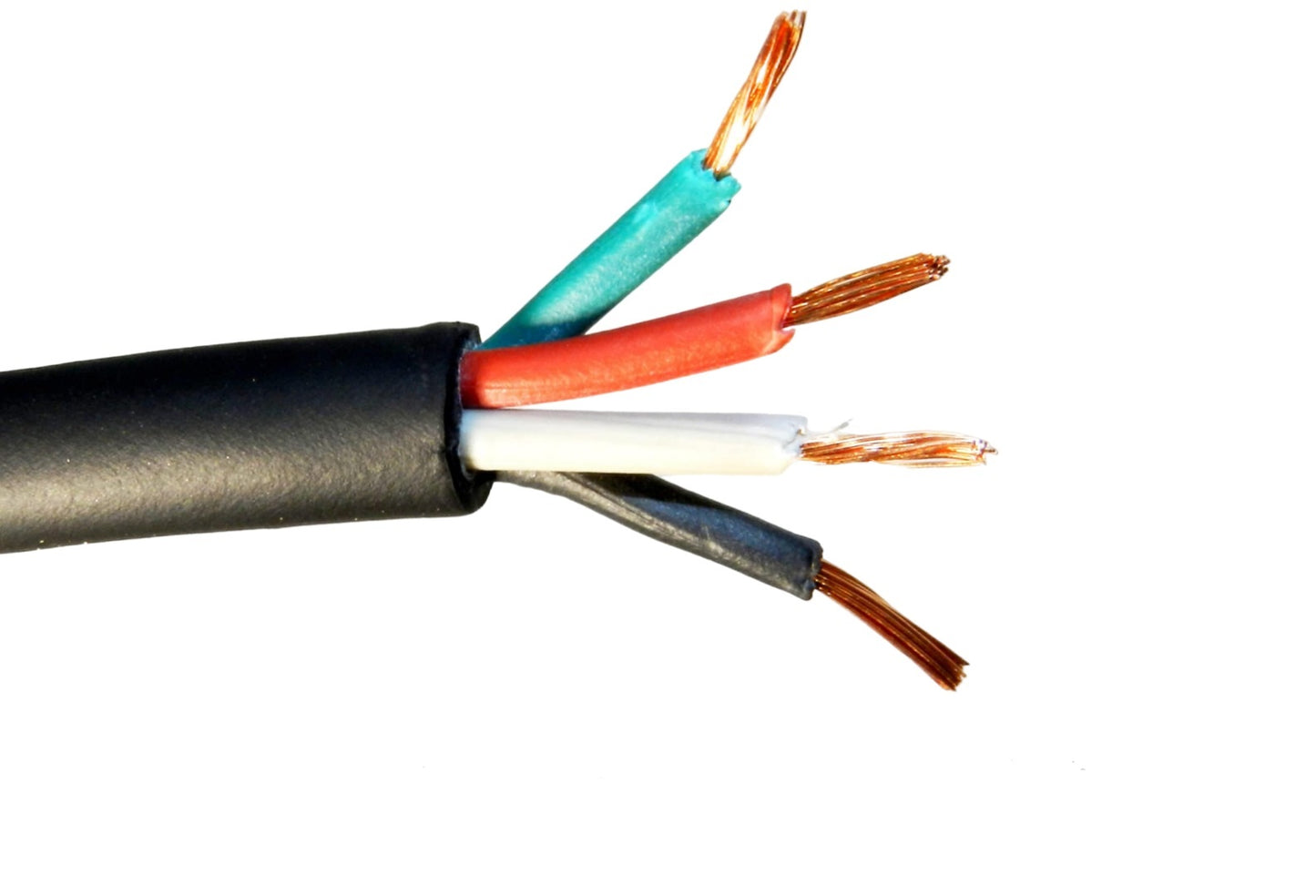

• The 6/4 is a type SOOW cable that comes with 600 voltages like any other SO cord. It is denoted as 6/4 because it has a gauge of 6 AWG and four conductors. Of the 4 four conductors, one is a ground. They are color-coded as black, white, red and green.
• The annealed stranded bare copper is made in line with the ASTM B-174 regulation. The copper is stranded to form the conductor soft and make cutting and bending easy. The 6/4 SOOW cord diameter stands at 0.865 inches. -
Where is the 6/4 SOO Cord Applicable?
• If at all you’re wondering on which projects should you use 6/4 SOOW Cord? I have the answer for you. This type of so cable powers different tools, control circuits, construction equipment, and portable tools. Because of its unrivaled flexibility, it can be used in extension cords.
• If you want an excellent wiring cable for portable appliances, workshop tools, small motors, and medium voltage electrical equipment, then 6/4 SOOW Portable Cable 600V is the best choice for you. The SO Cord is fit for use at home, business environs, industries, and even wet outdoor environment. This is because this SOO cord is an all-weather cable that can thrive in any environment irrespective of the weather.
• As if that is not enough, 6/4 SOOW Portable Cable 600V is also very efficient for use in other harsh environments like mining sites, welding, and marine dockside. This could be your best pick if you're working in such harsh environmental conditions. -
Does 6/4 SO Cord Have Good Electric Conduction?
• The 6/4 SOO Cord is fitted with a fully annealed and stranded copper wire. Copper wire is among the best in electrical conductivity giving the 6/4 S O Cord maximum performance. The copper wire is stranded for two significant reasons. First, stranding increases the flexibility of the 6/4 S O Cord making it easy to fold and fit into cable trays for transportation. High flexibility also increases the durability of the SOOW cable, because it can be folded and unfolded many times without breaking. Second, stranding reduces resistance to the flow of currents making transmission of electricity faster.
• Annealing is a special heat treatment done to the So conductors making them less hard and more ductile. This property increases the workability of the 6/4 SOO Cord. They can, therefore, be easily folded to fit in ducts without breaking.
• The 6/4 SOO Cord conducts electricity of up to 600V, and this gives it high efficiency in performance.
