Description

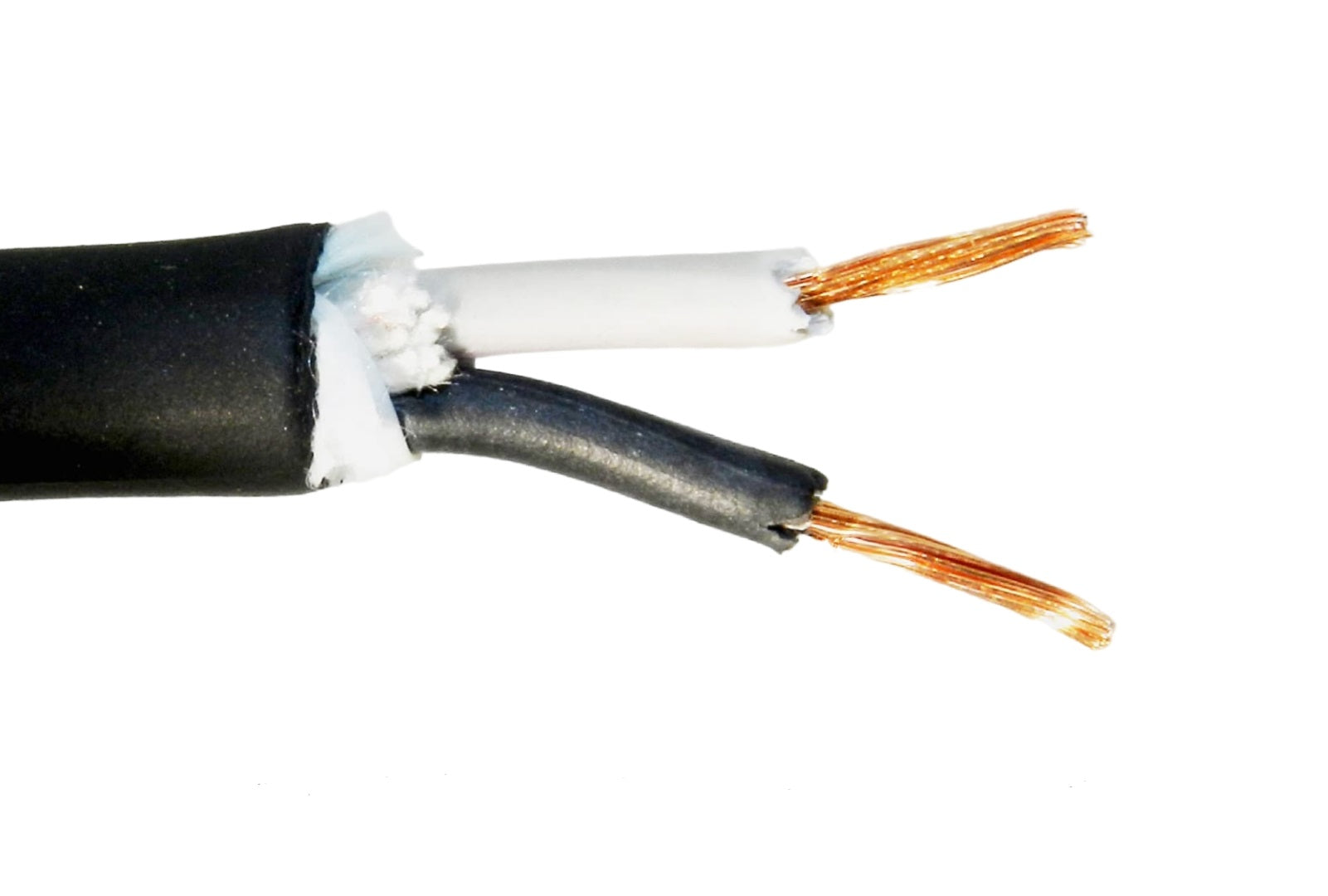

• SOOW cable 18/2 Highlights 18 AWG 2 Conductor. This 18/2 SO Cord is a UL CSA Certified cable it can transmit 10 amps of Current and its rated for 600 volts. It has Oil, water, moisture and sunlight resistant.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
| 18/2 SOOW Specifications: | |
| Number of Conductors in Cable: | 2 |
| Nominal Insulation Thickness (Inches): | 0.030 |
| Size AWG: | 18 |
| Stranding: | 16/30 |
| Diameter Complete Cable (O.D.) (Inches): | 0.345 |
| Weight Per 1000ft Total (Lbs.): | 70 |
| Allowable Ampacity 90C (Amps): | 10 |
| Coleman Cable Part # | 822225 |
| General Cable Part # | 2763 |
| HWC Part # | HW25001802 |
| Omni Cable Part # | B11802 |
| Southwire item Part # | 55814004 |
| Priority Wire Part # | SOOW-18/2 |
| Wire Express Cable Part # | 4A-1802 |
