Description

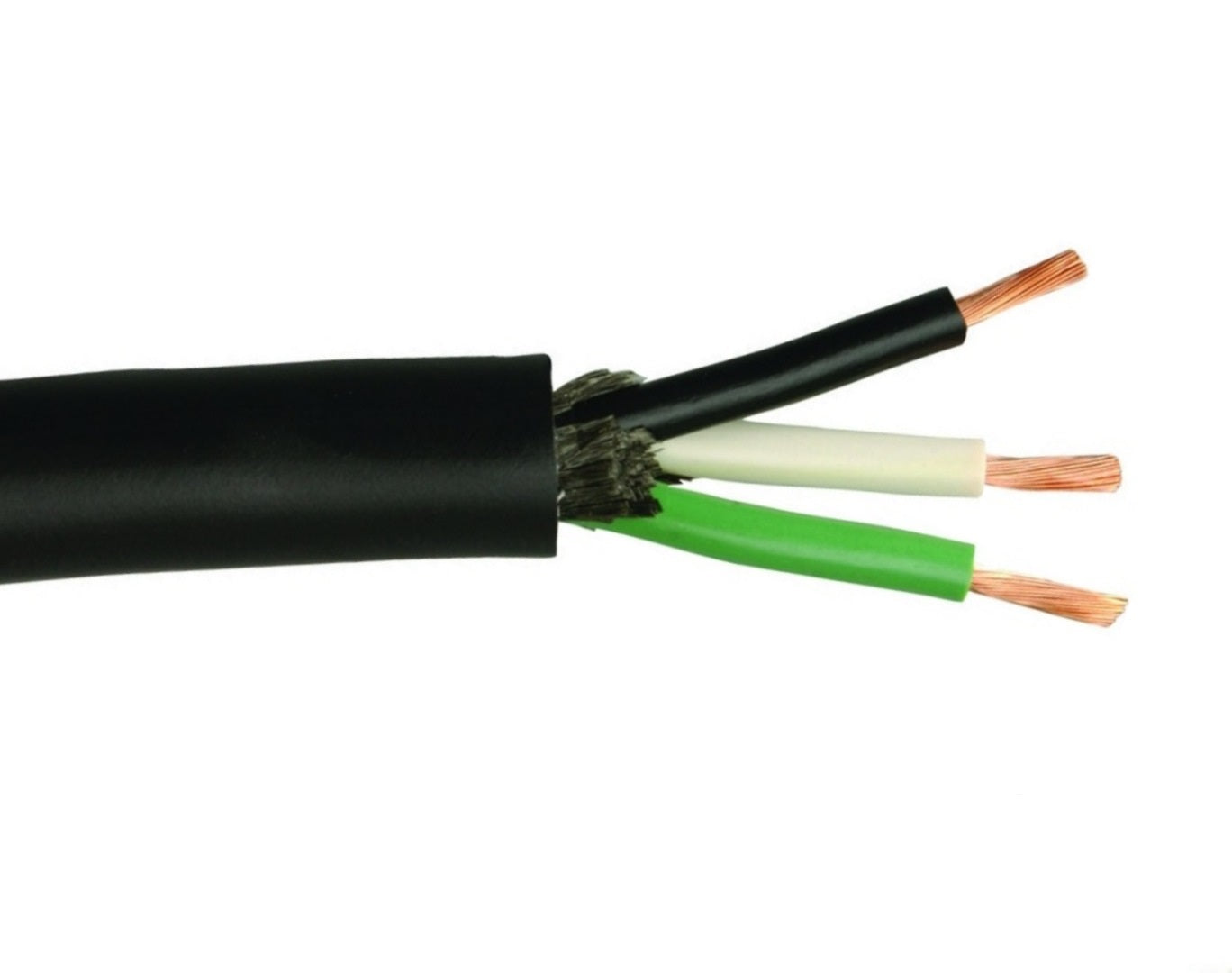

• 10/3 SOOW Cable Highlights 10 AWG 3 Conductors. This 10/3 SO Cord is a UL CSA Certified cable can transmit 30 Amps of Current and its rated for 600 volts. It Can be used in wet or dry locations.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
Manufacturers Part Numbers:
• Priority Wire: SOOW-10/3, Wire Express: 4A-1003
| 10/3 SOOW Cable Specifications: | |
| Number of Conductors in Cable: | 3 |
| Nominal Insulation Thickness (Inches): | 0.045 |
| Size AWG: | 10 |
| Stranding: | 104/30 |
| Diameter Complete Cable (O.D.) (Inches): | 0.660 |
| Weight Per 1000ft Total (Lbs.): | 290 |
| Allowable Ampacity 90C (Amps): | 30 |
| Coleman Cable Part # | 822329 |
| General Cable Part # | 2728 |
| HWC Part # | HW25001003 |
| Omni Cable Part # | B11003 |
| Southwire item Part # | 55809799 |
