Description

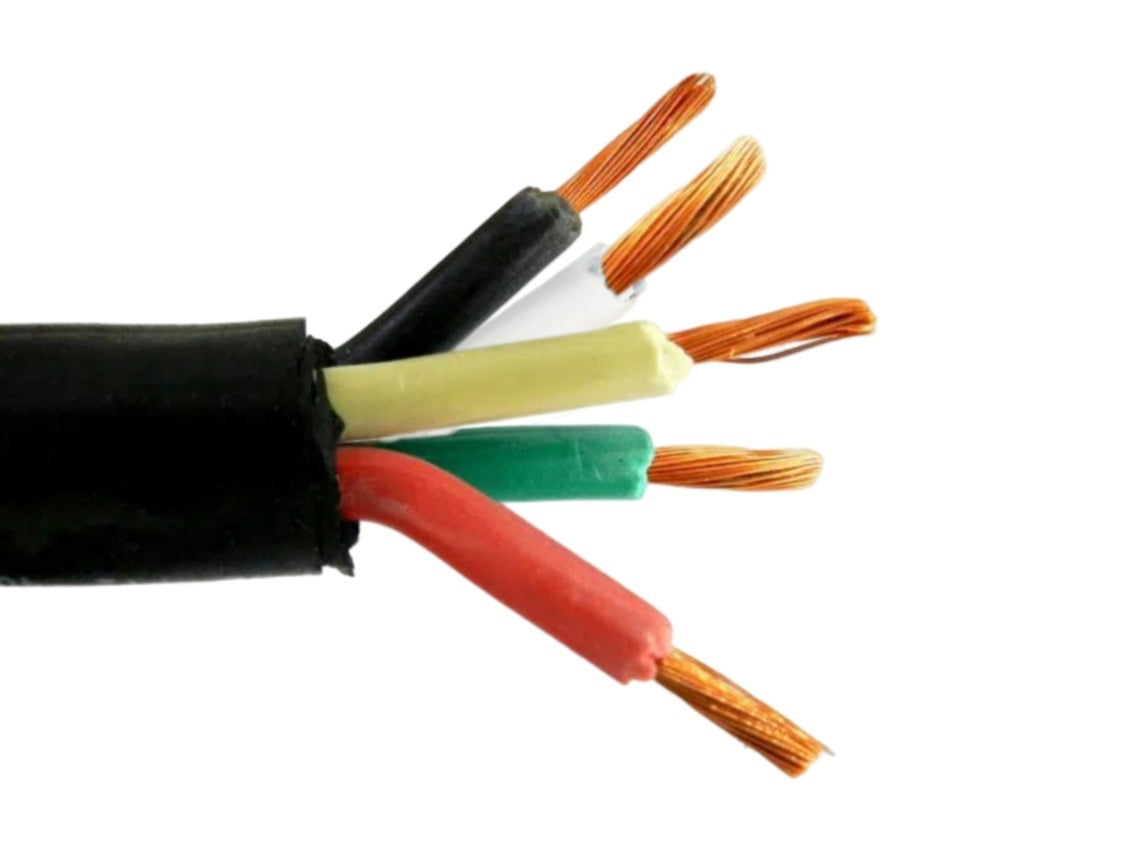

• 8/5 SOOW Cable Non UL Highlights 8 AWG 5 Conductors. 8/5 SO Cord can transmit 28 Amps of Current. It offers an impressive temperature range.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
Manufacturers Part Numbers:
• Coleman Cable: 822470, General Cable: 98267, Southwire: 55810599, Omni Cable: B10805, Houston Wire: HW250 00805, Priority Wire: SOOW-8/5
| 8/5 SOOW Specifications: | |
| Number of Conductors in Cable: | 5 |
| Nominal Insulation Thickness (Inches): | 0.050 |
| Size AWG: | 8 |
| Stranding: | 65/26 |
| Diameter Complete Cable (O.D.) (Inches): | 0.840 |
| Weight Per 1000ft Total (Lbs.): | 570 |
| Allowable Ampacity 90C (Amps): | 28 |
