Description

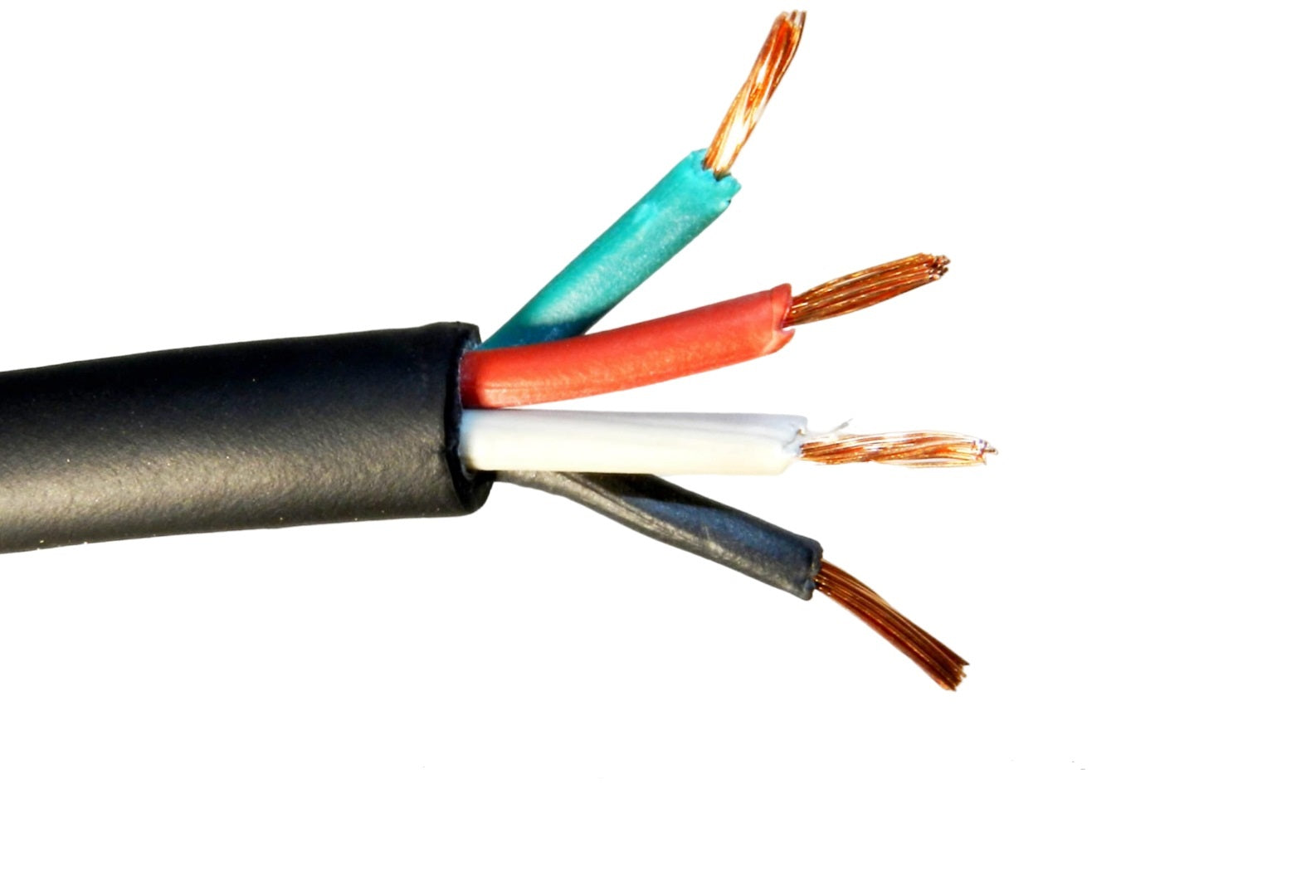

• 6/4 SOOW UL CSA Cable Highlights 6 AWG 4 Conductors. 6/4 SO Cord can transmit 45 Amps of Current. SOOW Portable Cord is a recommended cable for use in locations with an increased risk of fire.
Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.
Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174
Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket
• Black Chlorinated Polyethylene (CPE)
Tempeature Range
• -40°C and 90°C
Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC
Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use
| 6/4 SOOW UL CSA Specifications: | |
| Number of Conductors in Cable | 4 |
| Nominal Insulation Thickness (Inches) | 0.060 |
| Size AWG | 6 |
| Stranding | 133/27 |
| Diameter Complete Cable (O.D.) (Inches) | 1.080 |
| Weight Per 1000ft Total (Lbs.) | 830 |
| Allowable Ampacity 90C (Amps) | 45 |
