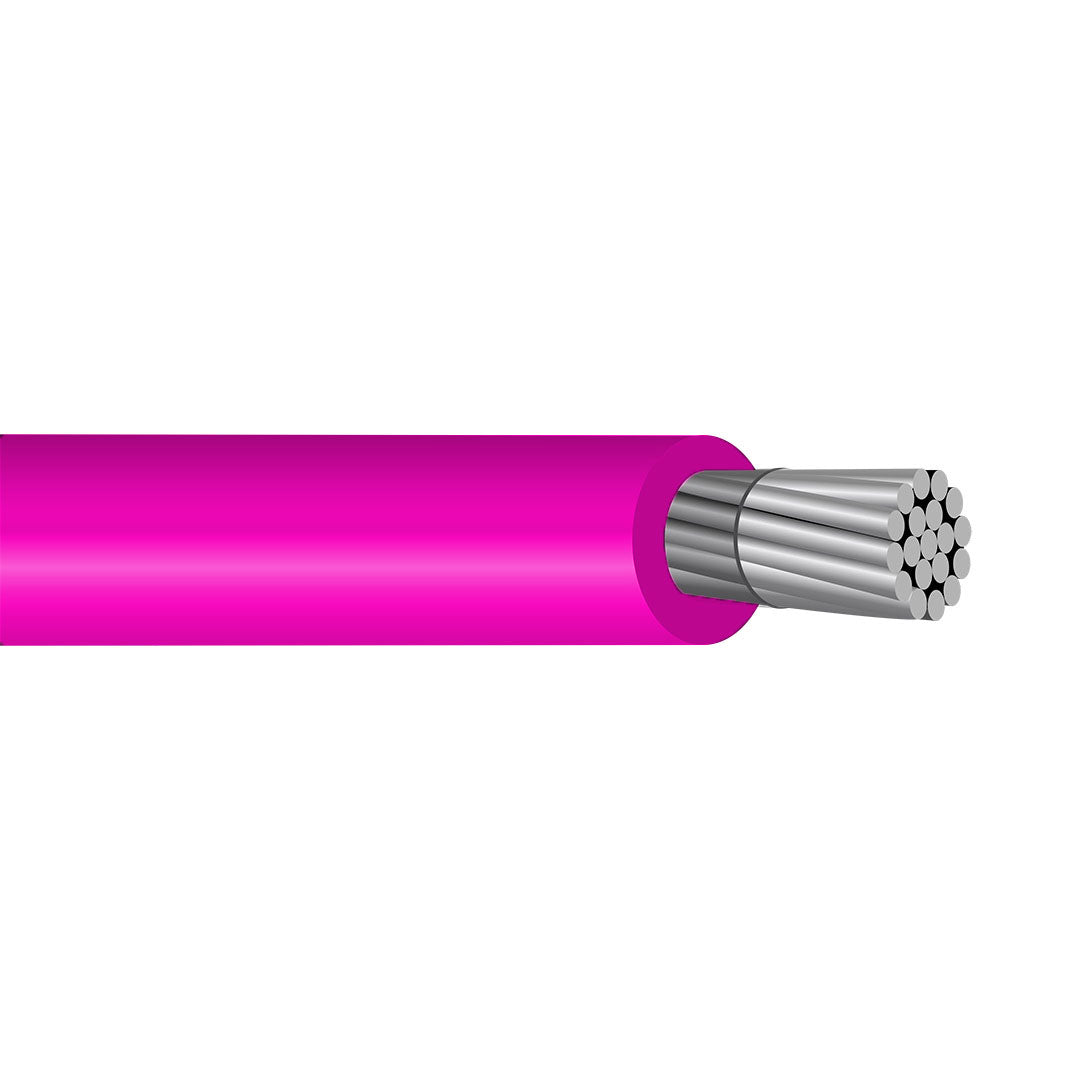

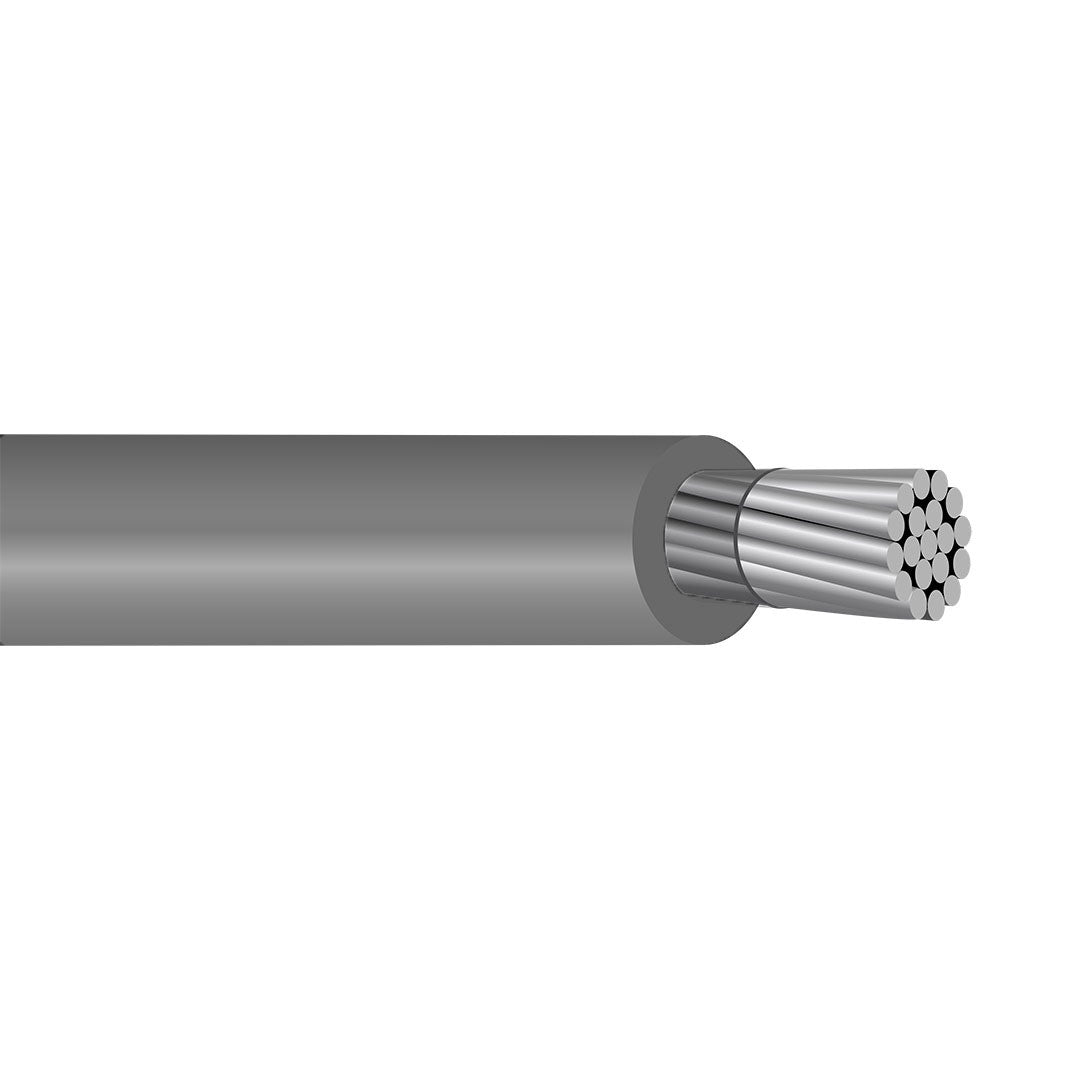

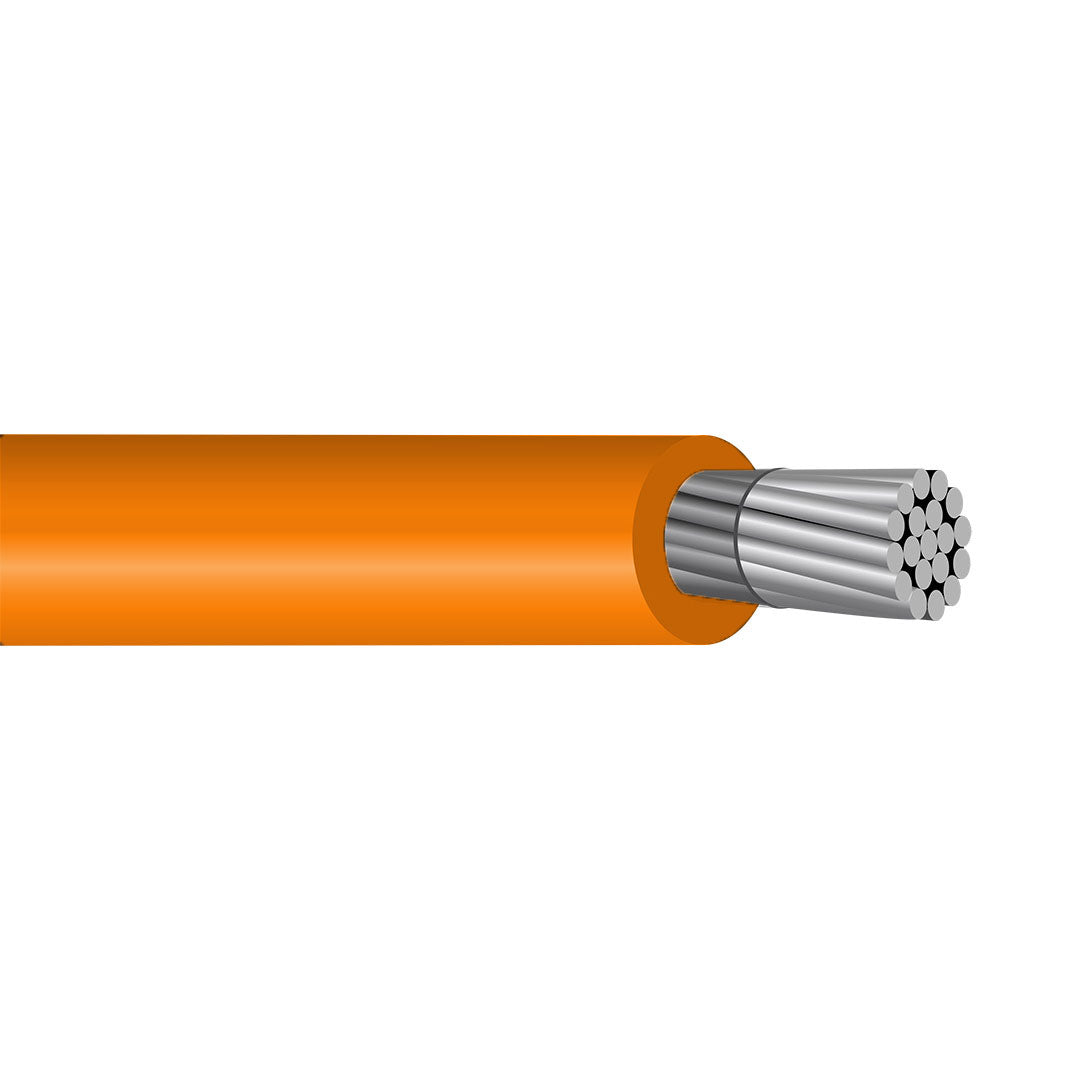

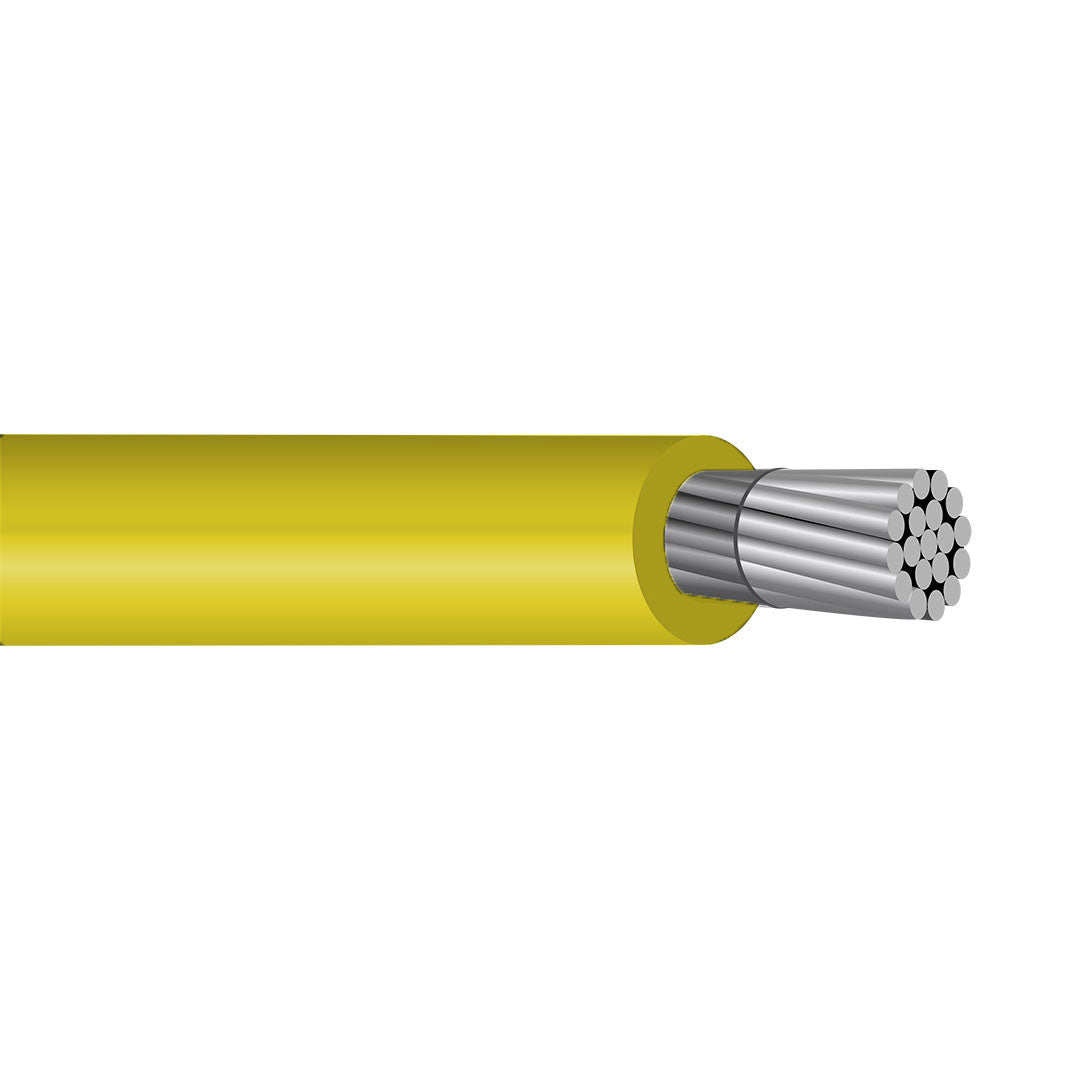

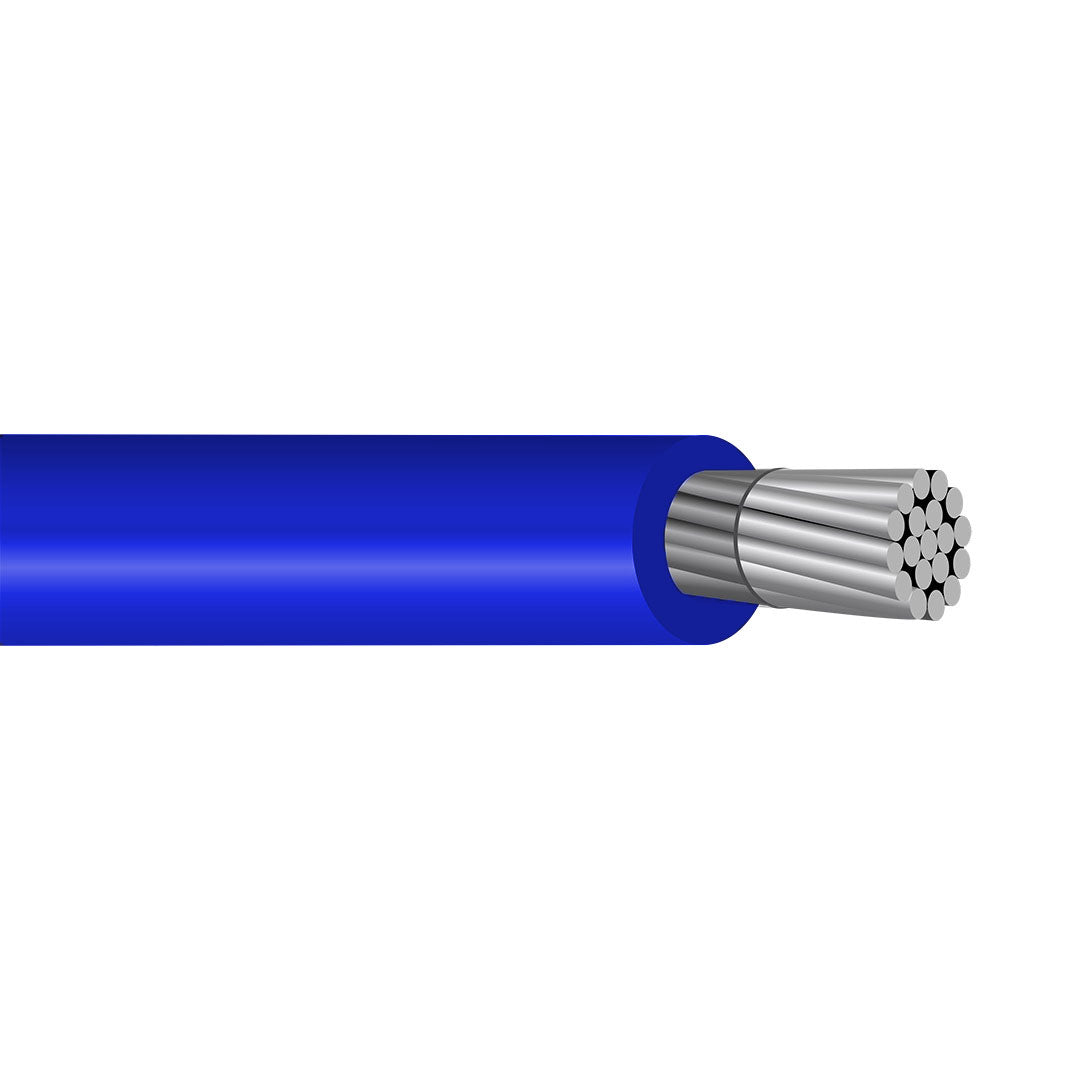

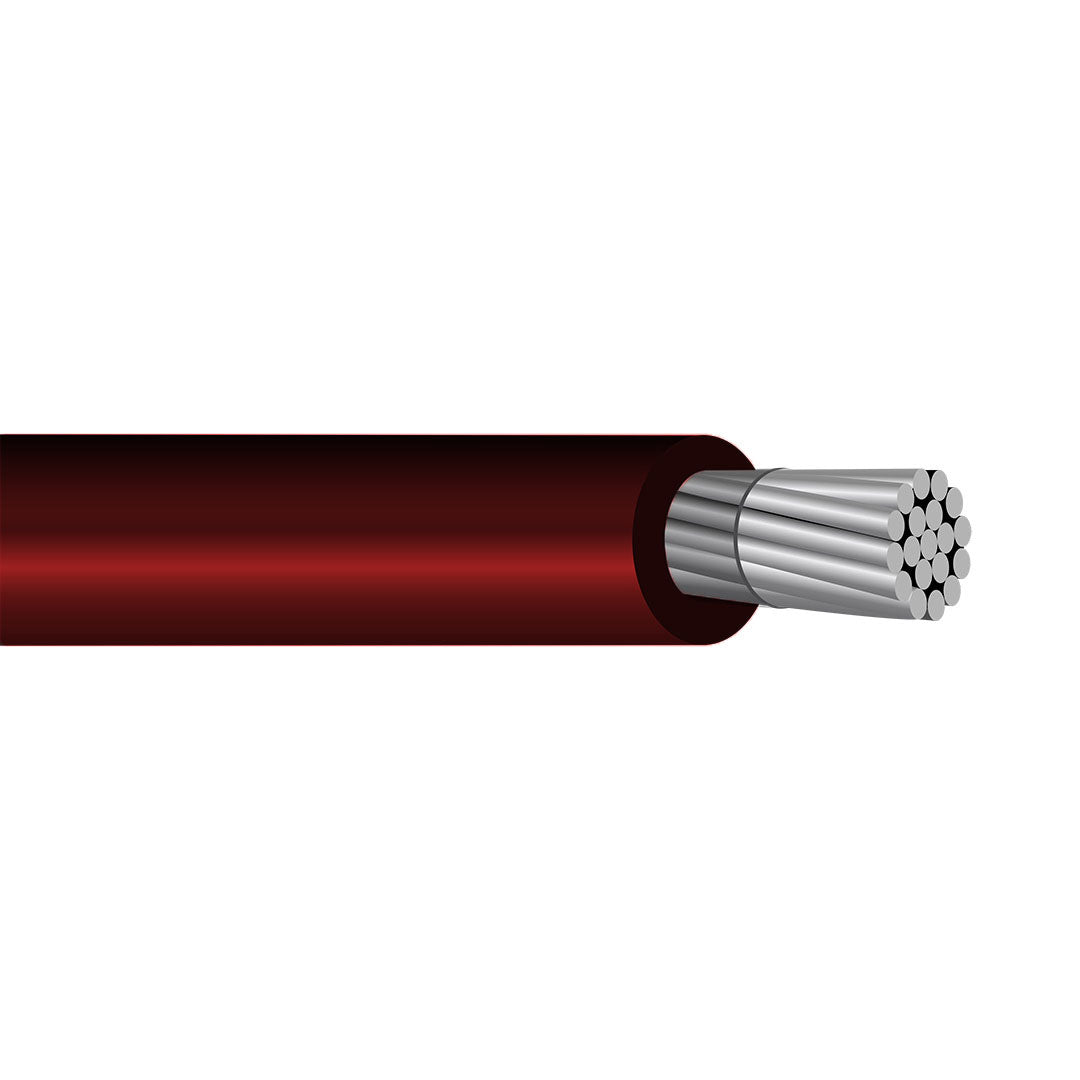

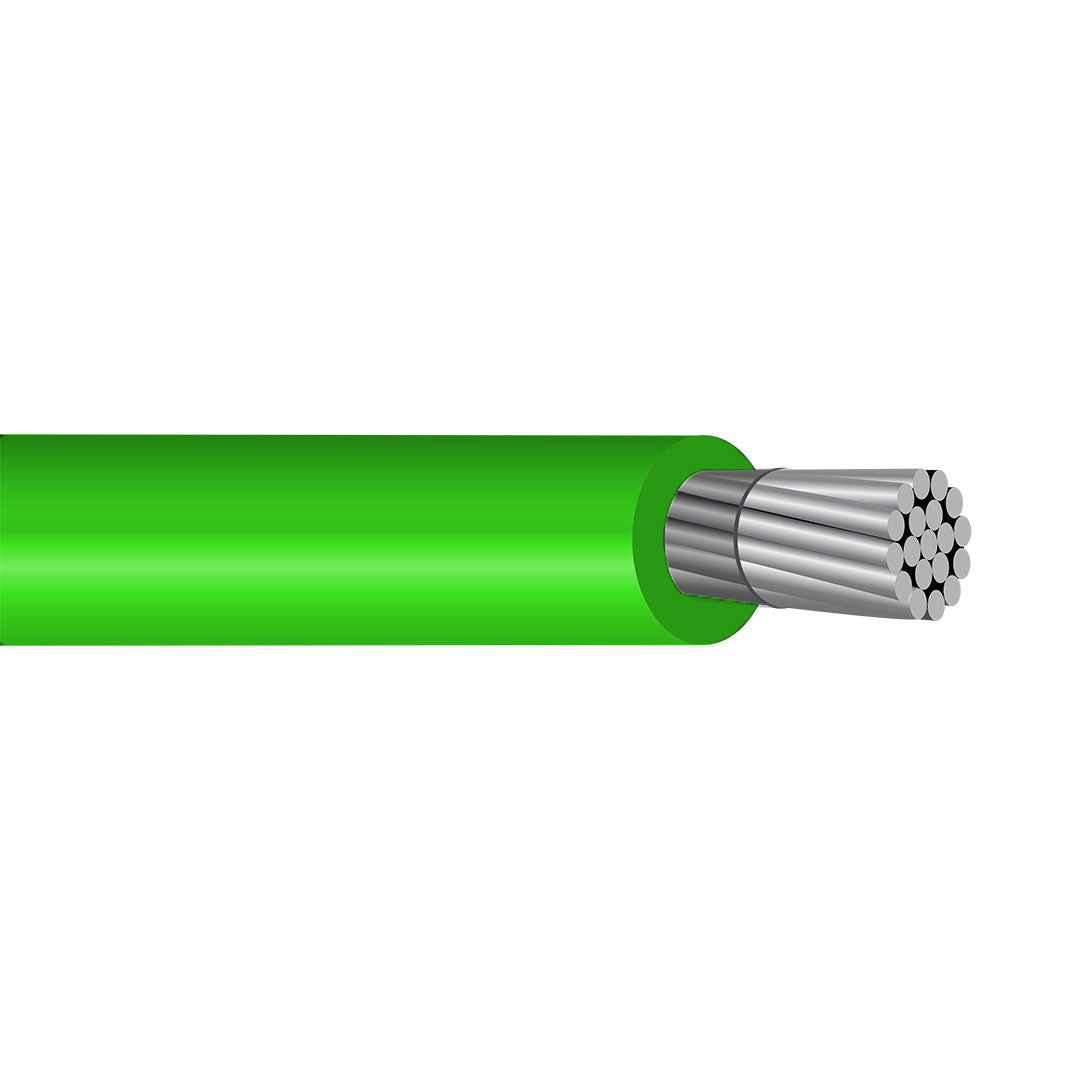

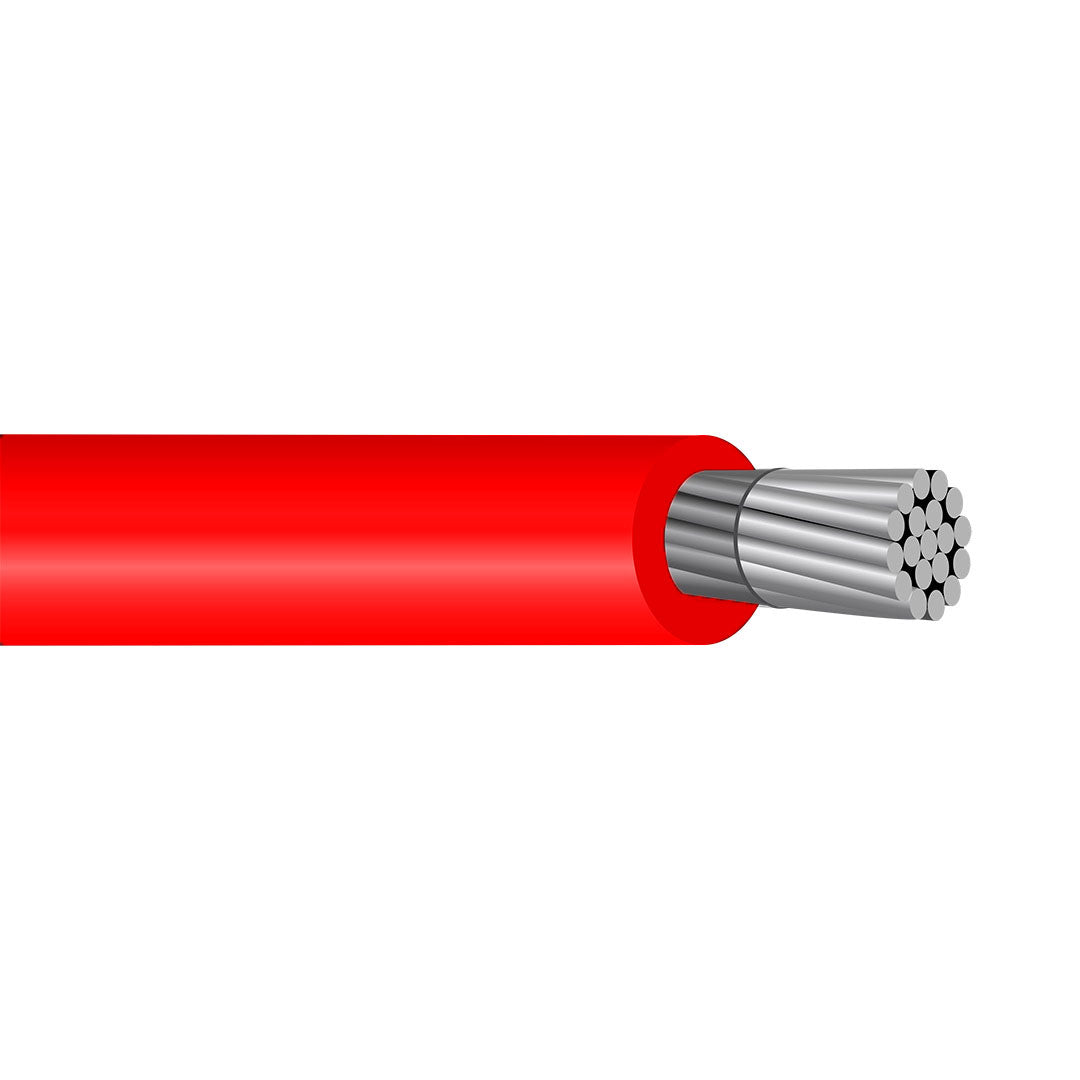

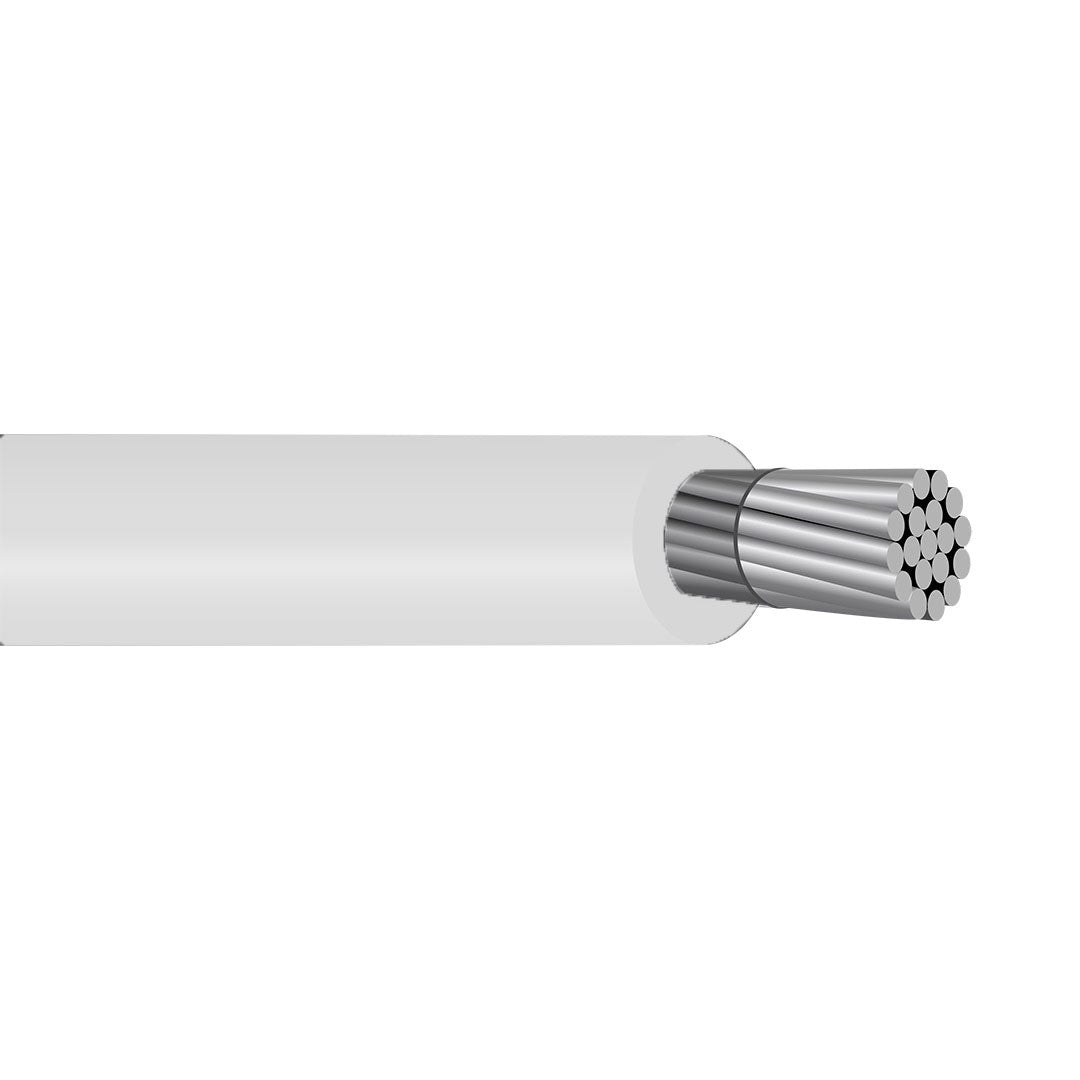

250 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

SKU: SKU: NES28774X Download PDF

Color Black Blue Green Orange Red White Yellow Brown Gray

Select a gauge:

250 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Now $1.78 /FT Web pricing policy

~~BEFORE~~ Now $1.78 /FT Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

250 thhn cable, 250 thwn cable, 250 mcm thhn cable, 250 mcm thwn cable, 250 thhn aluminum, 250 pvc insulated, 250 pvc insulated wire, 250 pvc insulated aluminium wire, 250 pvc sheathed cable, 250 pvc flexible cable.

Conductors:

THHN / THWN-2 / T90 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Compatible with Manufacturer
Priority Wire & Cable :	250-01AL-THHN
Classic Wire & Cable :	A250-01THHN
Southwire :	Black : 56044401 Blue : 56262703 Brown : 56186303 Gray : 56186603 Green : 56186799 Orange : 56186403 Purple : 57337399 Red : 56262603 White : 56262501 Yellow : 56186503 Tan : 58183399 Pink : 58183499

Resources

Applications

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Features

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Allowable Ampacity for 250 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 230 Amps

Specifications

• Size AWG: 250

• Stranding: 35

• Conductor Diameter Inches: 0.52

• Insulation Thickness Inches: 0.65

• Jacket Thickness Inches: 0.008

• O.D. Inches: 0.656

• New Weight lb/1000FT: 296 lbs

• Ampacity at 90°C: 230 Amps
