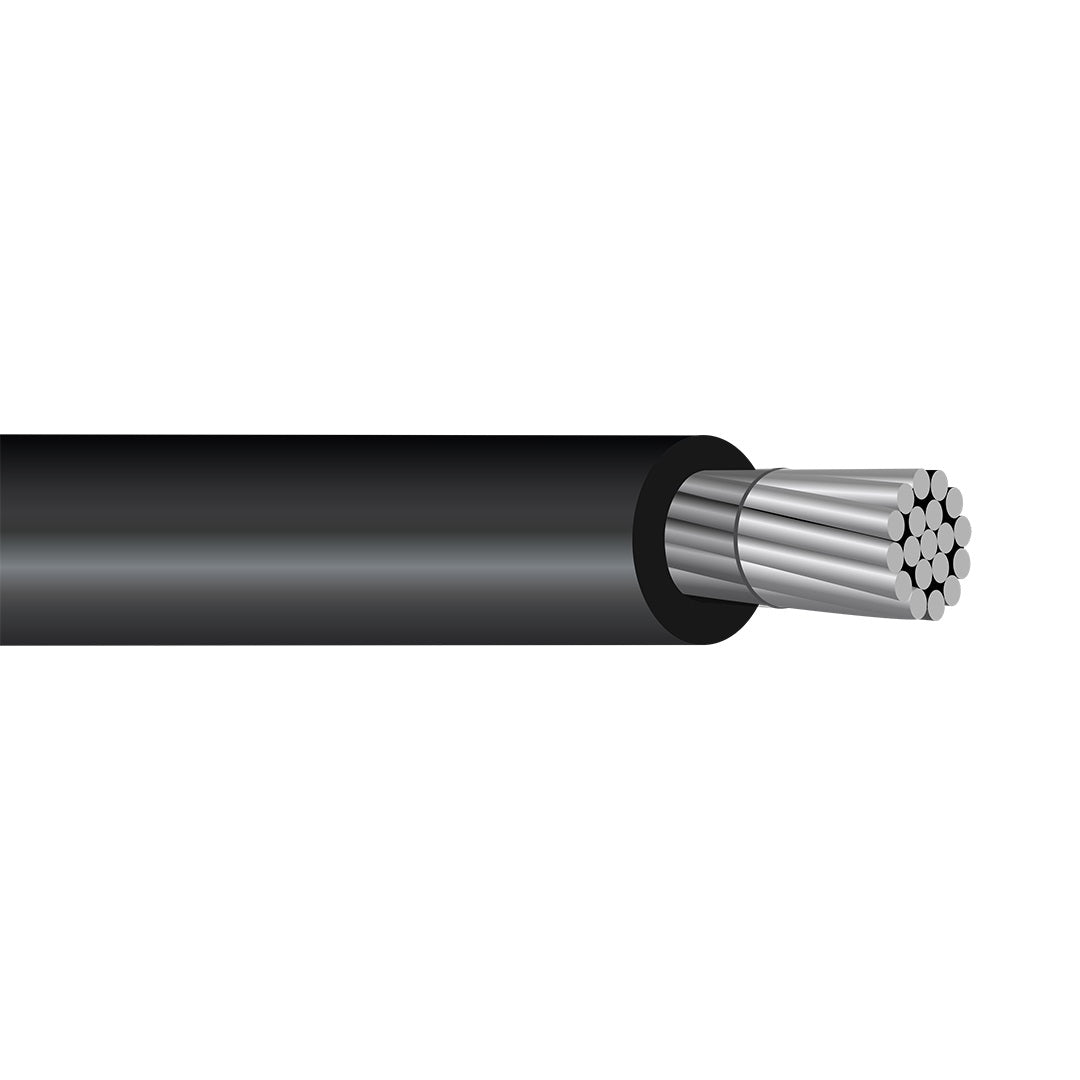

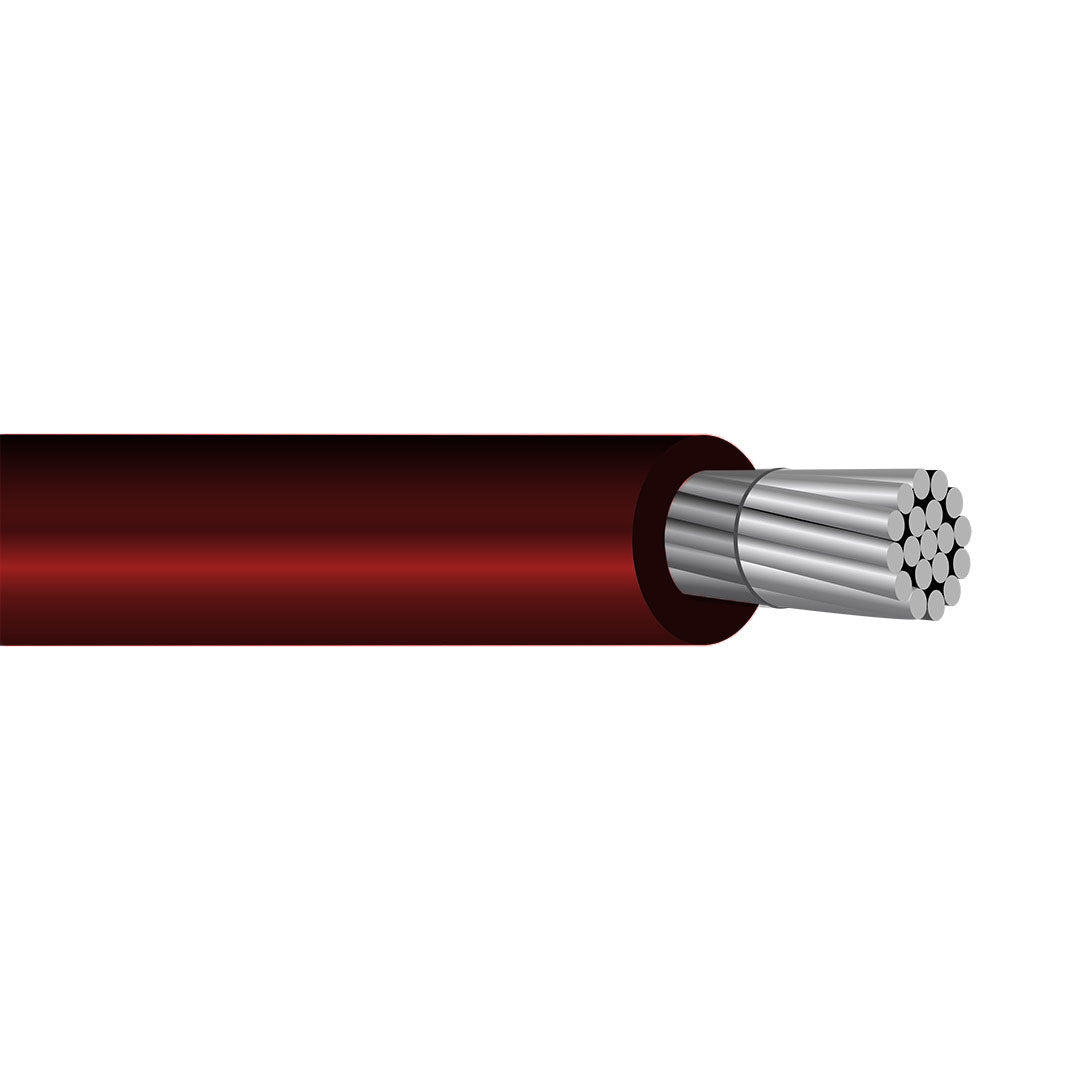

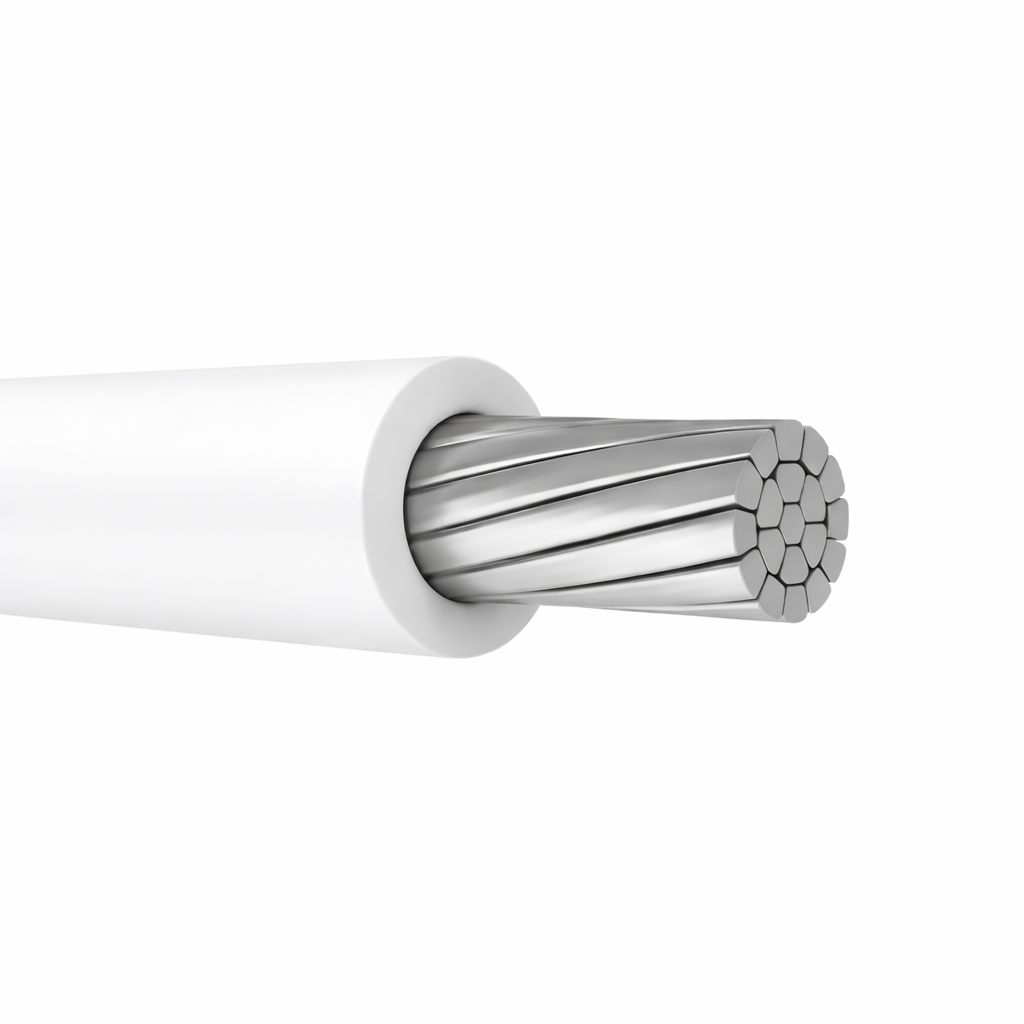

4/0 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

SKU: SKU: NES28765X Download PDF

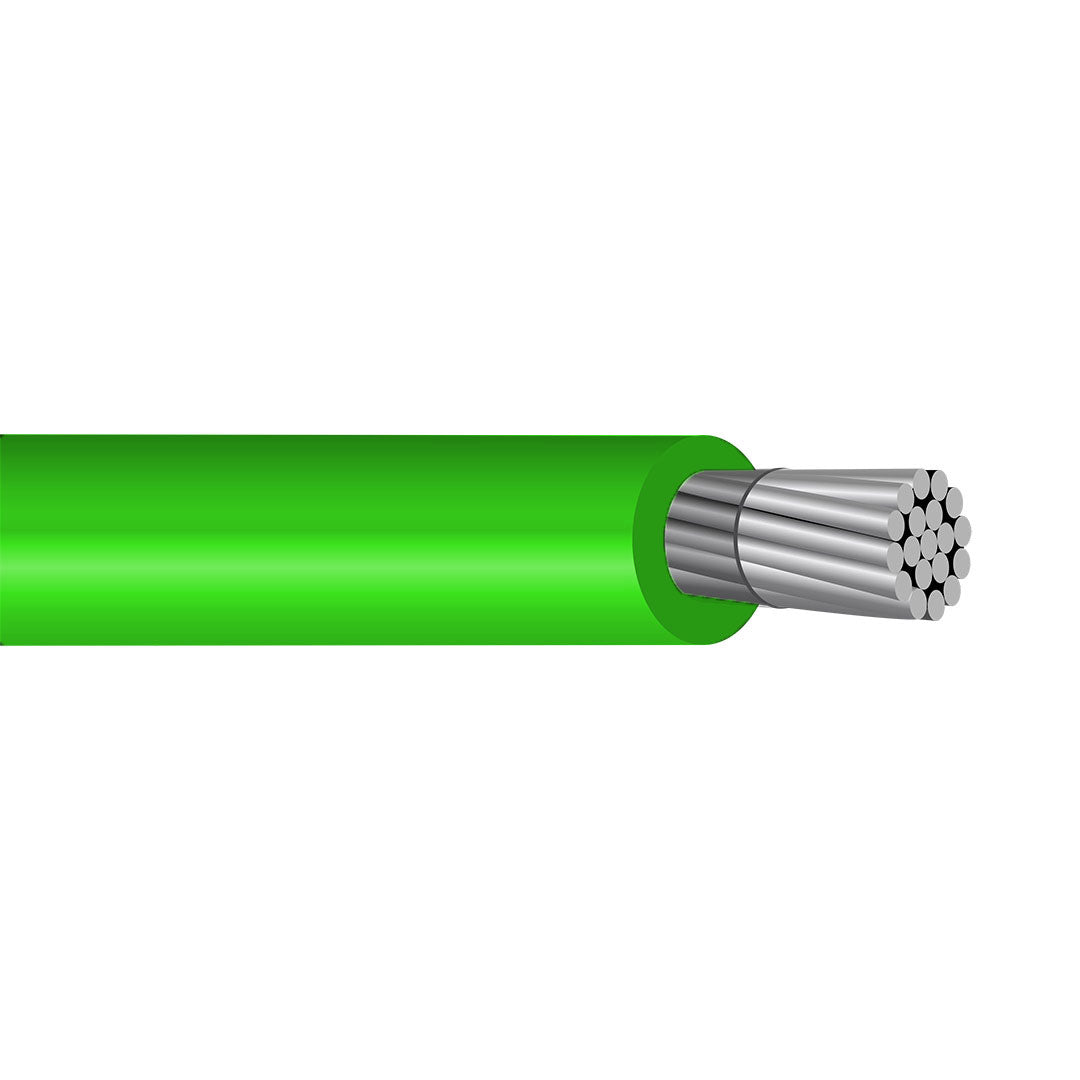

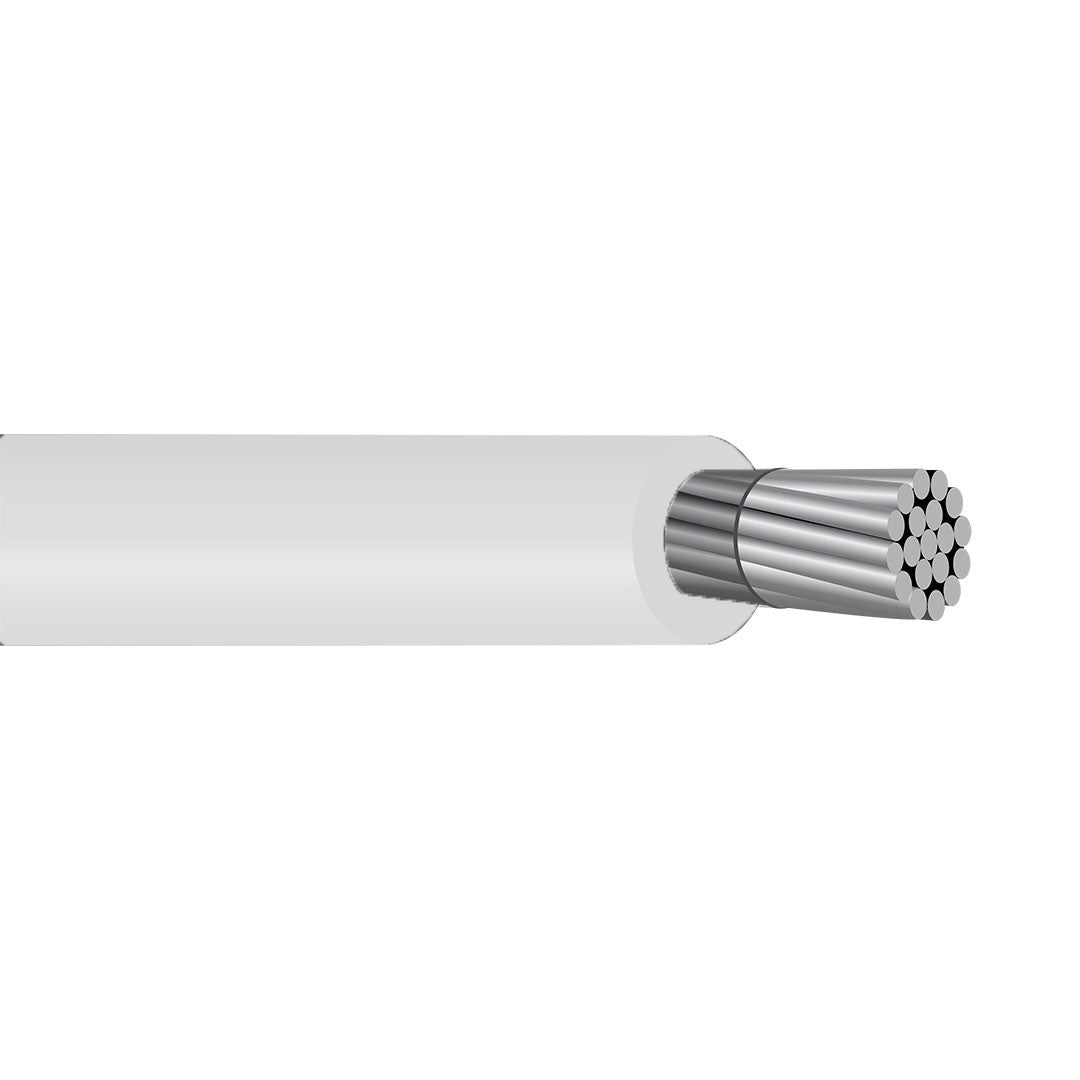

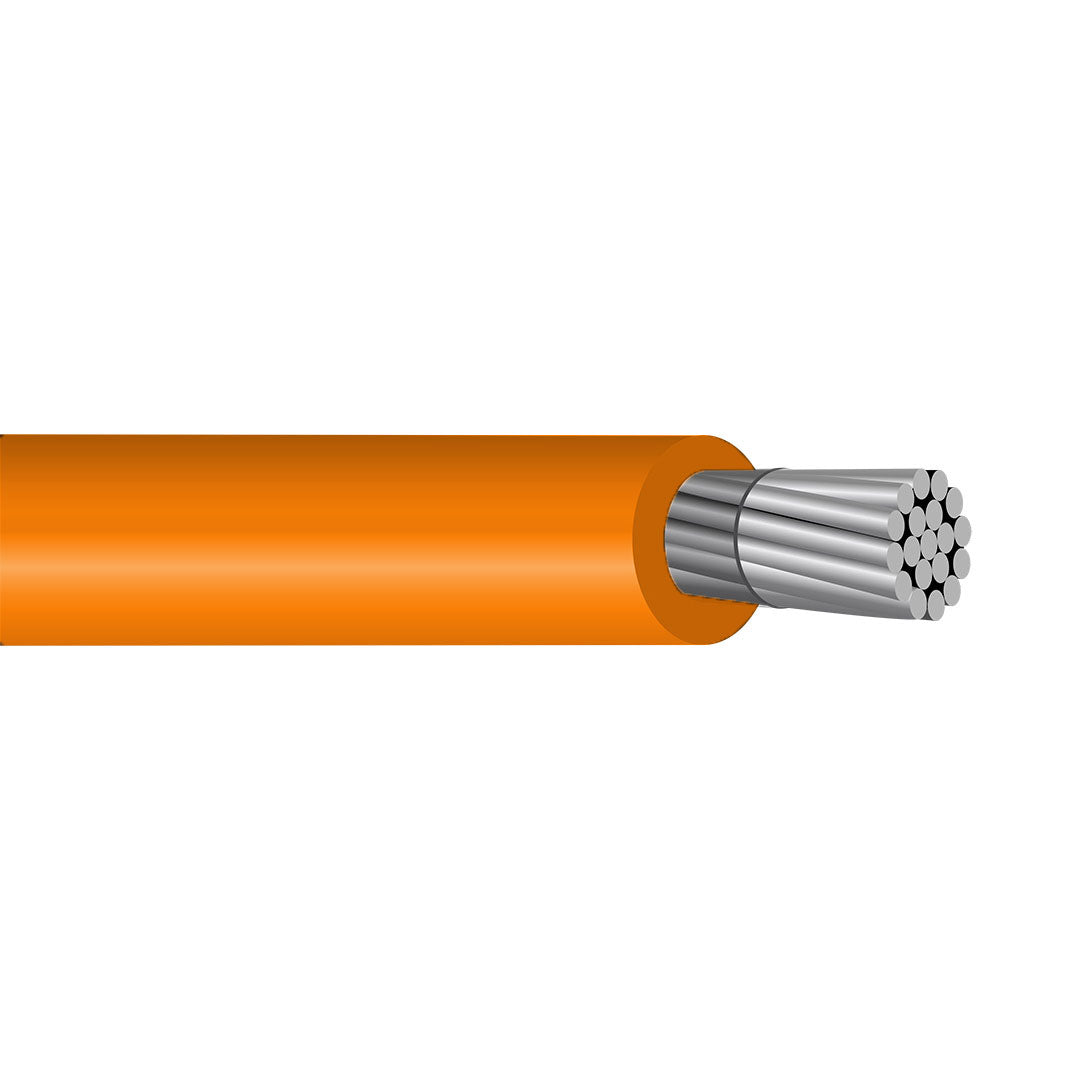

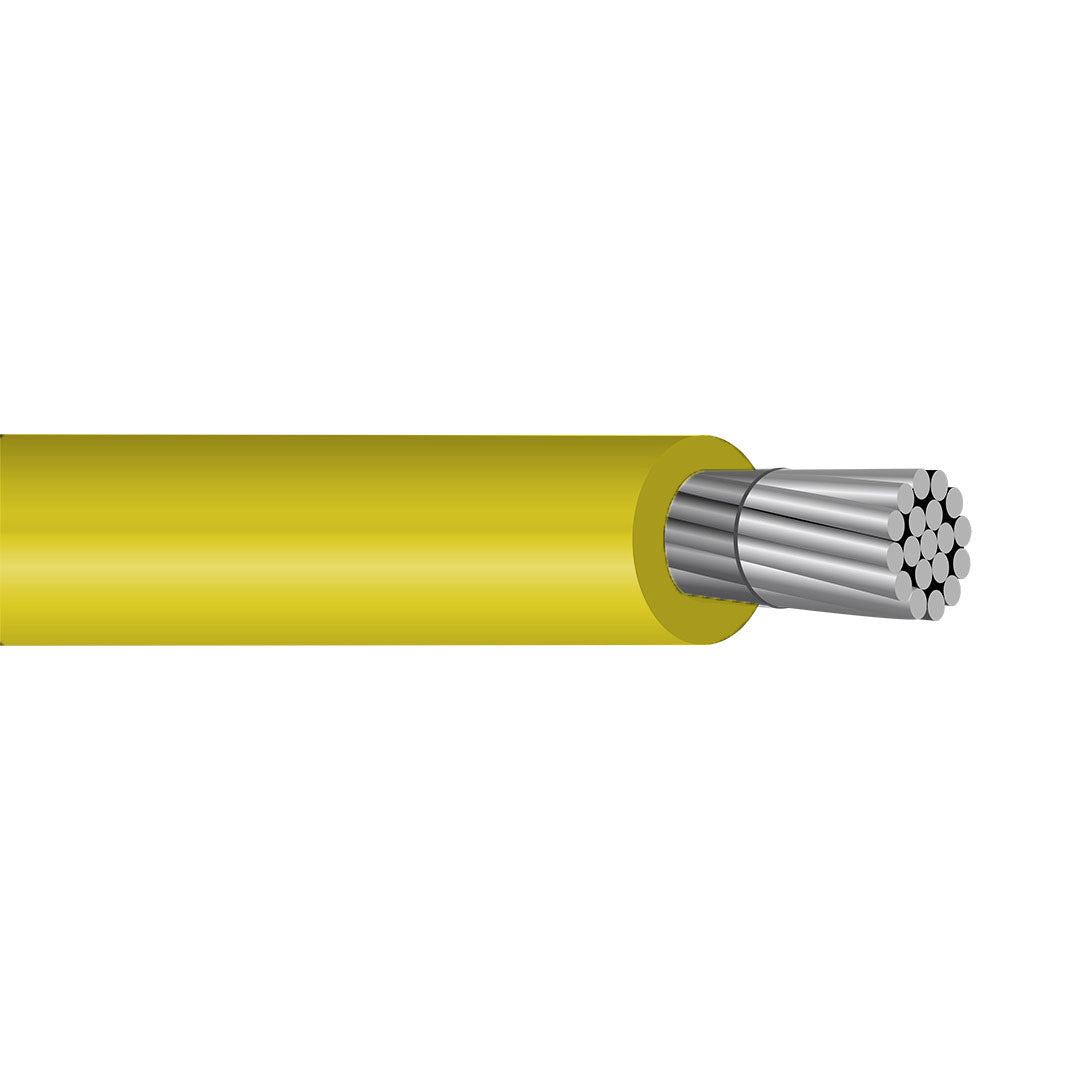

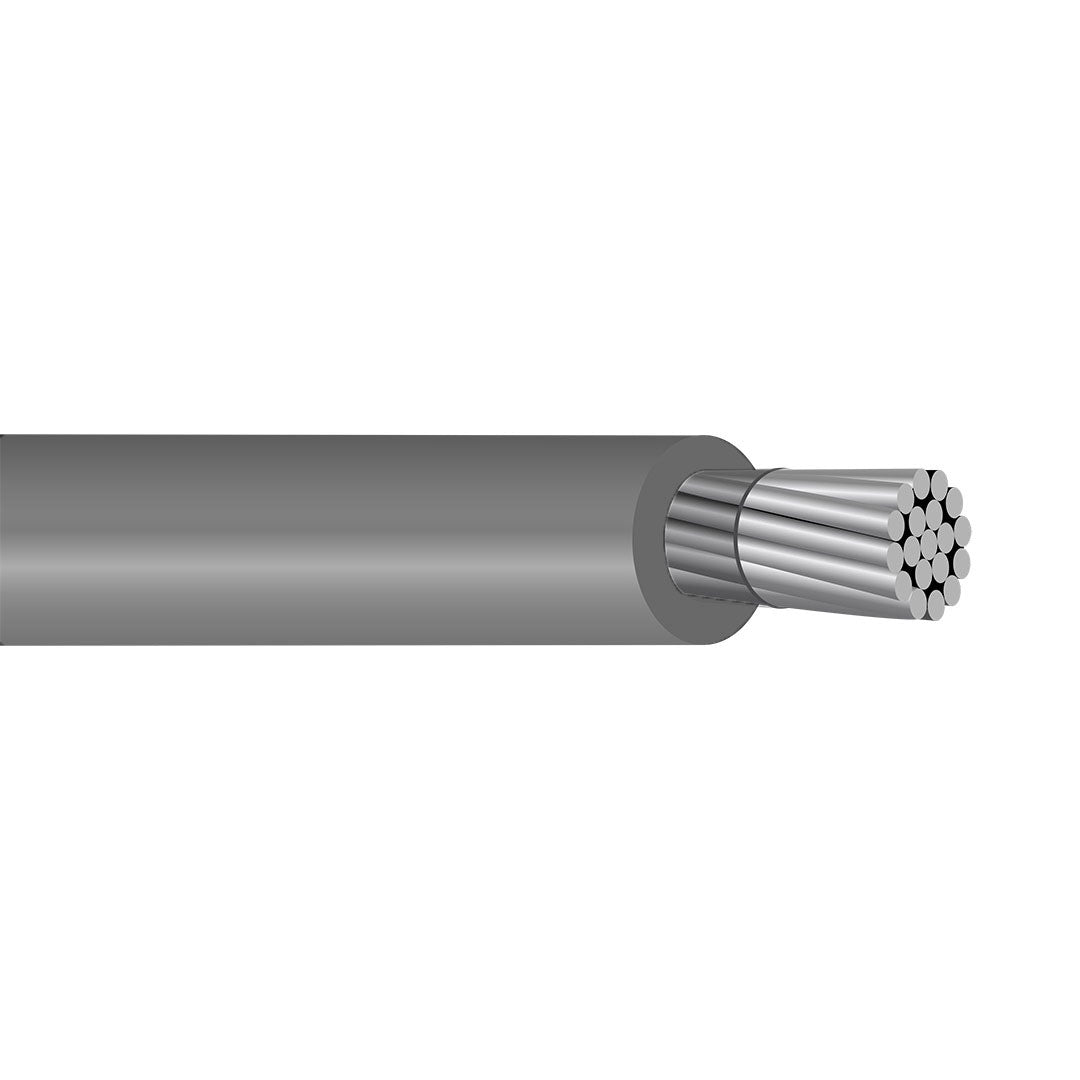

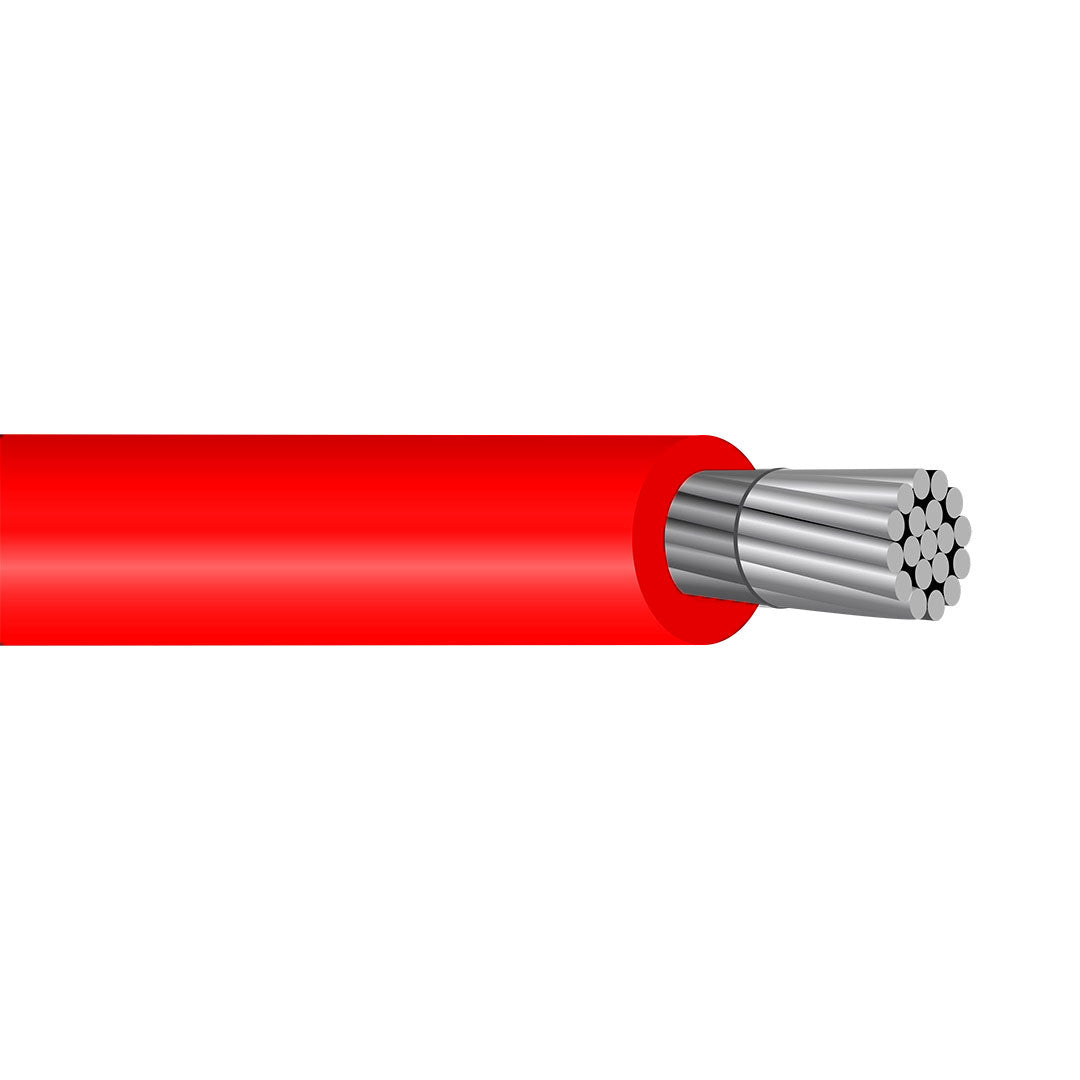

Color Black Blue Green Orange Red White Yellow Brown Gray

Select a gauge:

4/0 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Now $1.45 /FT Web pricing policy

~~BEFORE~~ Now $1.45 /FT Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

4/0 thhn cable, 4/0 thwn cable, 4/0 awg thhn cable, 4/0 awg thwn cable, 4/0 thhn aluminum, 4/0 pvc insulated, 4/0 pvc insulated wire, 4/0 pvc insulated aluminium wire, 4/0 pvc sheathed cable, 4/0 pvc flexible cable.

Conductors:

THHN / THWN-2 / T90 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Compatible with Manufacturer
Priority Wire & Cable :	4/0-01AL-THHN
Classic Wire & Cable :	A4/0-01THHN
Southwire :	Black : 56267101 Blue : 56267406 Brown : 56180506 Gray : 56276706 Green : 56276806 Orange : 56180606 Red : 56267306 White : 56267206 Yellow : 56180706

Resources

Applications

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Features

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Allowable Ampacity for 4/0 AWG THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 205 Amps

Specifications

• Size AWG: 4/0

• Stranding: 18

• Conductor Diameter Inches: 0.476

• Insulation Thickness Inches: 0.55

• Jacket Thickness Inches: 0.007

• O.D. Inches: 0.589

• New Weight lb/1000FT: 247 lbs

• Ampacity at 90°C: 205 Amps
