2/0 XLP USE-2 RHH RHW-2 Copper Building Wire

2/0 XLP USE-2 RHH RHW-2 Copper Building Wire

SKU: NES2560X   Download PDF

Color
Select a gauge:
  • 2/0 XLP USE-2 RHH RHW-2 Copper Building Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $4.73 /FT   Web pricing policy
BEFORE   $8.00 Now $4.73 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

2/0 XLP USE-2 RHH RHW-2 Copper Building Wire, 2/0 Copper RHH Wire, 2/0 Copper RHH Cable, 2/0 Direct Burial Electrical Cable, 2/0 Direct Burial Power Cable, 2/0 Direct Burial Service Entrance Cable, 2/0 Underground Service Entrance Cable, 2/0 copper wire, 2/0 awg copper underground wire, 2/0 USE cable, 2/0 direct burial burial wire.

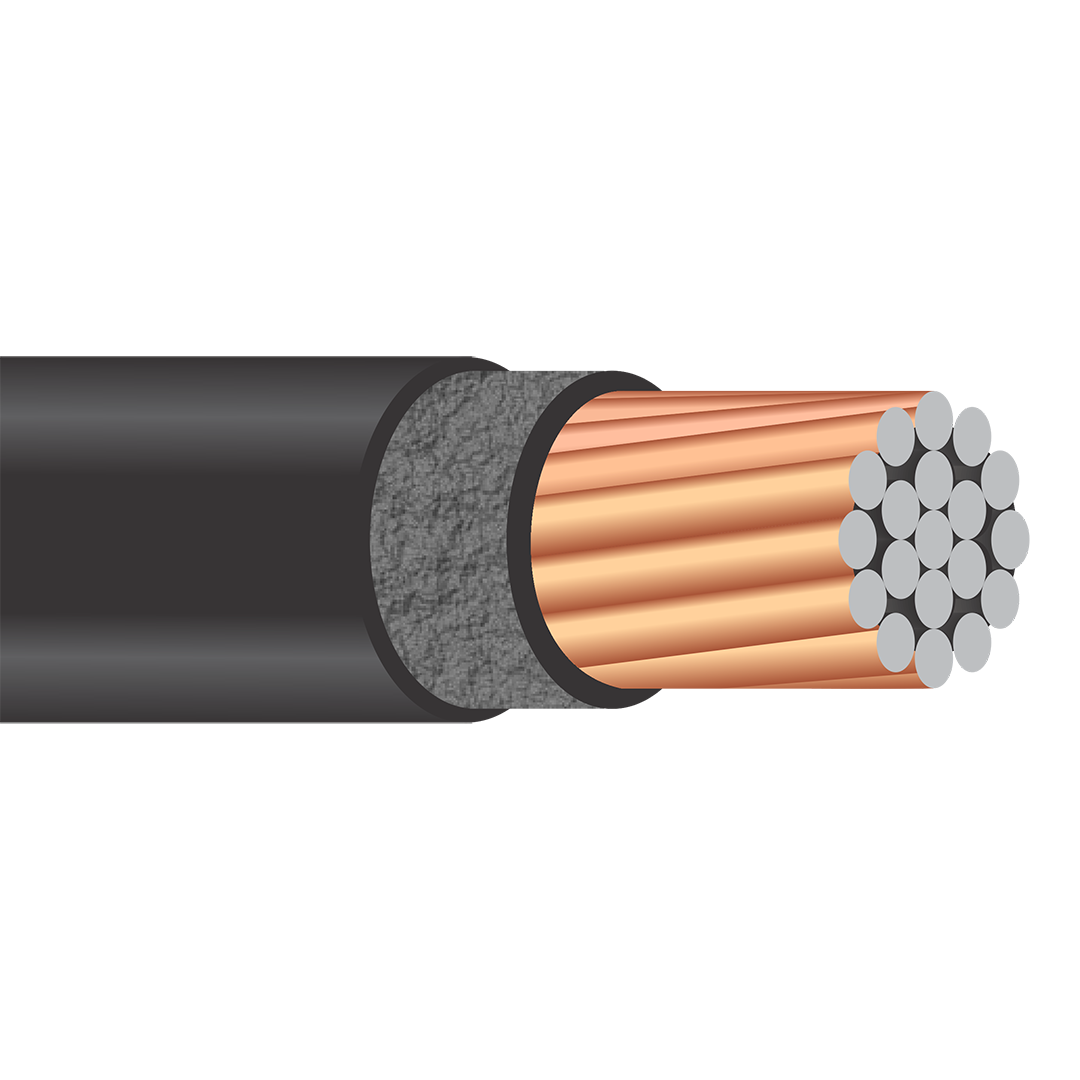

Construction:

Conductor:

RHH/RHW-2/USE-2 conductors are made of annealed soft copper. Compared to aluminum, this conductor performs better in smaller conduits.

Insulation:

The cable has an abrasion, heat, and moisture resistant cross-linked polyethylene insulation (XLPE). The insulation is durable in harsh conditions.

      Compatible with Manufacturer

      Advanced Digital :

      Black : 3020

      Aetna :

      Black : 120-5200

      Draka :

      Black : 6200402bk01

      General Cable :

      Black : 16602.2152

      Omni Cable :

      Black : M62/0ST-01

      Priority Wire & Cable :

      Black : 2/0-01XLPUSESTR

      Houston Wire & Cable :

      Black : HW00320101

      Southwire :

      Black : 113522
      Green : 591255



      Resources
      Applications
      Type RHH/RHW-2/USE-2 is a versatile building wire suitable for a variety of applications. The cable is rated at 600V. It is used with conduit according to the specifications provided by NEC for lighting and power. Connecting photovoltaic modules is one of the typical applications of the cable. RHH/RHW-2 is also used in aerial applications and raceways. The wire can be applied differently according to each specification.

      As Type USE-2, the wire is used as an underground service entrance cable for direct burial. In this case, the temperatures should not exceed 90° C. The wire is used as RHH in dry locations with temperatures not exceeding 90°C. As RHW-2 or USE-2, the cable is used in wet and dry areas with temperatures not exceeding 90°C.
      Features
      Standards:

      • ASTM B-3 Soft Annealed Copper
      • ASTM B-8 Concentric Lay Stranded Conductors
      • ASTM B787 Uni-lay-Stranded Copper Conductors
      • UL Standard 44 Type RHH and RHW
      • UL Standard 854 Type USE-Service Entrance
      • Federal Specifications J-C-30B, ICEA S-66-524 , NEMA WC-7, A-A-59544
      • FAA Spec. L824 Type C Sizes 12-4 AWG as Airport lighting Cable
      • VW-1 available where flame retardancy required. 1/0 and larger rated for CT use.
      • VW-1 available on special request
      • RoHS Compliant

      Allowable Ampacity for Direct Burial: 195 ( 90°C Wet or Dry Conductor Temperature)

      Allowable Ampacity in Duct: 195 Amps ( 90°C Wet or Dry Conductor Temperature)
      Specifications
      • Size AWG: 2/0
      • Weight per 1000 ft: 471 lbs
      • Outside Diameter: 0.564 inches
      • Number of Strands: 19
      • Insulation: XLPE
      • Insulation Thickness: .080
