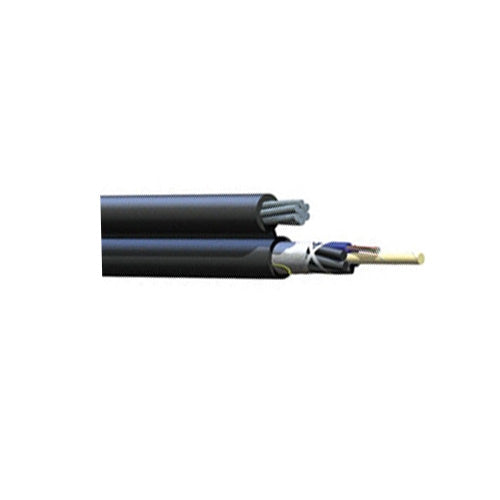

Corning 192EUB-T4101D20 192 Fiber Singlemode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Corning 192EUB-T4101D20 192 Fiber Singlemode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Select gauge from drop-down menu for prices:

Corning 192EUB-T4101D20 192 Fiber Singlemode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Product Details

ALTOS® Figure-8 Loose Tube, Gel-Free Armored Cable, Single-mode (OS2)

Cable Design:
• Central Element: Dielectric
• Fiber Count: 192
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Number of Tube Positions: 18
• Number of Active Tubes: 16
• Buffer Tube Color Coding: Blue, Orange, Green, Brown
• Buffer Tube Diameter: 2.5 mm ( 0.1 in)
• Number of Filling Elements: 2
• Tape: Water-Swellable
• Inner Jacket Material: Polyethylene (PE)
• Number of Ripcords: 3
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
• Outer Jacket Material: Polyethylene (PE)
• Outer Jacket Color: Black

technical specification
fiber count 192
fiber category Single-mode (OS2)
fibers per tube 12
number of tube positions 18
number of active tubes 16
buffer tube diameter 2.5 mm ( 0.1 in)
number of filling elements 2
weight(kg/km) 513
weight(lb/1000ft) 344
nominal outer diameter 19.9 mm (0.78 in)
min. bend radius installation 299 mm (11.8 in)
min. bend radius operation 199 mm (7.8 in)
corning cable part number 192EUB-T4101D20
