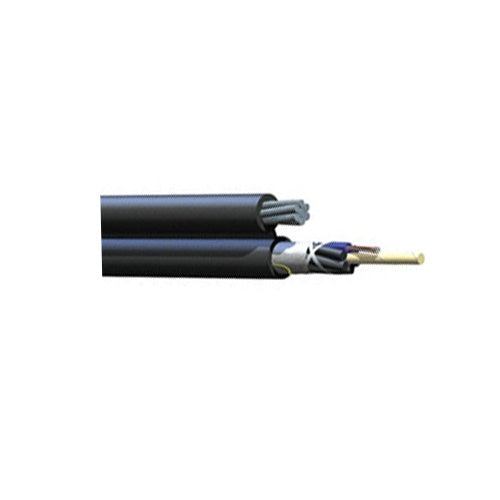

Corning 072KUB-T4130D20 72 Fiber 62.5 µm Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Product Details

ALTOS® Figure-8 Loose Tube, Gel-Free Armored Cable, 62.5 µm multimode (OM1)

Cable Design:
• Central Element: Dielectric
• Fiber Count: 72
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Number of Tube Positions: 6
• Number of Active Tubes: 6
• Buffer Tube Color Coding: Blue, Orange, Green, Brown, Slate, White
• Buffer Tube Diameter: 2.5 mm ( 0.1 in)
• Number of Filling Elements: -
• Tape: Water-Swellable
• Inner Jacket Material: Polyethylene (PE)
• Number of Ripcords: 3
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
• Outer Jacket Material: Polyethylene (PE)
• Outer Jacket Color: Black

technical specification
fiber count 72
fiber category 62.5 µm MM (OM2)
fibers per tube 12
number of tube positions 6
number of active tubes 6
buffer tube diameter 2.5 mm ( 0.1 in)
number of filling elements -
weight(kg/km) 396
weight(lb/1000ft) 266
nominal outer diameter 14.3 mm (0.56 in)
min. bend radius installation 215 mm (8.4 in)
min. bend radius operation 143 mm (5.6 in)
corning cable part number 072KUB-T4130D20
