Product Details

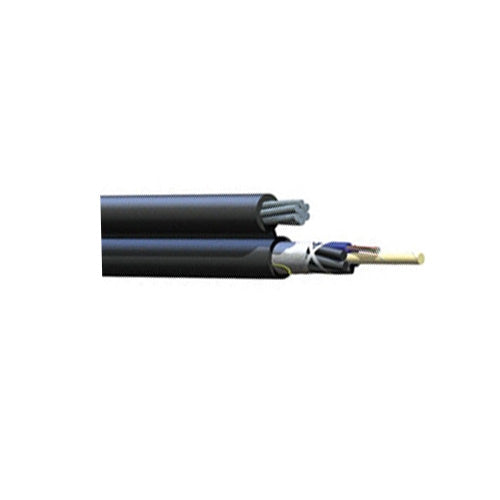

ALTOS® Figure-8 Loose Tube, Gel-Free Armored Cable, 50 µm multimode (OM2)
Cable Design:
• Central Element: Dielectric
• Fiber Count: 96
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Number of Tube Positions: 8
• Number of Active Tubes: 8
• Buffer Tube Color Coding: Blue, Orange, Green, Brown, Slate, White, Red, Black
• Buffer Tube Diameter: 2.5 mm ( 0.1 in)
• Number of Filling Elements: -
• Tape: Water-Swellable
• Inner Jacket Material: Polyethylene (PE)
• Number of Ripcords: 3
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
• Outer Jacket Material: Polyethylene (PE)
• Outer Jacket Color: Black
| technical specification | |
| fiber count | 96 |
| fiber category | 50 µm MM (OM2) |
| fibers per tube | 12 |
| number of tube positions | 8 |
| number of active tubes | 8 |
| buffer tube diameter | 2.5 mm ( 0.1 in) |
| number of filling elements | - |
| weight(kg/km) | 432 |
| weight(lb/1000ft) | 290 |
| nominal outer diameter | 0.63 in |
| min. bend radius installation | 240 mm (9.4 in) |
| min. bend radius operation | 160 mm (6.3 in) |
| corning cable part number | 096TUB-T4131D20 |
