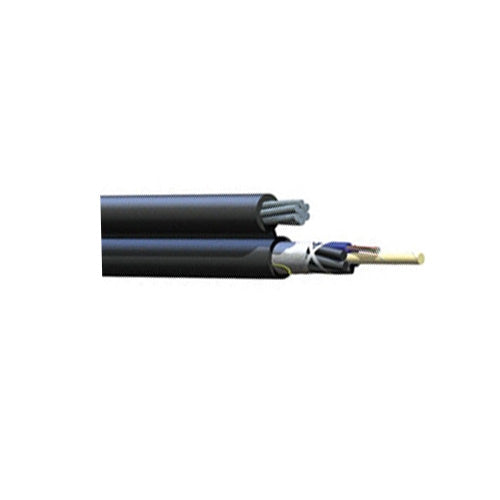

Corning 216TUB-T4131D20 216 Fiber 50 µm Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Corning 216TUB-T4131D20 216 Fiber 50 µm Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Select gauge from drop-down menu for prices:

Corning 216TUB-T4131D20 216 Fiber 50 µm Multimode Altos Figure-8 Loose Tube Gel-Free Armored Cable

Product Details

ALTOS® Figure-8 Loose Tube, Gel-Free Armored Cable, 50 µm multimode (OM2)

Cable Design:
• Central Element: Dielectric
• Fiber Count: 216
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Number of Tube Positions: 18
• Number of Active Tubes: 18
• Buffer Tube Color Coding: Blue, Orange, Green, Brown
• Buffer Tube Diameter: 2.5 mm ( 0.1 in)
• Number of Filling Elements: -
• Tape: Water-Swellable
• Inner Jacket Material: Polyethylene (PE)
• Number of Ripcords: 3
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
• Outer Jacket Material: Polyethylene (PE)
• Outer Jacket Color: Black

technical specification
fiber count 216
fiber category 50 µm MM (OM2)
fibers per tube 12
number of tube positions 18
number of active tubes 18
buffer tube diameter 2.5 mm ( 0.1 in)
number of filling elements -
weight(kg/km) 513
weight(lb/1000ft) 344
nominal outer diameter 19.9 mm (0.78 in)
min. bend radius installation 299 mm (11.8 in)
min. bend radius operation 199 mm (7.8 in)
corning cable part number 216TUB-T4131D20
