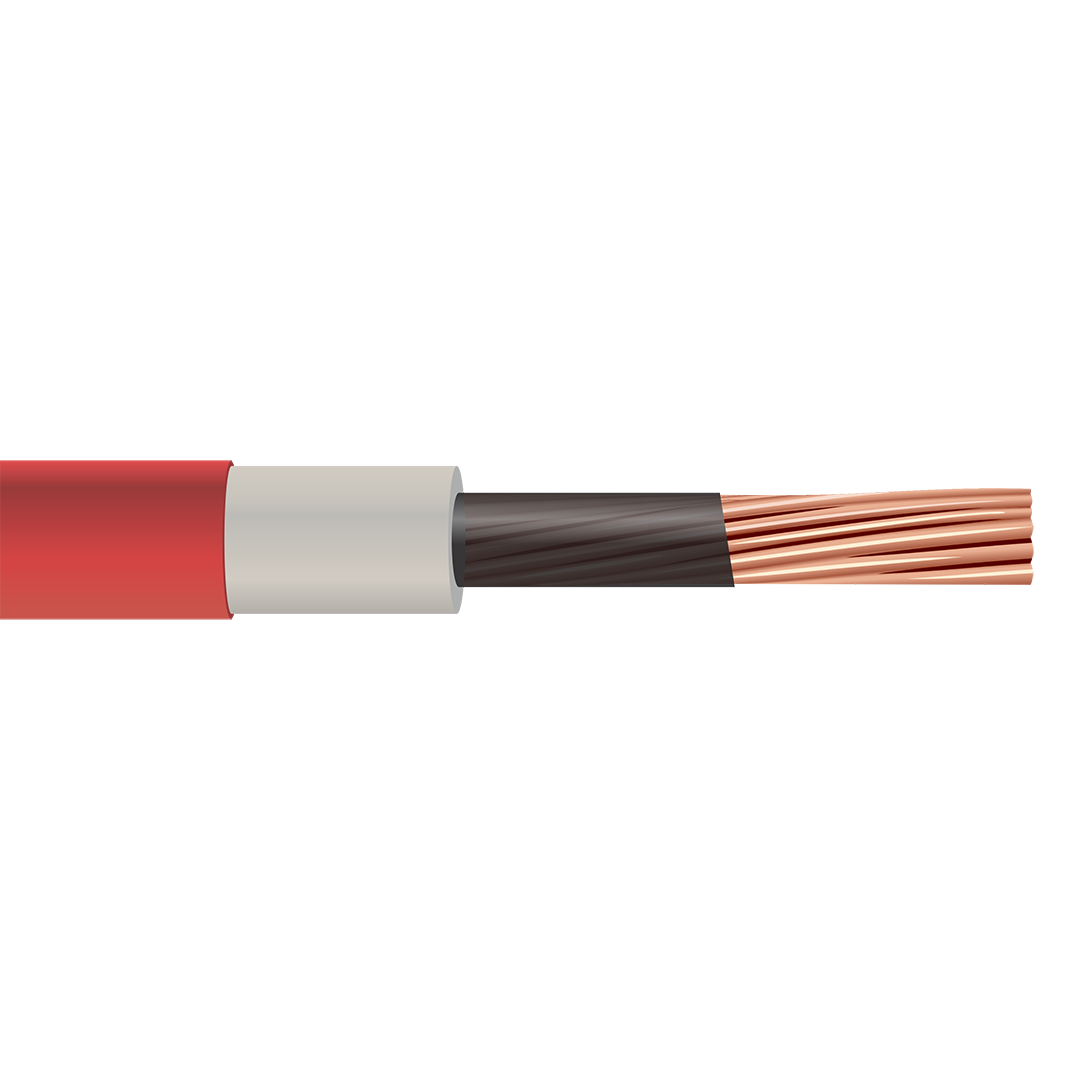

350 MCM Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable

350 MCM Jumper Cable Single Conductor 5KV/15KV Portable Power Red Cable

SKU: SKU:   Download PDF

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price Now $18.38 /FT   Web pricing policy
Regular price BEFORE   Sale price Now $18.38 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Also Known As:

350 AWG 5kv/15kv Booster Cable, 350 AWG 5kv/15kv Jumper Lead, 350 AWG 5kv/15kv Battery Cable, 350 AWG 5kv/15kv Battery Jumper Cable, 350 AWG 5kv/15kv Battery Booster Cable.

Conductor:

Flexible strand tin-coated copper, ASTM B-172 and ICEA S-75-381

Separator:

Synthetic semi-conducting tape separator between the conductor and insulation

Insulation:

Ethylene-propylene rubber (EPR), UL 1072

Jacket:

Red heavy duty CPE thermoset compound, ICEA S-75-381 sec 3.22



Compatible with Manufacturer

Omni Cable : Red : B435001
Southwire : Red : 56942899
Houston Wire : Red : HW25535001
Priority Wire Cable :
Red : 350-0115KVJP
Resources
Applications
Jumper Cable Single Conductor 5kv/15kv Portable Power Red Cable is Suitable as a flexible power lead for temporary connections and other industrial applications. They are also used in by-pass portions of aerial power lines and in equipment where a non- shielded flexible cable is required.

The electrical cables are highly flexible and are resistant to oil, weather, water, and sunlight. The temperature range of the cable is between 40ºC and +90ºC. The electrical cable is available in 5kv and 15kv varieties.
Features
Standards:

•ICEA S-97-682
•ICEA S-75-381/NEMA WC-58
•ASTM B172
•ASTM B 33
•UL 1072

•Allowable Ampacity For 350 AWG Jumper Cable Single Conductor 5kv/15kv Portable Power Red Cable: 543 Amps
Specifications
•AWG Size: 350
•Strands: 1361x0.159
•Insulation Thickness: 0.175 inches
•Jacket Thickness: 0.080 inches
•Outside Diameter: 1.305 inches
•Weight: 1.58 lbs per ft
