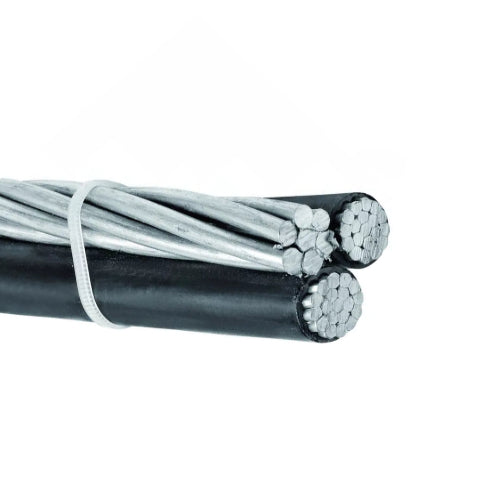

1/0-1/0-1/0 Gammarus Aluminum Triplex Overhead

1/0-1/0-1/0 Gammarus Aluminum Triplex Overhead

SKU: SKU: NES19005X   Download PDF

Select a gauge:
  • 1/0-1/0-1/0 Gammarus Aluminum Triplex Overhead
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price Now $2.82 /FT   Web pricing policy
Regular price BEFORE   $5.00 Sale price Now $2.82 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Also Known As:

1/0-1/0-1/0 gammarus triplex aluminum wire, 1/0-1/0-1/0 gammarus triplex overhead wire, 1/0-1/0-1/0 gammarus aluminum triplex, 1/0-1/0-1/0 gammarus triplex conductor, 1/0-1/0-1/0 gammarus overhead aluminum wire, 1/0-1/0-1/0 gammarus aluminium overhead cables, 1/0-1/0-1/0 gammarus overhead service drop conductors.

Conductors:

Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

Resources



Applications
Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.
Features
Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S-76 - 474

Allowable Ampacity for 1/0-1/0-1/0 Gammarus Aluminum Triplex Overhead XLP at 90°C: 205 Amps

Allowable Ampacity for 1/0-1/0-1/0 Gammarus Aluminum Triplex Overhead Poly at 75°C: 160 Amps
Specifications
• Size AWG: 1/0

• Stranding: 7

• Insulation Thickness (mils): 0.060

• Neutral Size AWG: 1/0

• Weight lbs./1000ft: XLP: 390

• Weight lbs./1000ft: Poly: 384

• Ampacity: XLP: 205

• Ampacity: Poly: 160
