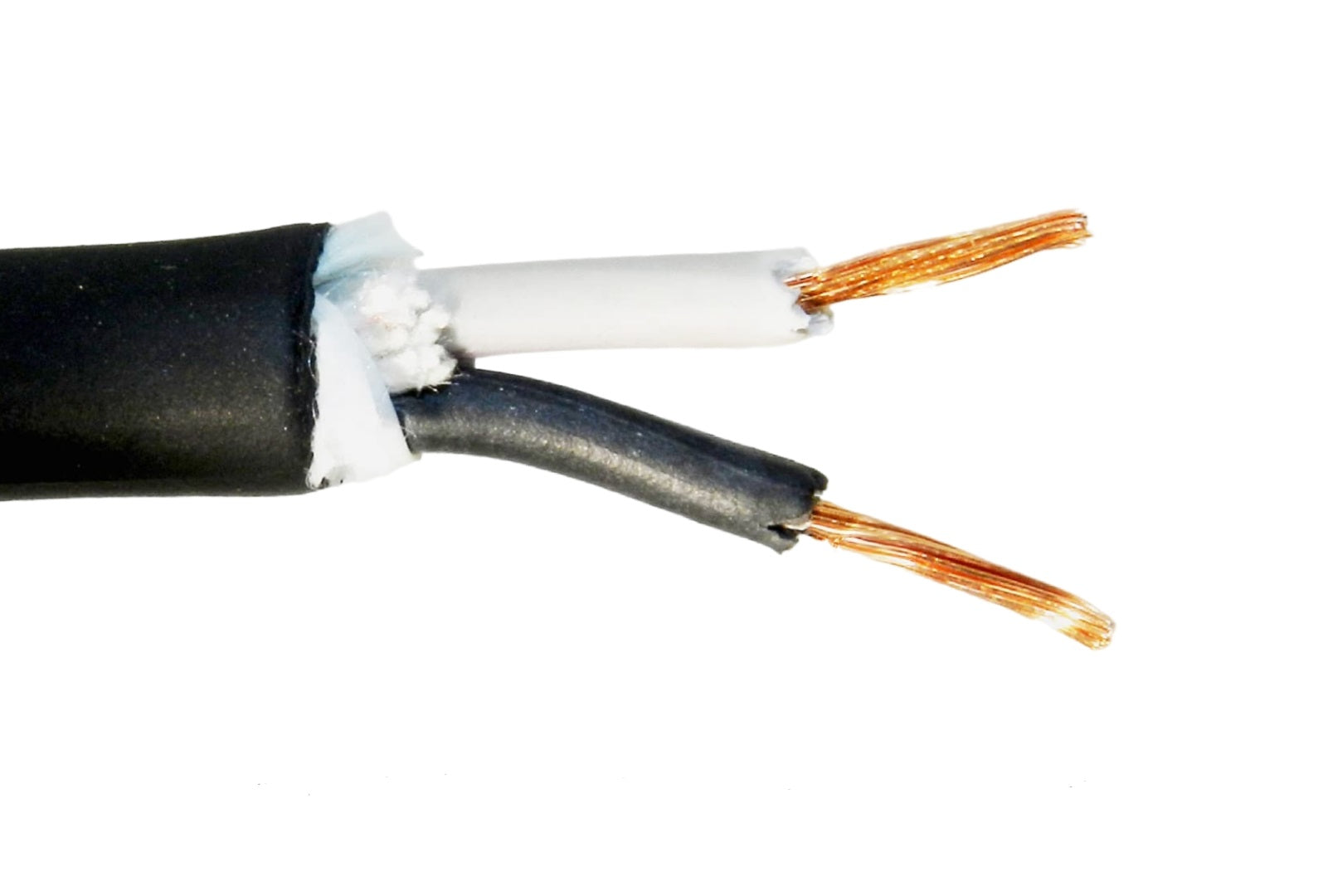

10/2 SJEOOW Portable Power Cable 300 V - Black

Allowable Ampacity For 10/2 SJEOOW Portable Black Cord-600V: 30 Amps

Applications:

SJEOOW Portable Black Cord 300V is a highly flexible electrical cable designed for limited power distribution in heavy-duty motors, industrial control, and portable power use both indoors and outdoors. SJEOOW is an acronym insinuating a card service cord (S) that can effectively carry out the functions of a junior service cord (J). It has a PVC thermoplastic elastomer jacket (E), oil-resistant insulation (OO), and a weather/water resistant coating (W). The junior status of the electrical cable indicates that it is designed for 300V applications.

Also Known As:

10/2 SJEOOW Black Portable Power Cable, 10/2 Black Service Junior Thermoplastic Elastomer Cable, 10/2 Black SJEOOW, 10/2 Black SJEOOW Flexible Power Cord, 10/2 Black Junior Service Cord.

Standards:

• UL Standard 62
• NEC 501.140 Class I Div. 2
• CSA 22. 2 No. 49
• MSHA
• NEC Article 400
• Federal Spec #JC580B
• RoHS

Construction:

Conductor:

Stranded, bare, and fully annealed copper conductor, Class K per ASTM B174. Suitable for harsh environments.

Insulation:

Black T*prene® Oil resistant Thermoplastic Elastomer (TPE) with a color-coding for easy identification. The main feature of the insulation is its excellent resistance to oil. It is also safe from industrial chemicals, abrasion, weather, and depreciating effects of sunlight.

Jacket:

SJEOOW portable cord has a tough and flexible jacket made of a black-colored thermoplastic elastomer. It is perfect for light-duty industrial-grade cable. The jacket protects the portable cord from sunlight, water, oil, ozone, and industrial chemicals. The jacket is easily transportable.

Specification:

• AWG Size: 10
• Number of Conductors: 2
• Stranding:104/30
• Insulation Thickness: 0.045 inches
• Outside Diameter: 0.545 inches
• Weight: 155 lbs

[/short]

CONDUCTORS:

• 18 AWG – 10 AWG fully annealed stranded bare copper
• Class K stranding per ASTM B 174

INSULATION:

• Oil resistant Thermoplastic Elastomer (TPE)
• Brilliant colors for easy identification

JACKET:

• Water, sunlight, and oil resistant, flame-retardant Black Seoprene® Thermoplastic Elastomer (TPE)

FEATURES:

• Has brilliant resistance against towards abrasion, ozone, sunlight, chemical and oil resistance, and also towards water resistant with
• Great with premuim flexibility
• Holds fillers of non-wicking lightweight polypropylene.
• Applicable for being submersed in water.

APPLICATIONS:

• Compacted for all industrial machinery and compressors.
• Equipped for conveyor, and automated production.
• Applicable for all Indoor and outdoor temporary power situations.

INDUSTRY APPROVALS:

• UL Standard 62
• NEC 501.140 Class I Div. 2
• CSA 22. 2 No. 49
• MSHA
• NEC Article 400
• Federal Spec #JC580
• RoHS
