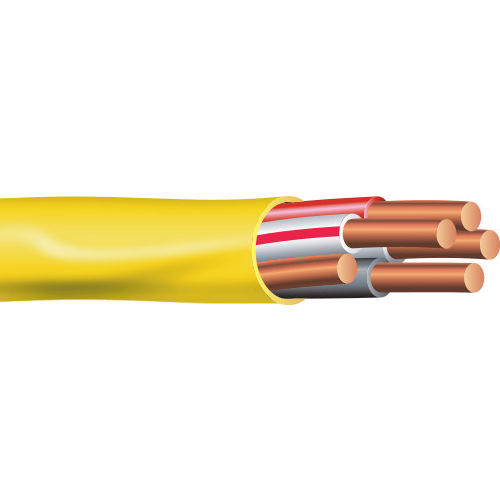

12-2/2 W/GRND NM-B 600V Solid Yellow

SKU: SKU: NES034 Download PDF

Select a gauge:

12-2/2 W/GRND NM-B 600V Solid Yellow

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Now $1.26 /FT Web pricing policy

~~BEFORE~~ Now $1.26 /FT Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

12-2/2NM-B Wire,12-2/2NM-B Cable,12-2/2Non-Metallic Sheathed Cable,12-2/2Non-Metallic Sheathed Wire, 12-2/2 W Grnd NM-B, 12-2/2 NM-B Southwire, 12-2/2 Southwire, Southwire 55048401.

Conductors:

The cable has 2/2 conductors with a bare ground wire. The conductors are made of soft Solid Solid bare annealed copper.

Insulation:

The cable has a polyvinyl chloride (PVC) insulation, making it perfect for harsh conditions.

Jacket:

PVC jacket comes in yellow, orange, white, and black colors.

Compatible with Manufacturer
Southwire :	Yellow : 550484

Resources

Applications

Type NM-B Copper Building Wire is commonly applied in residential building wiring as a branch circuit for switches and outlets. It can also be used for various building purposes, both inside and outside (the temperature should not exceed 90 °C). NM-B electrical wire can be used in air voids in tile walls. The voltage rating of the cable is 600 volts. The electrical wire is easily installed because it is specifically designed for easier pulling.

Features

Standards:
•ASTM B-3 and B-8
•UL Standard 83
•UL Standard 719
•Federal Specification A-A-59544
•National Electrical Code, NFPA 70. 2011 Edition
•RoHS/ REACH

•Allowable Ampacity for 12-2/2 W/GRND NM-B: 20 Amps

Specifications

•Size AWG: 12
•Weight per 1000 ft
132 lbs
•Conductors: 2/2
•Number of Strands: 1 Solid
•Insulation: PVC
•Insulation Thickness: 19 mils
