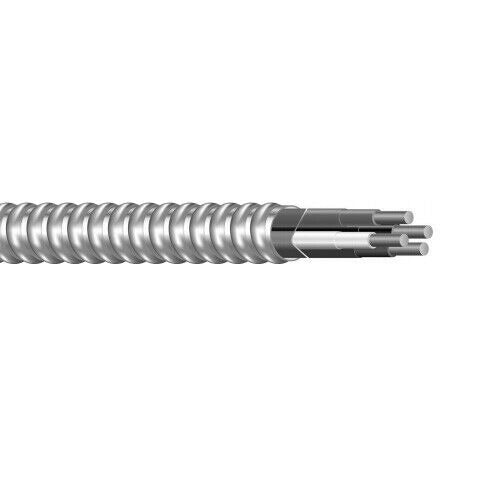

10/3 Stranded MC Copper Aluminum Armored W/ GRND PVC Jacket
10/3 Stranded MC Copper Aluminum Armored W/ GRND PVC Jacket
SKU: SKU:
Select a gauge:
- 10/3 Stranded MC Copper Aluminum Armored W/ GRND PVC Jacket
- 10/3 Stranded MC Copper Aluminum Armored W/ GRND PVC Jacket
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Shipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
10/3 W/GRND MC Stranded
| Technical Specifications: | |
| Ground Wire Size (AWG): | 10 |
| Ground Wire No. Strands: | Solid |
| Size AWG: | 10/3 |
| Stranding: | 19 |
| Diameter Steel Core (Inches): | .607 |
| Weight Per 1000ft Total (Lbs.): | 200 |
| Allowable Ampacity 60C (Amps): | 30 |
| Allowable Ampacity 75C (Amps): | 30 |
| Allowable Ampacity 90C (Amps): | 30 |
Applications:
Type MC Cable is suitable for use as follows:
- Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
- Power, lighting, control, and signal circuits.
- Fished or embedded in plaster.
- Concealed or exposed installations.
- Environmental air-handling spaces per NEC 300.22 (C).
- Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
- Installation in cable tray and approved raceways.
Standards & References:
Type MC Cable meets or exceeds the requirements of UL Standard 83, UL Standard 1569 for Type
MC, UL Standard 1685, Federal Specification A-A59544 (formerly J-C-30B), Jacketed & Non Jacketed will both pass " UL Test" & "FT4/IEEE 1202" (70,000 Btu/hr) Vertical Cable Tray Flame Test, and the National Electrical Code.
Type MC Cable is listed for use in UL 1, 2, and 3 Hour Through-Penetration Firestop Systems.
