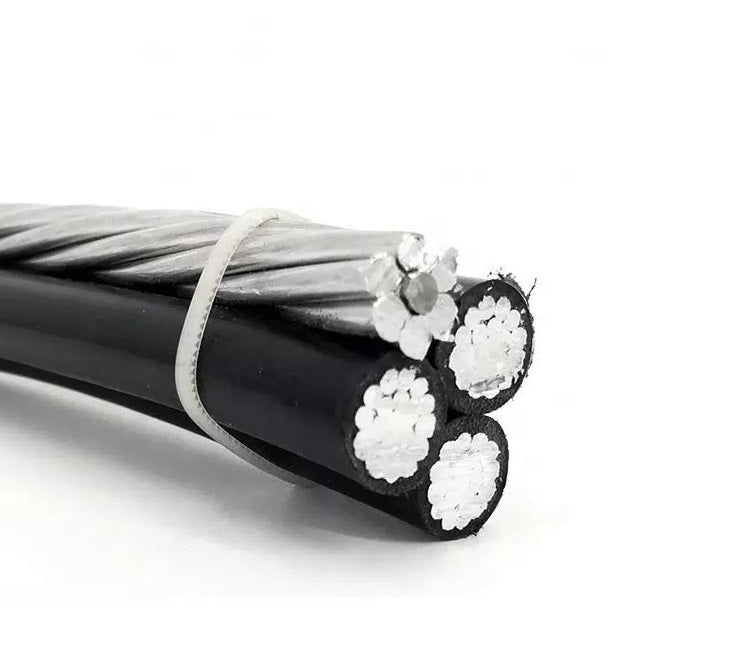

4-4-4-4 Hackney Aluminum Quadruplex Overhead Service Drop Cable

4-4-4-4 Hackney Aluminum Quadruplex Overhead Service Drop Cable

SKU: NES1973X   Download PDF

Select a gauge:
  • 4-4-4-4 Hackney Aluminum Quadruplex Overhead Service Drop Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.08 /FT   Web pricing policy
BEFORE   Now $1.08 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

4-4-4-4 hackney aluminum quadruplex, 4-4-4-4 hackney overhead service drop, 4-4-4-4 hackney three phase cable, 4-4-4-4 hackney 3 phase cable, 4-4-4-4 hackney 3 phase power cable, 4-4-4-4 hackney 3 phase extension cord, 4-4-4-4 hackney 3 phase aluminum cable, 4-4-4-4 hackney 3 phase electrical cable, 4-4-4-4 hackney three phase power cable, 4-4-4-4 hackney quadruplex wire, 4-4-4-4 hackney quadruplex overhead wire, 4-4-4-4 hackney overhead service entrance cable.

Conductors:

Aluminum quadruplex overhead service drop cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Quadruplex overhead wire has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Quadruplex overhead service entrance cable has a black cross linked polyethylene (XLP) insulation.


Resources
Applications
The electrical cable known as aluminum quadruplex overhead service drop cable supplies three phase power and is also referred to as the three phase cable. The quadruplex overhead wire is designed for service at 600 V or lower (phase to phase), at a maximum conductor temperature of 75°C.

The 3 phase power cable has four conductors, with three of them being live conductors and one being a messenger conductor. The three aluminum quadruplex cable conductors are made of soft aluminum and extruded cross-linked polyethylene insulation, which protects the wire from the harsh outdoor environmental conditions; the messenger of this electrical cable is left bare.
Features
Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S -76 - 474

Allowable Ampacity for 4-4-4-4 Hackney Quadruplex Overhead Aluminum Conductor XLP at 90°C: 100 Amps

Allowable Ampacity for 4-4-4-4 Hackney Quadruplex Overhead Aluminum Conductor Poly at 75°C: 80 Amps
Specifications
• Size AWG: 4

• Stranding: 7/w

• Insulation Thickness (mils): 0.045

• Neutral Size AWG: 4

• Weight lbs./1000ft: XLP: 241

• Weight lbs./1000ft: Poly: 226

• Ampacity: XLP: 100

• Ampacity: Poly: 80
