Compressed air temperature and humidity regulator, cable 2 meters

SKU: SKU: H3021P-2 Download PDF

Select a Variant:

Compressed air temperature and humidity regulator, cable 2 meters

SET THE QTY:

Now $100.00 Web pricing policy

~~BEFORE~~ Now $100.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Resources

Description:

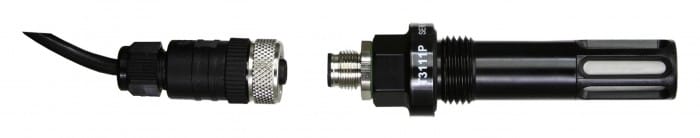

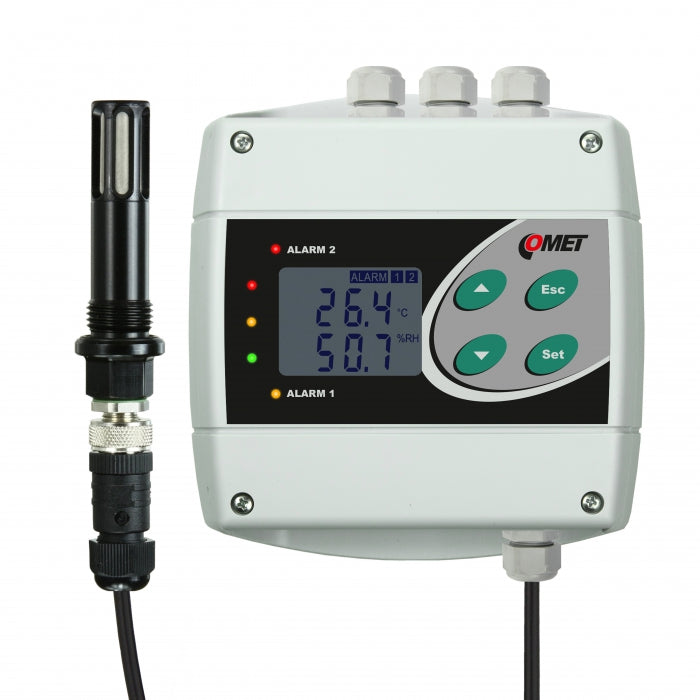

Humidistat, thermostat with two relay outputs T+RH probe from hard anodized duralumin for compressed air up to 25 bars Outdoor, indoor use Humidity, temperature probe on a cable Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy The device is supplied with T+RH probe with 2 meters cable.

Specifications:

TEMPERATURE SENSOR Measuring range:	-30 to +105 °C
Accuracy:	±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution:	0.1 °C
HUMIDITY SENSOR Measuring range:	0 to 100 % RH
DEW POINT Measuring range:	-60 to +80 °C
MEASURING THE MOISTURE OF COMPRESSED AIR Measuring range:	up to 25 bars
Air flow velocity:	up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
RELAY OUTPUTS Quantity:	2
Maximal voltage:	50 V
Maximal current:	2 A
Maximal power:	60 VA
GENERAL TECHNICAL DATA Operating temperature:	-30 to +80 °C
Channels:	1x connectable temperature+humidity probe
Counted values:	dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm:	from built-in beeper - switchable
Power:	9-30 Vdc
Protection class:	IP65 electronics; IP40 sensors
Dimensions:	136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length:	2 meters
