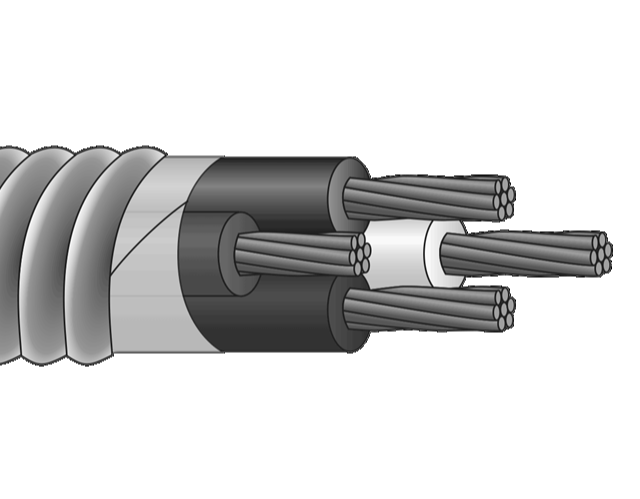

Description: 3 or 4 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers** and green or bare ground conductor. Cable core covered with binder tape and aluminum or galvanized steel interlocked armor. Jacket available upon request.
Application: Cost effective replacement for conduit and wire; for service, branch and feeder circuits; and commercial, industrial & utility applications. For use in theatres (article 520), motion picture and TV studios (article 530) and places of assembly with more than 100 people.
Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70 Cable
• Tray Rated NEC Article 330 (can be messenger supported)
• Flame Rated: Two-hour Firewall Temperature Rated at 90°C Wet/Dry
• Color Code: 3 Conductor - Black, Red and White (#8 AWG - #1 AWG)
• Method 4 (1/0 AWG and larger) Green Ground (#8 AWG - #1 AWG)
• Bare Ground (1/0 AWG and larger)
• RoHS Compliant
| technical specification: | |
|
size awg or kcmil
|
600 |
| strand (no.) | 61 |
| insulation thickness (mils) | 80 |
| insulated/bare grounding conductor (awg) | 2 |
| diameter over armor (inch) | 2.55 |
| approx. net weight (lb/1000') alum. armor | 6,936 |
| approx. net weight (lb/1000') galv. armor | 7,468 |
|
ampacity*(30°c ambient) 90°c wet/dry
|
475 |
| service wire part number | MC600/3 |
