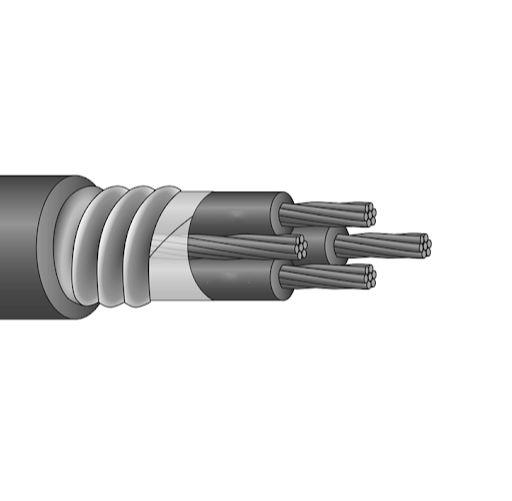

12/5 XHHW-2 Teck 90 Type MC
12/5 XHHW-2 Teck 90 Type MC
SKU: SKU:
Select a gauge:
- 12/5 XHHW-2 Teck 90 Type MC
- 12/5 XHHW-2 Teck 90 Type MC
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Shipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
| Technical Specifications: | |
| Number of Conductors in Cable: | 5 |
| Jacket Thickness (mils): | 100 |
| Nominal Insulation Thickness (mm): | -- |
| Ground Wire Size (AWG): | -- |
| Size AWG: | 12 |
| Stranding: | -- |
| Diameter Complete Cable (O.D.) (Inches): | .850 |
| Weight Per 1000ft Total (Lbs.): | 370 |
| Allowable Ampacity 90C (Amps): | 24+ |
| General Cable Part # | 312910 |
| Nexans item Part # | 383679 |
| Omni Cable Part # | T31205 |
