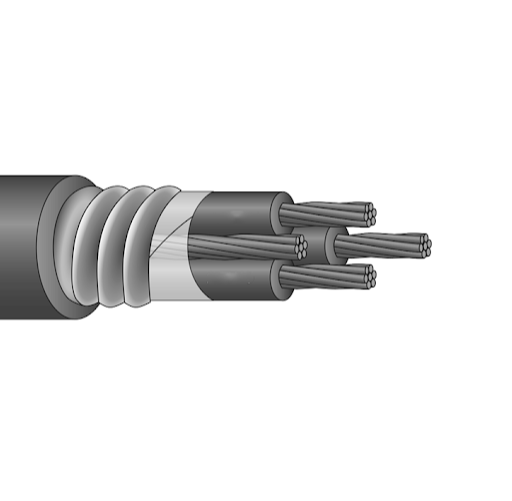

250-3 W/GRND XHHW-2 Teck 90 Type MC
| Technical Specifications: | |
| Number of Conductors in Cable: | 3 |
| Jacket Thickness (mils): | 120 |
| Nominal Insulation Thickness (mm): | 65 |
| Ground Wire Size (AWG): | 1- #4 |
| Size AWG: | 250 |
| Stranding: | 37 |
| Diameter Complete Cable (O.D.) (Inches): | 2.070 |
| Weight Per 1000ft Total (Lbs.): | 3568 |
| Allowable Ampacity 90C (Amps): | 290 |
