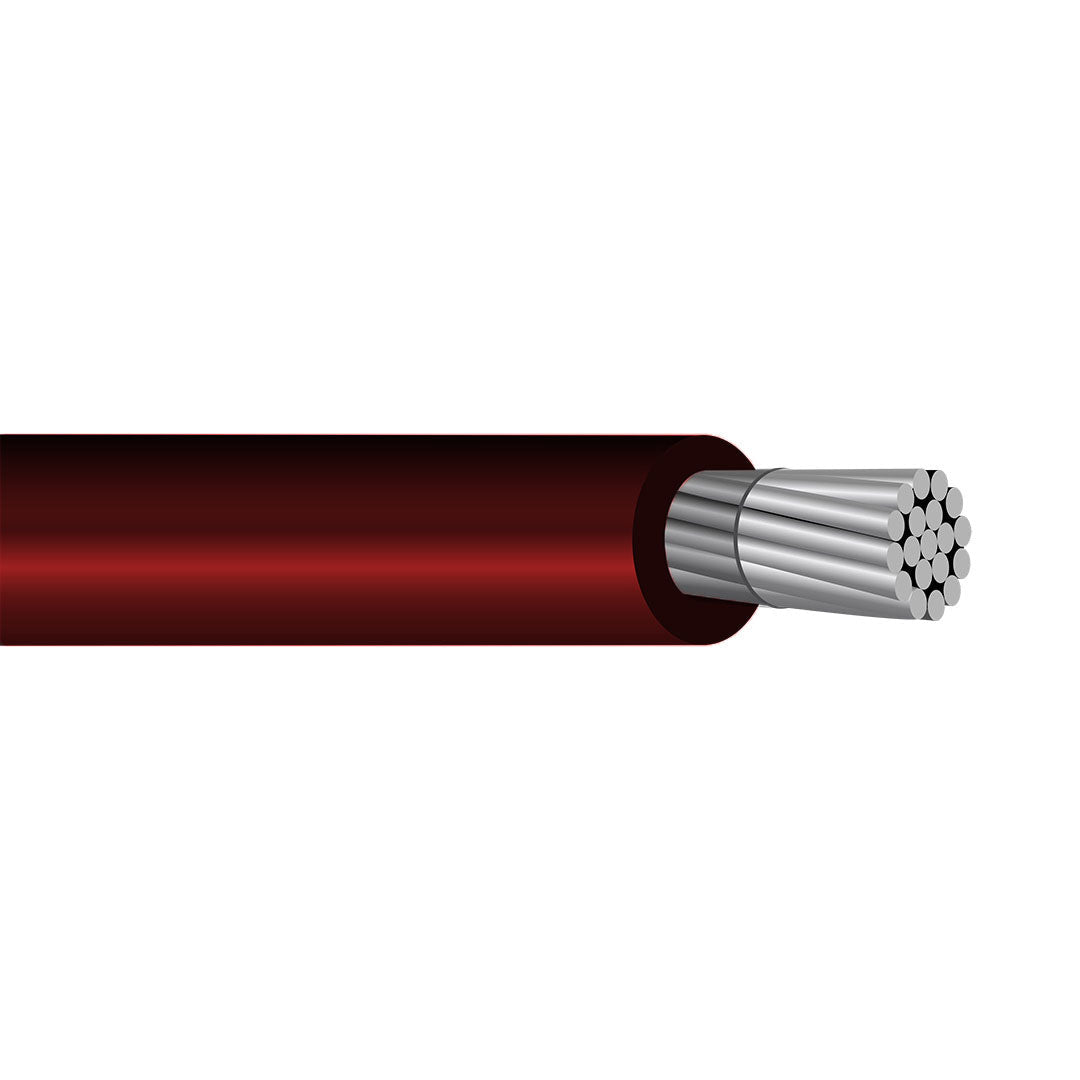

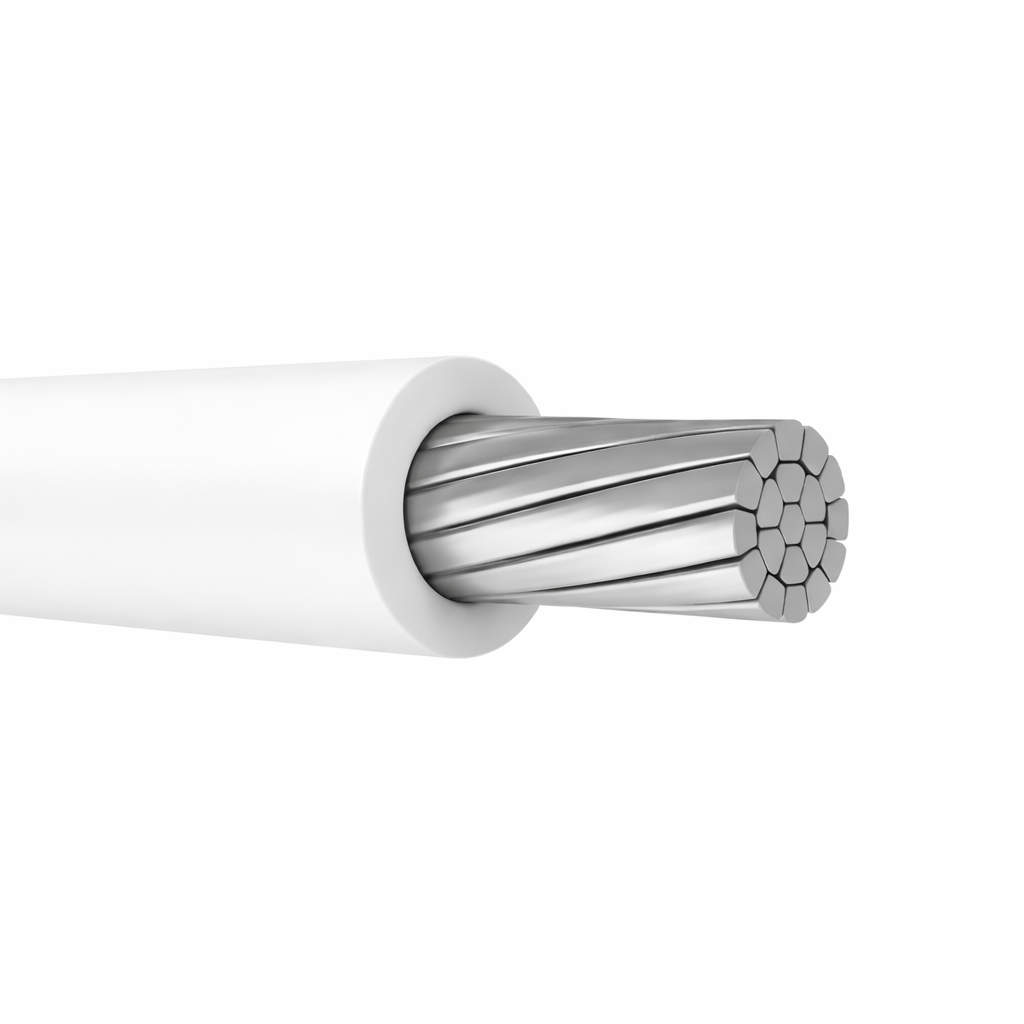

2/0 AWG XHHW-2 Aluminum Cable 600V

2/0 AWG XHHW-2 Aluminum Cable 600V

SKU: NES1778X   Download PDF

Color
Select a gauge:
  • 2/0 AWG XHHW-2 Aluminum Cable 600V
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.02 /FT   Web pricing policy
BEFORE   Now $1.02 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

2/0 aluminum wire, 2 0 wire amps, 2/0 awg aluminum wire, 2/0 xhhw-2 aluminum wire, 2/0 xhhw-2 cable, 2/0 hxxw-2 cable, 2/0 rw90 cable, 2/0 rw90 wire, 2/0 type se cable style u type xhhw-2, 2/0 xhhw-2, 2/0 southwire xhhw-2, 2/0 xhhw-2 insulation.

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Compatible with Manufacturer

Houston item : Black : HW002A20101
Black : 2/0-01XHHWBLACKA
Priority Wire & Cable : Black : 2/0-01XHHW-2-ALUM
Omni Cable item : Black : M82/0ST-01
Blue : M82/0ST-05
Green : M82/0ST-04
Orange : M82/0ST-07
Red : M82/0ST-03
White : M82/0ST-02
Yellow : M82/0ST-08
Brown : M82/0ST-010
Gray : M82/0ST-06
Southwire : Black : 11275501
Blue : 59128999
Green : 58529599
Orange : 58529799
Red : 59128899
White : 59129099
Yellow : 58529899
Brown : 58529699
Gray : 58530099




Resources
Applications
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.

Due to 2/0 awg amp rating, this cable is suitable for following applications:

• Substantial Ampacity Applications
• Service entrance in industrial and commercial buildings
• Feeder circuits
• Sub-Panel distribution
• Large appliances & equipment, such as large
• HVAC units and industrial machines
• Conduit systems
• Motors and industrial machinery
• Renewable energy installations
Features
Standards:

• XHHW-2 meet or exceed the following standards

• UL standard 44

• Requirements of the National Electrical Code.

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Allowable Ampacity for 2/0 AWG XHHW-2 Aluminum Cable 600V at 75°C: 135 Amps

Allowable Ampacity for 2/0 AWG XHHW-2 Aluminum Cable 600V at 90°C: 150 Amps
Specifications
• Size AWG: 2/0

• Stranding: 18

• Conductor Diameter Inches: 0.376

• Insulation Thickness Inches: 0.055

• O.D. Inches:  0.486

• New Weight lb/1000FT: 158 lbs

• Ampacity at 75°C: 135 Amps
