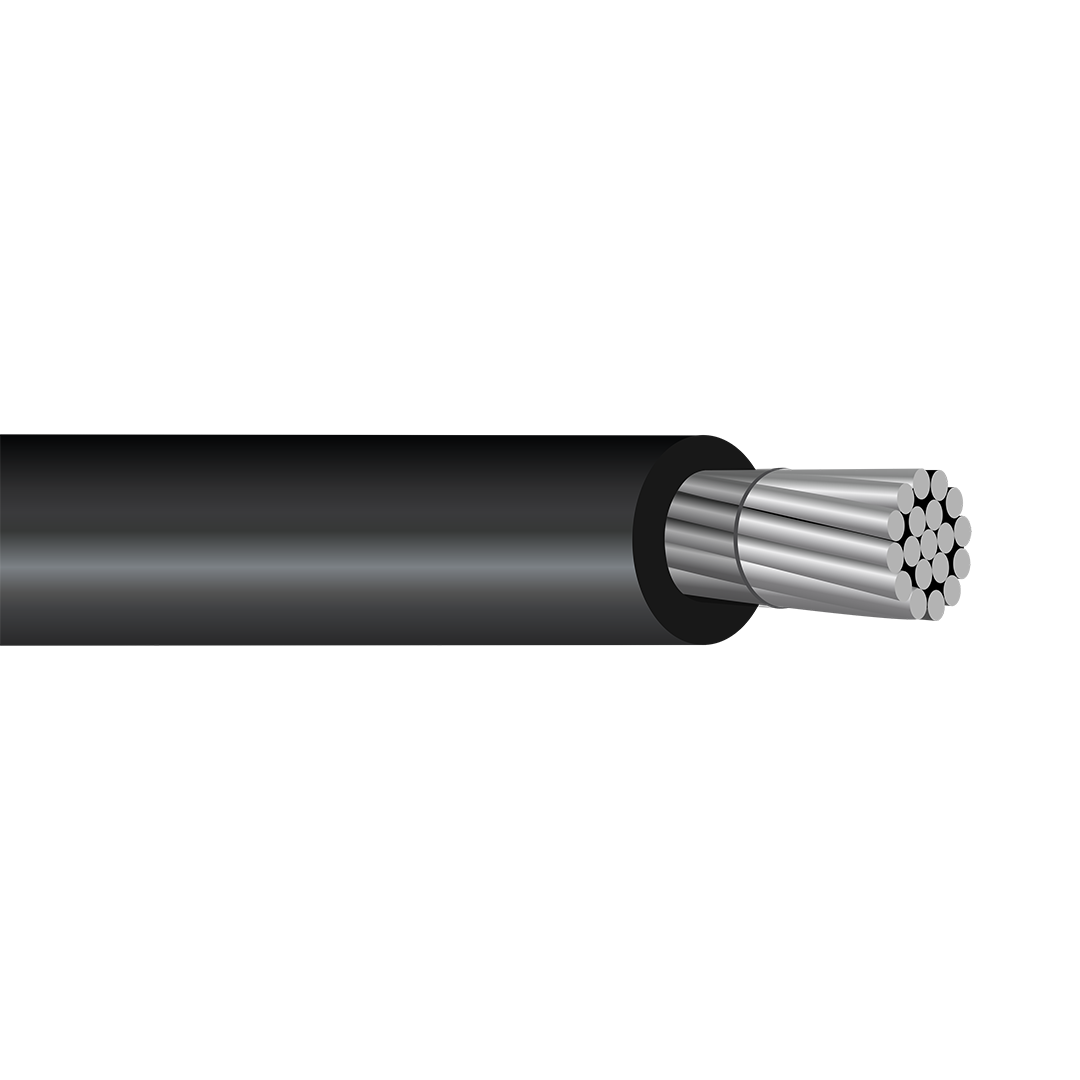

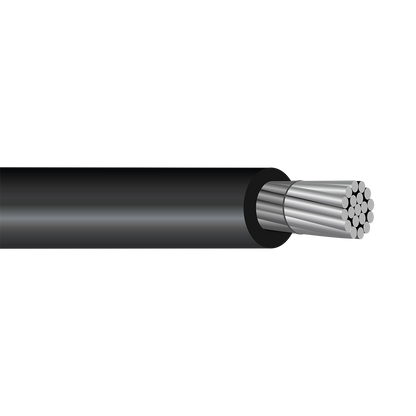

2 AWG XHHW-2 Aluminum Cable 600V

2 AWG XHHW-2 Aluminum Cable 600V

SKU: NNC1751X   Download PDF

Color
Select a gauge:
  • 2 AWG XHHW-2 Aluminum Cable 600V
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.63 /FT   Web pricing policy
BEFORE   Now $0.63 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

2 xhhw-2 cable, 2 hxxw-2 cable, 2 rw90 cable, 2 rw90 wire, 2 type se cable style u type xhhw-2, 2 xhhw-2, 2 southwire xhhw-2, 2 xhhw-2 insulation.

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Compatible with Manufacturer

Houston item : Black : HW002A00201
Black : 2-01XHHWBLACKAL
Priority Wire & Cable : Black : 2-01XHHW-2-ALUM
Omni Cable item : Black : M802ST-01

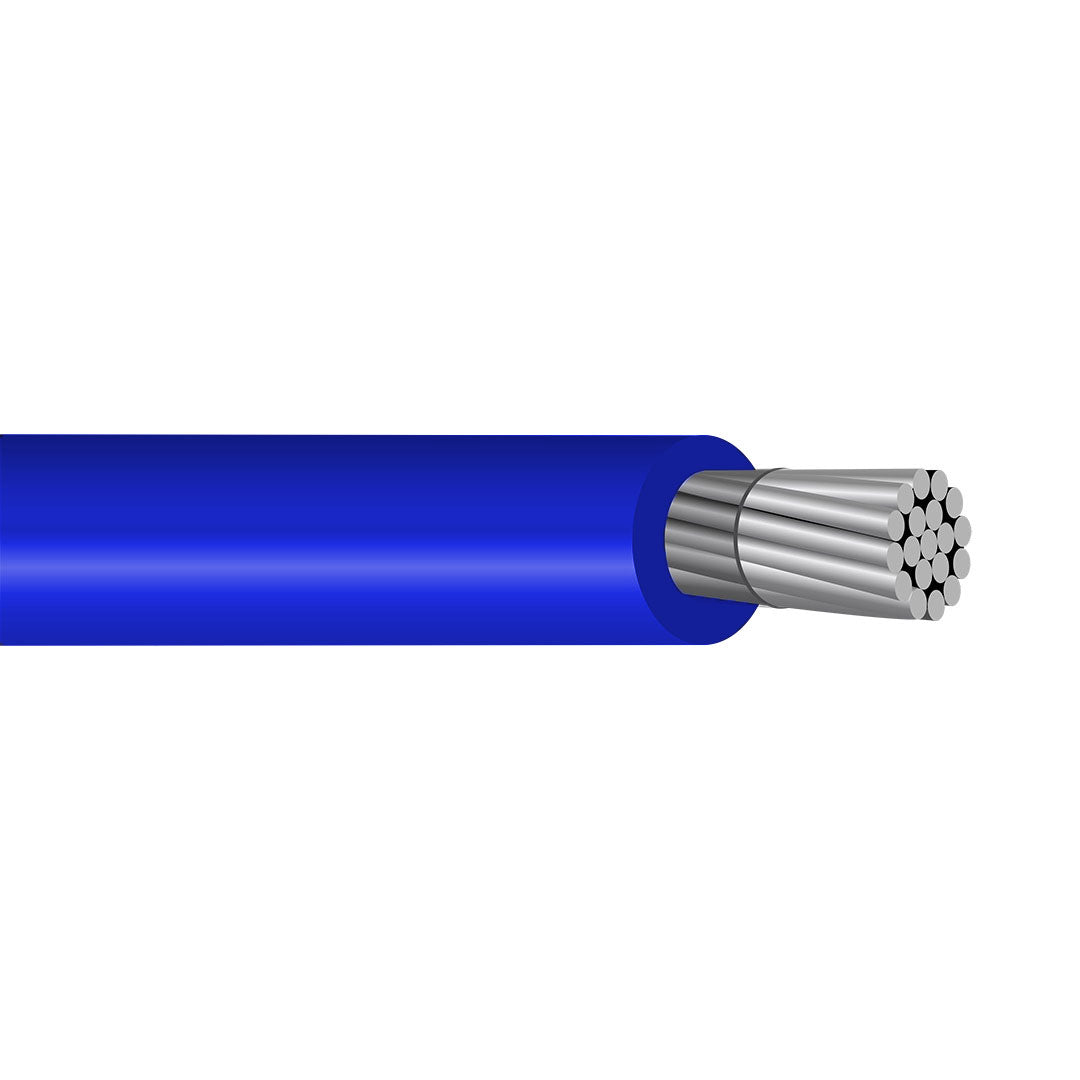

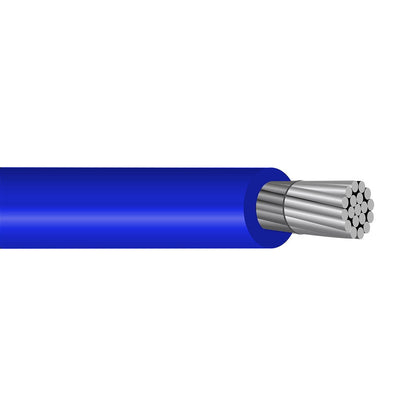

Blue : M802ST-05

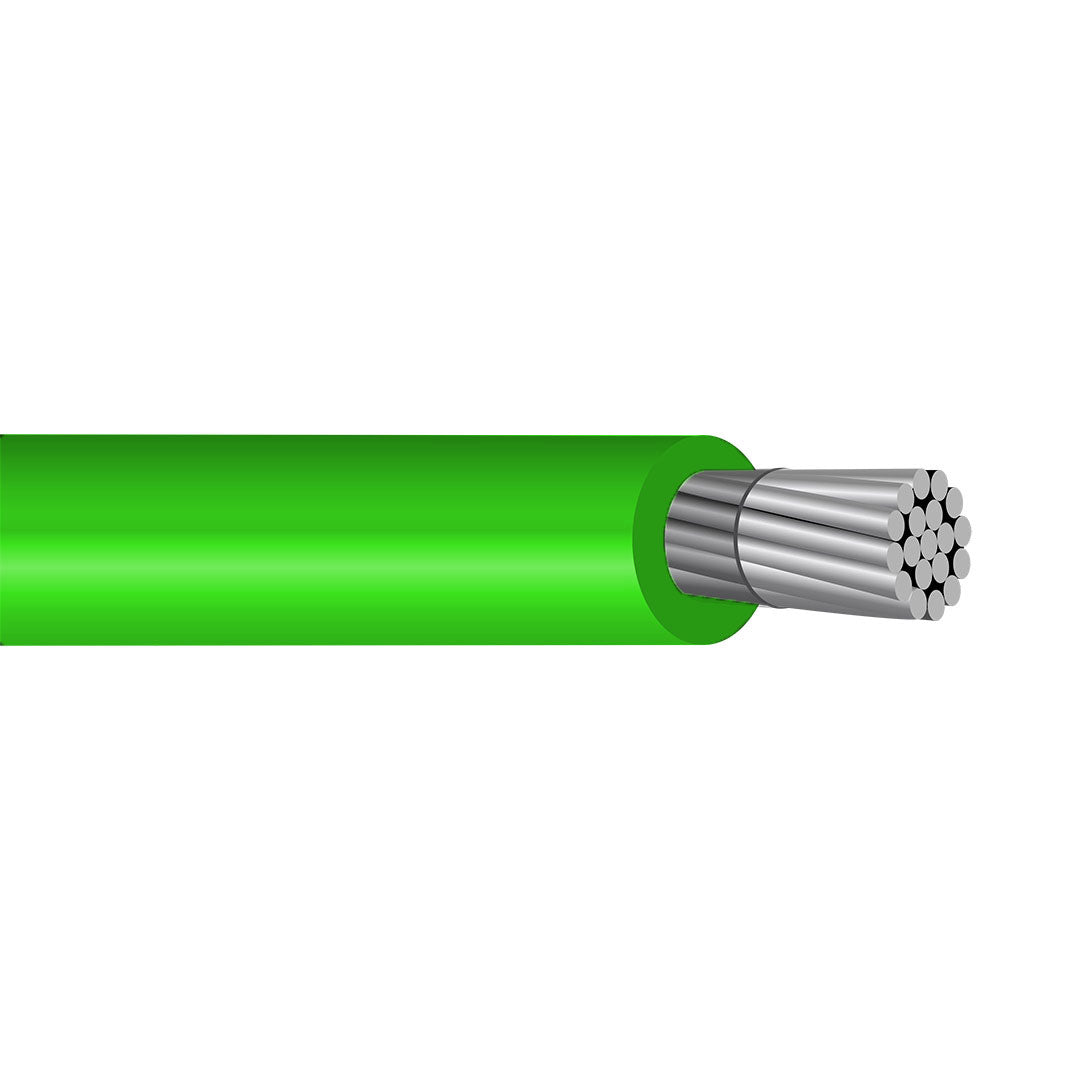

Green : M802ST-04

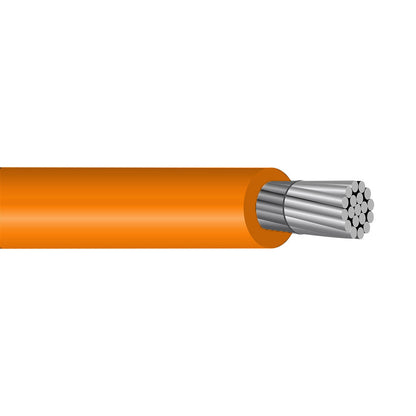

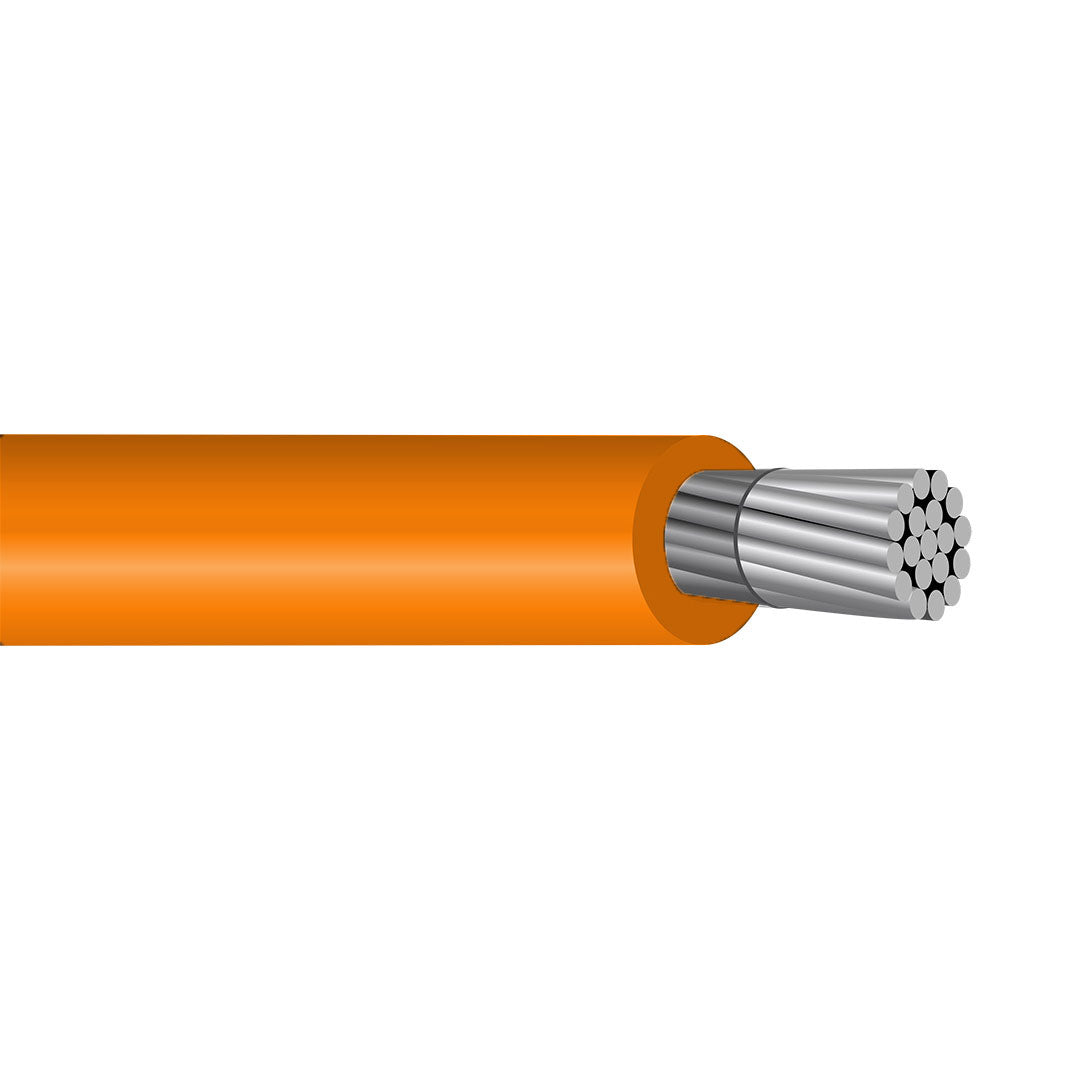

Orange : M802ST-07

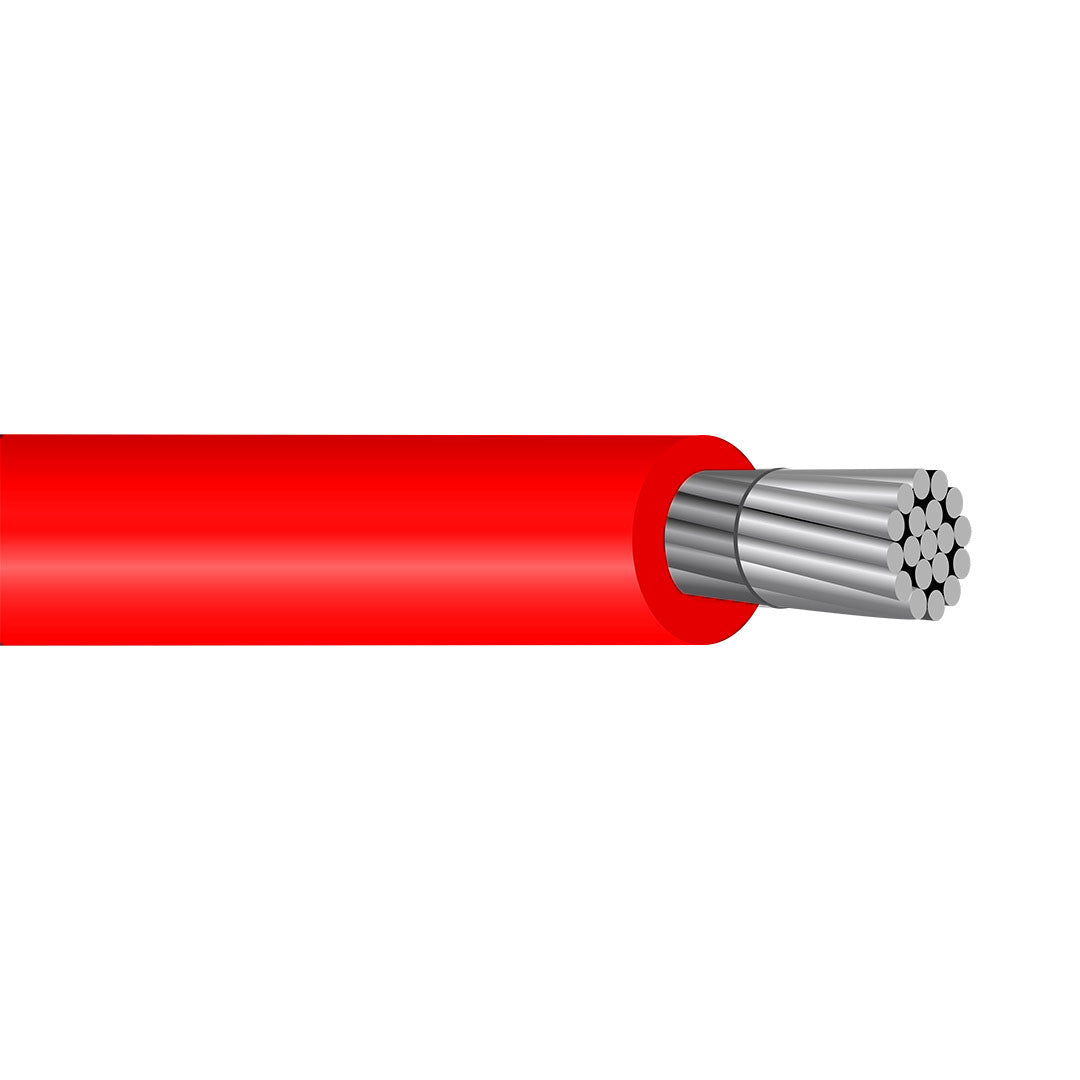

Red : M802ST-03

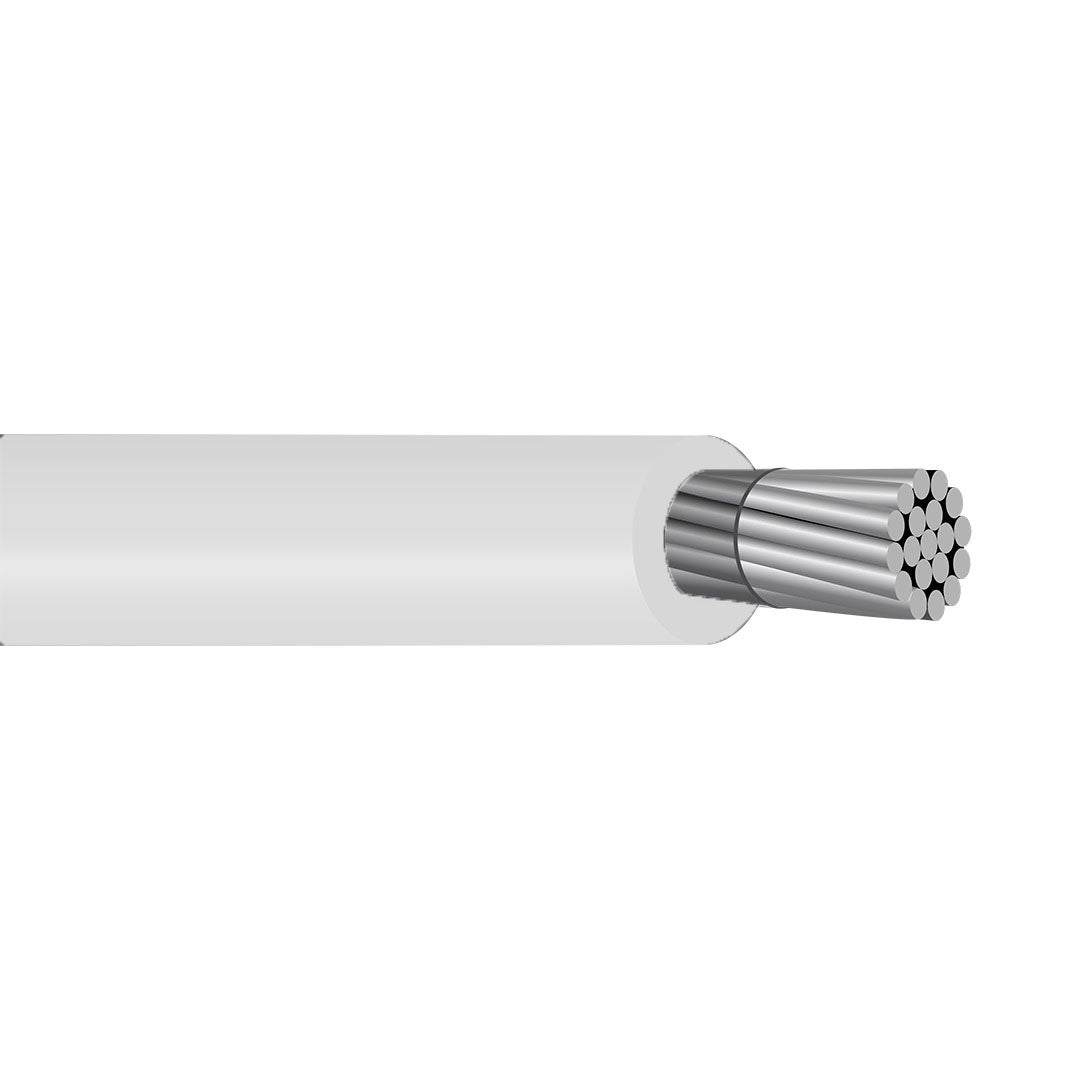

White : M802ST-02

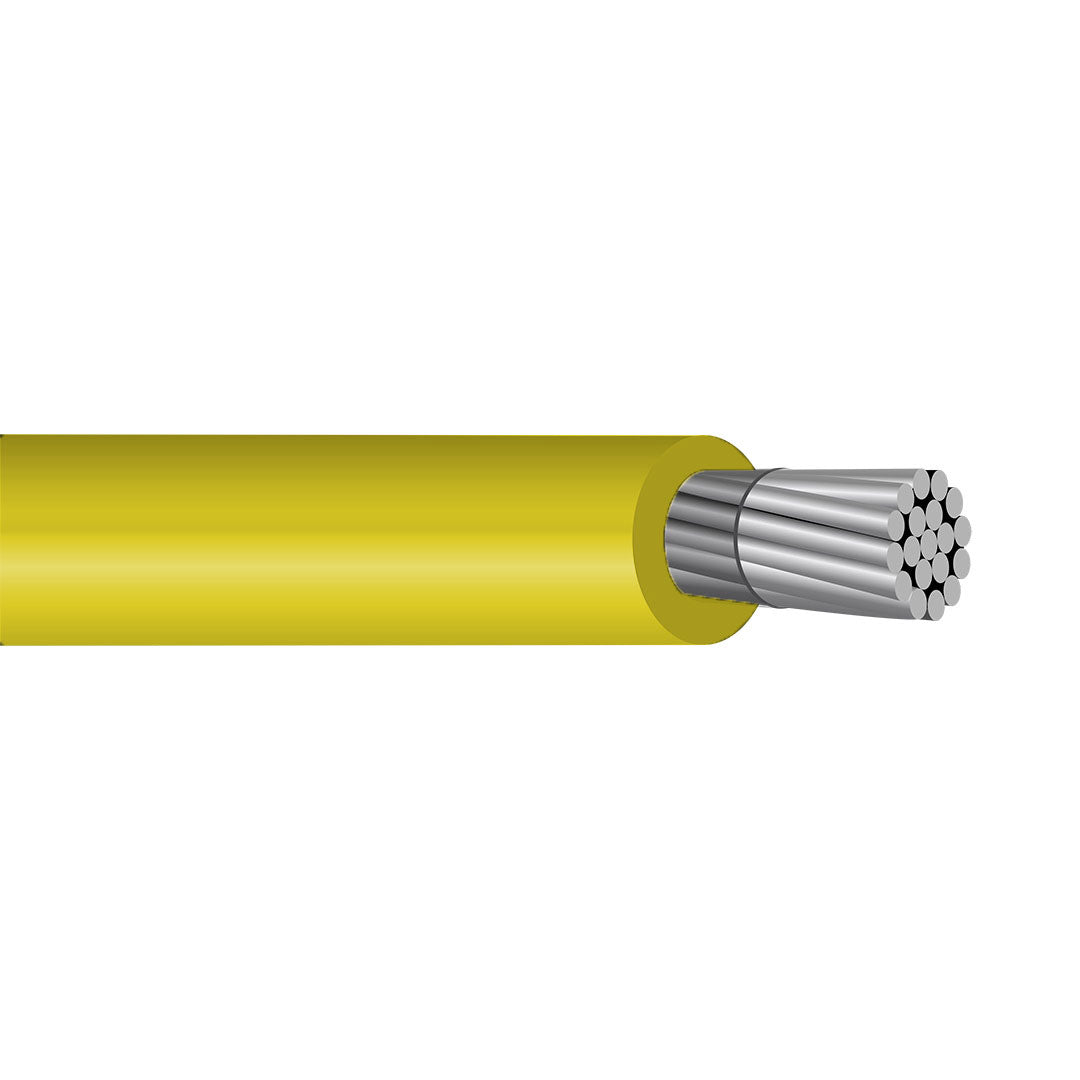

Yellow : M802ST-08

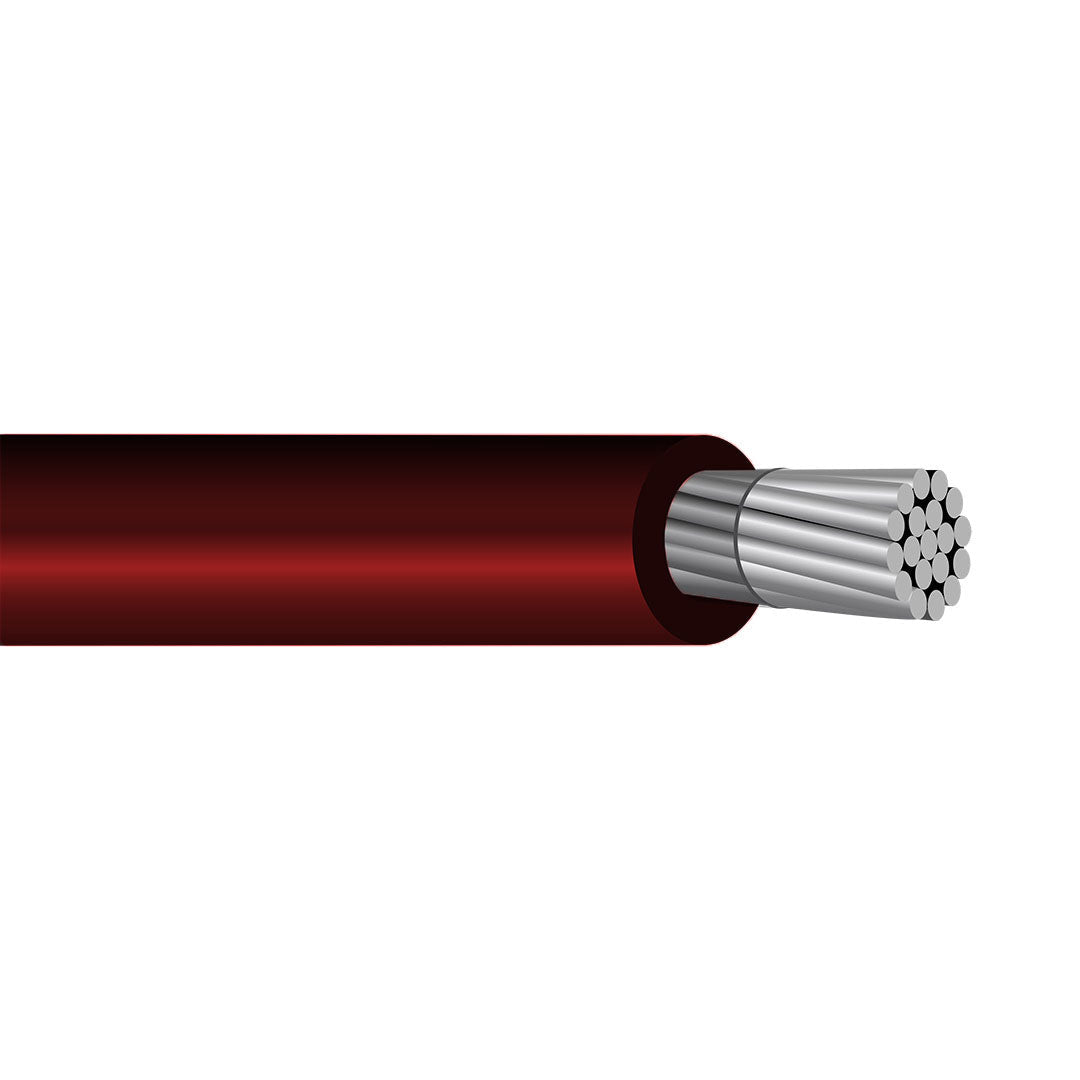

Brown : M802ST-010

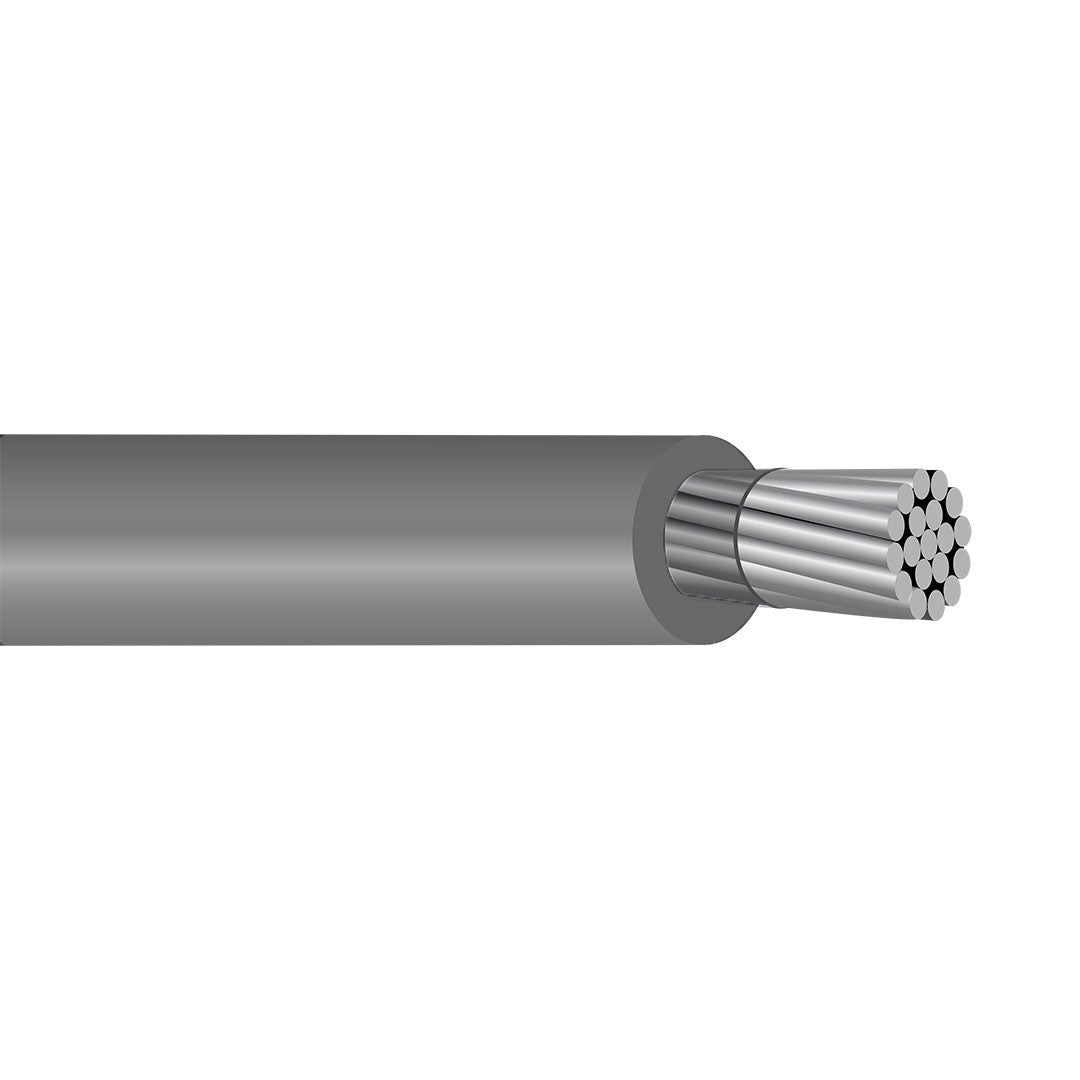

Gray : M802ST-06
Southwire : Black : 11272201
Blue : 64362199
Green : 58531999
Orange : 59121499
Red : 64362099
White : 59262199
Yellow : 59121599
Brown : 59121399
Gray : 59805299




Resources
Applications
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.
Features
Standards:

• XHHW-2 meet or exceed the following standards

• UL standard 44

• Requirements of the National Electrical Code.

• ASTM standards B 800, B 801

• Federal Specification J–C-30B

• Sunlight resistant

Allowable Ampacity for 2 AWG XHHW-2 ALUMINUM CABLE 600V at 75°C: 90 Amps

Allowable Ampacity for 2 AWG XHHW-2 ALUMINUM CABLE 600V at 90°C: 100 Amps
Specifications
• Size AWG: 2

• Stranding: 7

• Conductor Diameter Inches: 0.268

• Insulation Thickness Inches: 0.045

• O.D. Inches:  0.358

• New Weight lb/1000FT: 82 lbs

• Ampacity at 75°C: 90 Amps

• Ampacity at 90°C: 100 Amps
