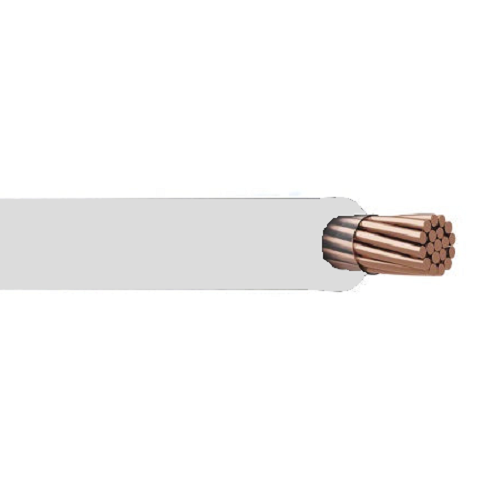

350 MCM XHHW-2 Copper Building Wire

350 MCM XHHW-2 Copper Building Wire

SKU:   Download PDF

Color
Select a gauge:
  • 350 MCM XHHW-2 Copper Building Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $12.64 /FT   Web pricing policy
BEFORE   Now $12.64 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

350 XHHW-2 Copper Building Wire, 350 XHHW Cable, 350  XHHW Service Wire, 350 XHHW Copper Wire.

Conductor:

The cable has an annealed bare copper conductor (solid or concentrically stranded). The conductor has excellent electrical conductivity and excellent resistance to moisture. The conductor also has excellent resistance to compression, pressure, and heat.

Insulation:

The cable is insulated with a cross-linked polyethylene jacket (XLPE) that serves as a protective armor to the conductors. It is flame-retardant and resistant to abrasion, corrosion, moisture, dryness, chemicals, and heat.

Compatible with Manufacturer

Advanced Digital :

20350CT

Omni Cable :

Black : M7350ST-01
White : M7350ST-02
Red : M7350ST-03
Green : M7350ST-04
Blue : M7350ST-05
Gray : M7350ST-06
Orange : M7350ST-07
Yellow : M7350ST-08
Purple : M7350ST-09
Brown : M7350ST-10
Pink : M7350ST-11
Tan : M7350ST-12

Southwire :

Black : 11306801
White : 55390299
Red : 55390399
Blue : 55390499
Green : 55390599
Yellow : 55390805
Orange : 55390705
Brown : 55390605
Gray : 55391005

HWC :

HW00240001

Service Wire Co :

XH350BK
Resources
Applications
XHHW is a multi-purpose electrical wire with cross-linked high heat water-resistant insulation. The most common applications include raceways for branch circuit wiring, conduits, services, and feeders. It is also used as a building wire. XHHW is suitable for industrial applications due to its toughness and excellent resistance to chemicals. The electrical wire is suitable for temperatures up to 90°C, with a voltage rating of 600 volts.
Features
Standards:

•Ul Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
•For use in interior wiring in wet, dry or corrosive locations under-recognized wiring methods of the National Electrical Code (NEC)
•Acceptable to be installed as a Non-Metallic Sheathed Cable following NEC Article 339-3 (4)
•Acceptable for use per NEC Articles 300-4(b) and 339
•ASTM - B3 and B-8
•UL Standard 83
•Federal Specification A-A-59544
•RoHS/ REACH

•Allowable Ampacity for 350 MCM XHHW-2 Copper Building Wire in Duct: 280
Specifications
•Size AWG: 350
•Weight per 1,000 ft: 1155 lbs
•Outside Diameter: 0.800 inches
•Number of Strands: 37
•Jacket: XLPE
•Insulation Thickness: 65 mils
