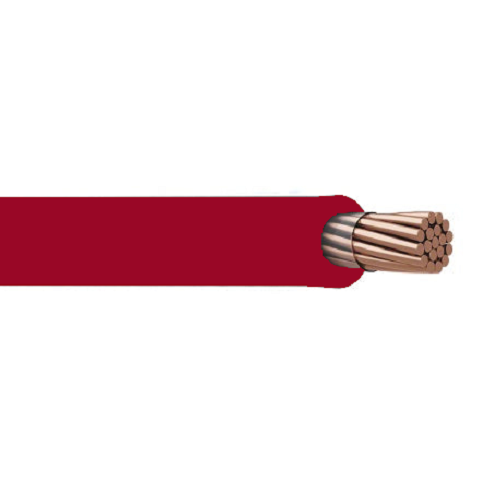

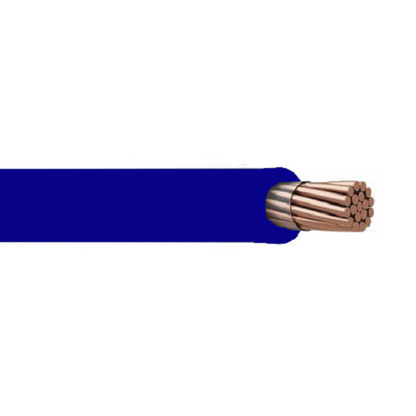

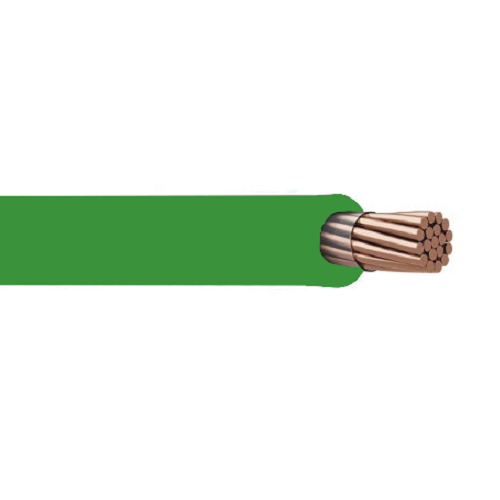

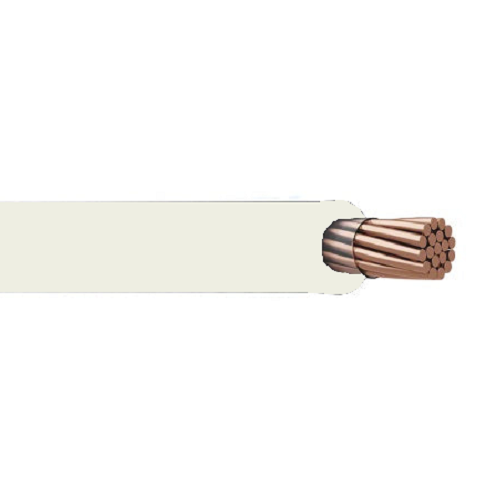

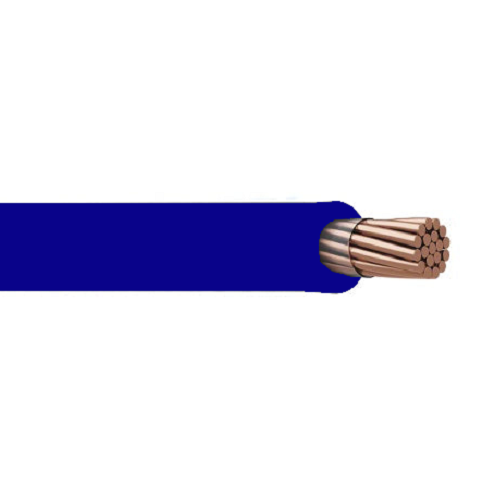

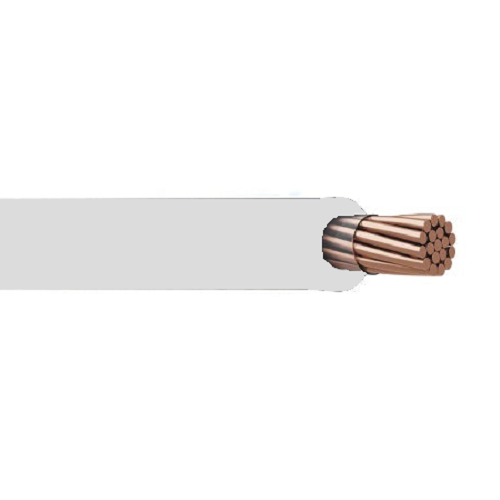

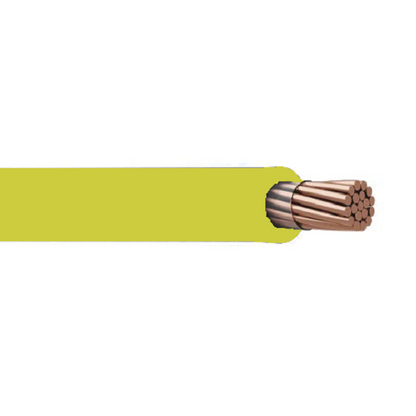

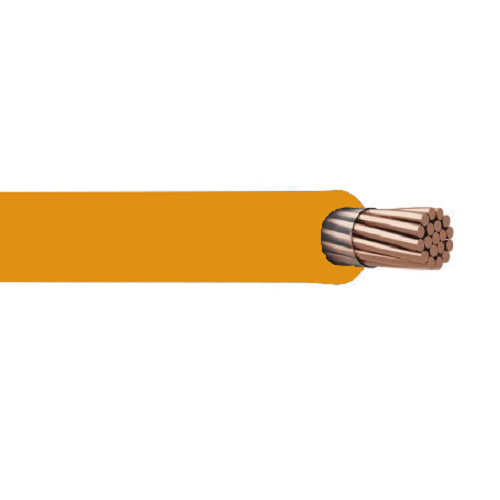

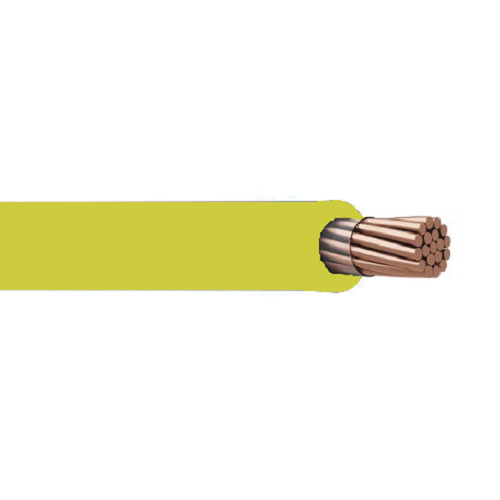

750 MCM XHHW-2 Copper Building Wire

750 MCM XHHW-2 Copper Building Wire

SKU:   Download PDF

Color
Select a gauge:
  • 750 MCM XHHW-2 Copper Building Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $29.23 /FT   Web pricing policy
BEFORE   Now $29.23 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

750 XHHW-2 Copper Building Wire, 750 XHHW Cable, 750 XHHW Service Wire, 750 XHHW Copper Wire.

Conductor:

The cable has an annealed bare copper conductor (solid or concentrically stranded). The conductor has excellent electrical conductivity and excellent resistance to moisture. The conductor also has excellent resistance to compression, pressure, and heat.

Insulation:

The cable is insulated with a cross-linked polyethylene jacket (XLPE) that serves as a protective armor to the conductors. It is flame-retardant and resistant to abrasion, corrosion, moisture, dryness, chemicals, and heat.

Compatible with Manufacturer

Advanced Digital :

20750CT

Omni Cable :

Black : M7750ST-01
White : M7750ST-02
Red : M7750ST-03
Green : M7750ST-04
Blue : M7750ST-05
Gray : M7750ST-06
Orange : M7750ST-07
Yellow : M7750ST-08
Purple : M7750ST-09
Brown : M7750ST-10
Pink : M7750ST-11
Tan : M7750ST-12

Southwire :

Black : 11310099
White : 55392699
Red : 55392799
Blue : 55392899
Green : 55392999
Yellow : 55393205
Orange : 55393105
Brown : 55393005
Gray : 55393405

HWC :

HW00275001

Service Wire Co :

XH750BK
Resources
Applications
XHHW is a multi-purpose electrical wire with cross-linked high heat water-resistant insulation. The most common applications include raceways for branch circuit wiring, conduits, services, and feeders. It is also used as a building wire. XHHW is suitable for industrial applications due to its toughness and excellent resistance to chemicals. The electrical wire is suitable for temperatures up to 90°C, with a voltage rating of 600 volts.
Features
Standards:

•Ul Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
•For use in interior wiring in wet, dry or corrosive locations under-recognized wiring methods of the National Electrical Code (NEC)
•Acceptable to be installed as a Non-Metallic Sheathed Cable following NEC Article 339-3 (4)
•Acceptable for use per NEC Articles 300-4(b) and 339
•ASTM - B3 and B-8
•UL Standard 83
•Federal Specification A-A-59544
•RoHS/ REACH

•Allowable Ampacity for 750 MCM XHHW-2 Copper Building Wire in Duct: 535
Specifications
•Size AWG: 750
•Weight per 1,000 ft: 2445 lbs
•Outside Diameter: 1.140 inches
•Number of Strands: 61
•Jacket: XLPE
•Insulation Thickness: 80 mils
