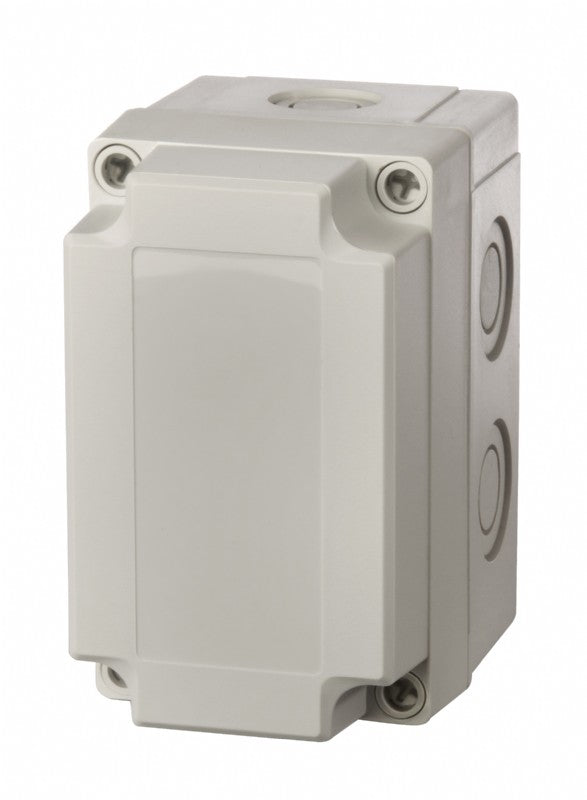

6416302 - UL PCM 100/75 G Polycarbonate Enclosure

6416302 - UL PCM 100/75 G Polycarbonate Enclosure

SKU: UL PCM 100/75 G   Download PDF

Qty:
Now $4,324.00   Web pricing policy
BEFORE   Now $4,324.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

51 x 31 x 3 inch polycarbonate enclosure with gray cover and metric knock-out base It is designed for various applications including UL Type 1, 4, 4x and 6 The enclosure includes a base with PUR gasket, screws for mounting plate/DIN-rail, and a cover with polyamide cover screws.

Features and Benefits:

    •IP66 and IP67 rated for excellent protection against dust and water..

    •Impact resistance is rated at IK08, ensuring durability..

    •Constructed from polycarbonate material for high strength..

    •Includes a polyurethane gasket for better sealing..

Specifications:

 Dimensions (inch) 5.1 x 3.1 x 3
 Dimensions (mm) 130 x 80 x 75
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F) -40 to 175
 Temperature (°C) -40 to 80
 UL/cUL Type 1, 4, 4x and 6
 Ingress Protection IP66, IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
