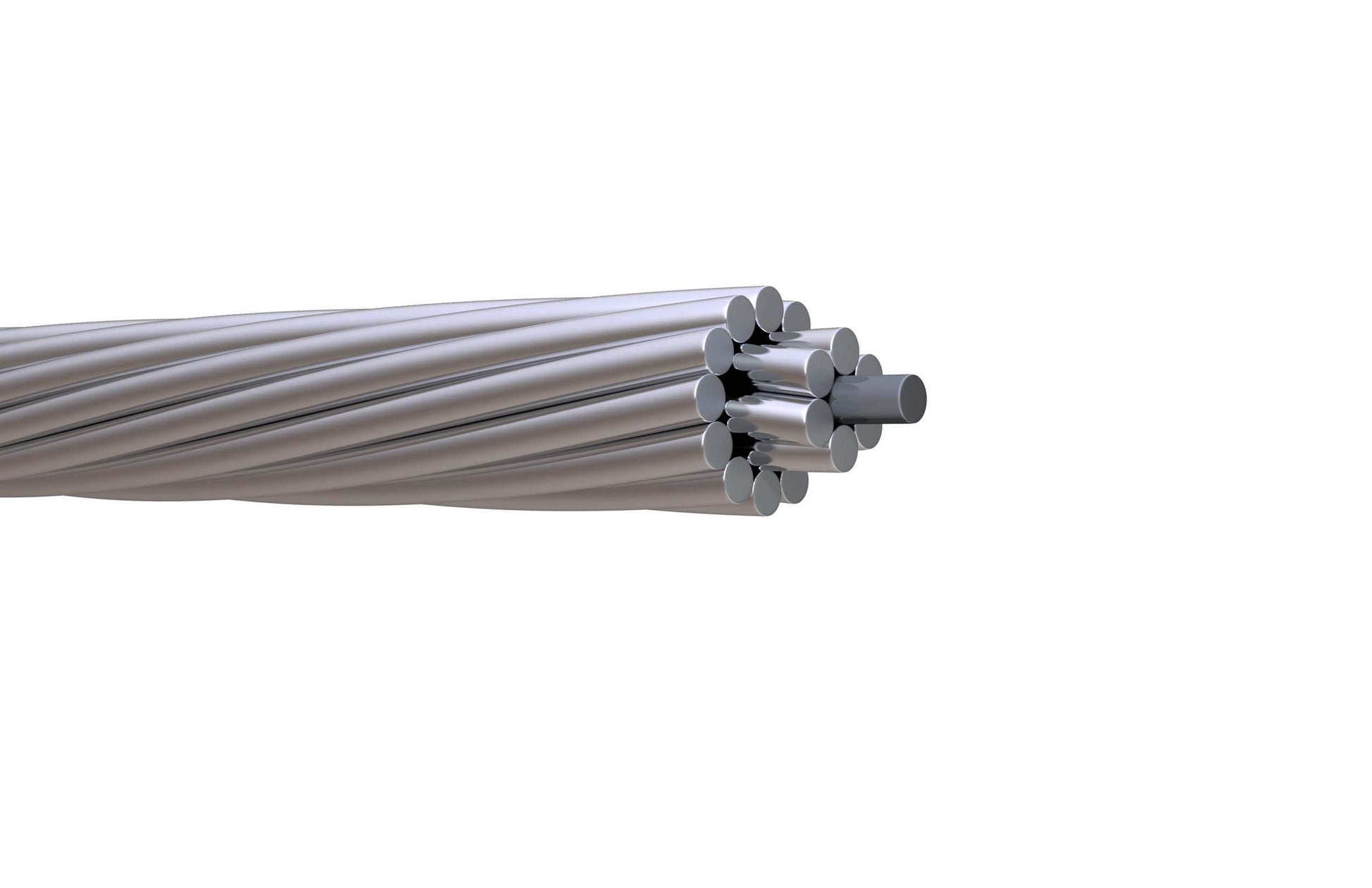

Butte 312.8 AAAC All Aluminum Alloy 6201 Conductor

SKU: SKU: NNC1234-8 Download PDF

Select a gauge:

Butte 312.8 AAAC All Aluminum Alloy 6201 Conductor

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Sold out

Shipping calculated at checkout.

Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

312.8 butte all aluminum alloy conductor, 312.8 butte cable aaac, 312.8 butte aluminum alloy cable, 312.8 butte abrasive resistant cable, 312.8 butte electric meter wiring, 312.8 butte transmission overhead, 312.8 butte burying electric cable, 312.8 butte utility pole ground wire, 312.8 butte overhead power line components.

Conductors:

Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentric-lay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

Resources

Applications

AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.

Features

Standards:

• ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire
for Electrical Purposes

• ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors

• Requirements of the

• National Electrical Code

• RUS accepted

Allowable Ampacity for 312.8 Butte AAAC: 460 Amps

Specifications

• Size KCM: 312.8

• Stranding: 19

• Approx. EC Cond. with Equivalent Resistance: 266.8

• Diameter Inches: Indiv. Wire O.D: 0.1283

• Diameter Inches: Comp. Cable: 0.6420

• Cross Sectional Area (sq. inches): 0.2456

• New Weight lb/1000FT: 293.6

• Rated Strength (lbs.): 10,500

• Ampacity: 460 Amps
